Specificatii:



Analogue Inputs - 2x RCA Stereo (A1, A2);

                            1x Balanced XLR (A3);

Digital Inputs - 2x Coax (D1, D2);

                        2x Optical (D3, D4);

                        Bluetooth Audio;

                        BluOS;

                        HDMI eARC;

Analogue Outputs - 1x Balanced XLR (Pre1);

                                1x RCA Stereo (Pre2);

                                1x RCA Stereo (Pre3);

Amplifier Output - 1x Pair of Speaker binding posts (L&R);

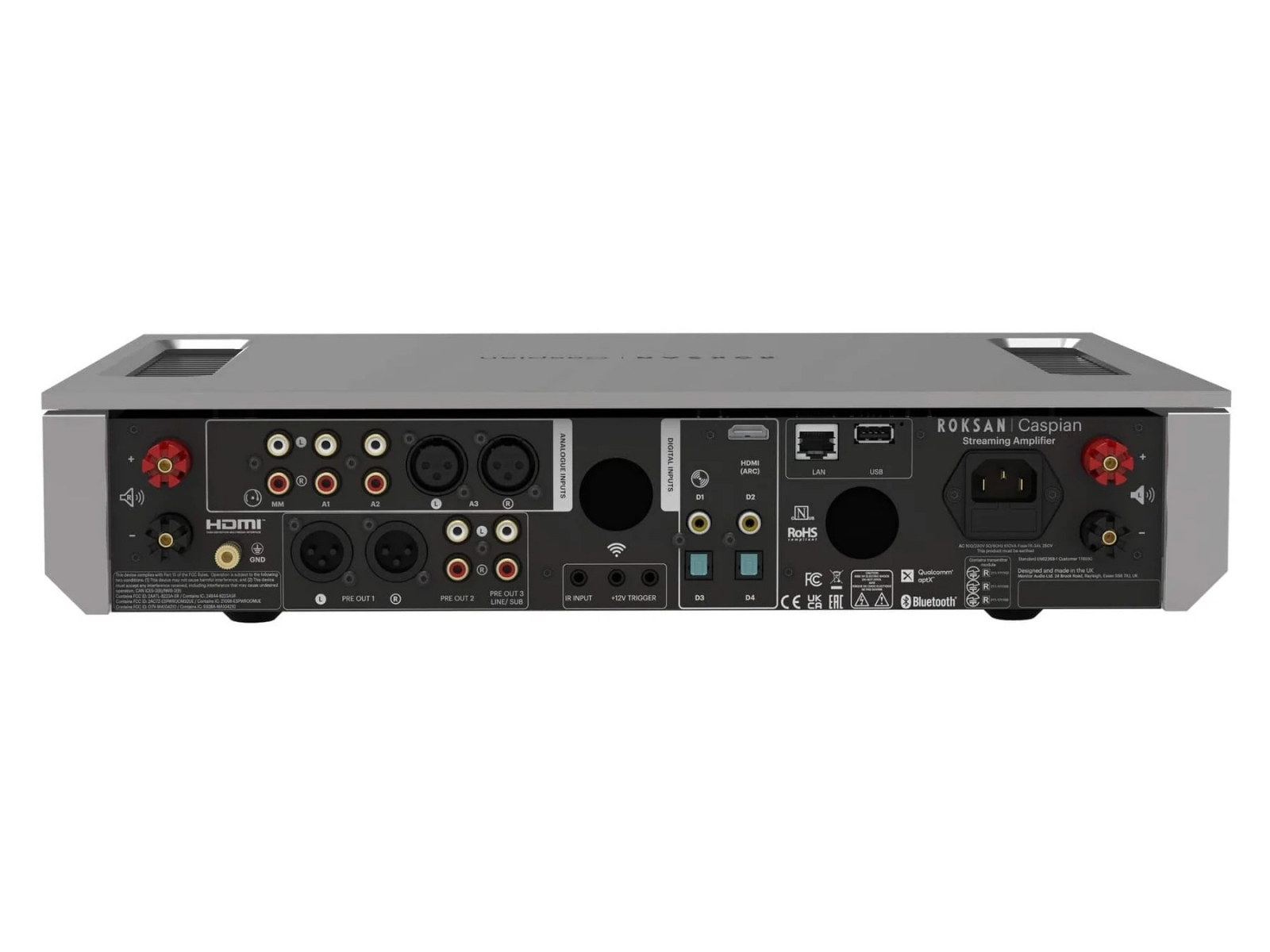

Other Inputs / Outputs - Gigabit Ethernet RJ45, W-Fi 5, Wi-Fi 4, BLE, 12V Trigger, Wired IR;

Power - IEC C14, Fused 6.2AT;

Primary Interface (on unit) - Dynamic Control Dial (with haptic feedback) to control volume, inputs & power;

Secondary Interface (on unit) - Backward, Play/Pause, Forward;

Remote Control - Black, 15 button IR remote. Bead blasted & anodised aluminium extruded case with laser etched logo;

Power Amplifier Technology – Dual Mono Euphoria Amplifier;

Amplifier Class – AB;

Output Power, 8 0hms (235VAC @ 1% THD, both channels driven) 105W;

Output Power, 4 0hms (235VAC @ 1% THD, both channels driven) 200W;

THD+N (1W @ 1kHz Both Channels driven) <0.007%;

Gain - 29dB;

Signal to Noise (1W/8R 2Vrms A1, both channels driven) >85dB;

Gain Matching <0.5dB;

Frequency Linearity (20Hz - 20kHz) +-0.25dB;

Power Supply 600VA / 36,400uF per Rail;

Inputs  – MM;

Gain MM — 53dB;

Gain Adjustment MM Low (-6dB), Mid (0dB default), High (+6dB);

Input Impedance MM 47k ohms/100pF;

RIAA response accuracy MM +-0.3dB 20Hz - 20kHz;

DAC Technology Rapture DAC, Dual Mono Balanced;

Format Support – PCM;

Sampling Rate up to 24bit / 192kHz;

Volume Control Technology Hybrid Digital Analogue;

Volume Control Matching;

THD+N (3.9Vrms, A-Weighted) <0.0008%;

Signal to Noise Ratio (3.9Vrms, A-Weighted) >108dB;

Maximum Output Level 3.9Vrms;

Supported Features Pre-Output, Line Level Output (Fixed Level), Sub-Woofer Output (Low-Pass Filtered), Intelligent DSP;

Protocol A2DP Audio Profile;

Codecs SBC, aptX & AAC;

Range >15m;

Coax Inputs (D1, D2) up to 24bit / 192kHz (Stereo);

Optical Inputs (D3, D4) up to 24bit / 192kHz (Stereo);

HDMI ARC & eARC – Yes (2.0);

Maximum Input Level 6.7Vrms;

Music Sense A2 Input;

AV Mode A2 Input;

BluOS Streaming Supported – YES;

Audio Formats – MP3, AAC, WMA, OGG, WMA-L ALAC, OPUS;

Hi-Resolution Audio Formats – MQA, FLAC, WAV AIFF, Supports converted DSD playback via the desktop app only;

Sampling Rate - up to 192kHz;

Bit Depth - 16 - 24;

Network Connectivity - “Gigabit Ethernet RJ45, W-Fi 5”;

Supported Network File Storage Protocol  - Server Message Block (SMB);

USB - 1x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals;

Supported Operating System - Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions;

Mobile Application - Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops;

Supported music services and partners - Over 20 natively integrated streaming services. For more information go to https://bluos.io/;

Third Party Certified Services - Apple Airplay, Spotify Connect, Tidal Connect;

ROON Ready - TBC;

Control Integrations - Creston, Control4 (OS3), Control4 (OS2), RTI, URC, BluOS URC Driver, URC, Lutron, NICE, GIRA, BluOS; Integration Utility, BluOS Cusomt Integration API;

Maestrounite Supported – Yes;

Network Connectivity Bluetooth LE Wi-Fi 4 (Only connects for Over-the-Air Updates);

Mobile Application iOS, Android;

Over-the-Air Updates - Firmware Updates are avalible via the Maestrounite configured Wi-Fi connection. This can be setup to connect & update on user request or during periods of inactivity;

Wired IR Input 5 - 14V, Mono 3.5mm jack plug, any polarity;

12V Trigger Input - 5 - 14V, 3.5mm jack dual polarity (On / Standby);

12V Trigger Pass-through - 3.5mm jack Pass through from input only;

Nominal Mains Voltage - Auto-Selecting Power Supply, 100-120VAC & 220-240 VAC;

Power Consumption - Max 610VA, Standby 0.5W, Network Standby 2W (Standby Plus, allows fast boot);

External Dimensions with all accessories fitted (H x W x D) - 93 x 432 x 378mm;

Weight (Product, Each) - 15.5 kg.
