WiiM Ultra stabilește un nou punct de referință în lumea streamerelor audio, datorită unui design conceput pentru a oferi o experiență audio de neegalat. Vă permite să vă bucurați de biblioteca de muzică și de serviciile de streaming preferate într-un mod perfect intuitiv, datorită în special unui ecran tactil color de 3,5" și unui buton de navigare fizic. Cu conectivitate extinsă, inclusiv WiFi și Bluetooth, vă puteți accesa muzica rapid și ușor, indiferent dacă este stocat pe un NAS, computer, smartphone sau printr-un serviciu de streaming Mai mult decât atât, WiiM Ultra se mândrește cu o selecție bogată de intrări și ieșiri audio pentru a se integra cu ușurință în marea majoritate a setup-urilor audio.
Garantie: 24 luni
Durata de livrare: 24 - 48 ore
- Descriere
- Caracteristici
- Review-uri (4)
The WiiM Ultra sets a new benchmark in the world of audio streamers, thanks to a design conceived to deliver an unrivalled audio experience. It lets you enjoy your music library and favorite streaming services in a perfectly intuitive way, thanks in particular to a 3.5" color touchscreen and physical navigation button. With its extensive connectivity including WiFi and Bluetooth, you can access your music quickly and easily, whether it's stored on a NAS, computer, smartphone or via a streaming service. What's more, the WiiM Ultra boasts a rich selection of audio inputs and outputs to integrate easily into the vast majority of audio setups.
Key features:
- ESS ES9038Q2M 32bit 384kHz DAC and TPA6120A2 high-fidelity headphone amplifier
- WiFi 6E and Bluetooth 5.3 with dual antennas for incomparable audio streaming quality
- Elegant aluminum chassis. 3.5" color touchscreen
- Built-in room correction, taking precise acoustic measurements of your room to apply settings perfectly optimized for your system and configuration
- Stream Hi-Res music with bit-perfect digital output or high-fidelity analog output (SNR > 120dB, THD+N < 0.00018%)
- Numerous audio streaming options, including Spotify Connect, TIDAl, Google Chromecast Audio (CastLite), Alexa, DLNA, Roon (certification pending) and Squeezelite
- Gapless playback of Hi-Res streams up to 24bit 192kHz via USB, optical, coaxial, RCA or headphone output
High-quality sound
Incorporating a digital-to-analog conversion stage based on an ESS ES9038Q2M DAC chip, the WiiM Ultra is capable of supporting high-resolution PCM streams up to 32bit 384kHz, while offering rich, precise and transparent sound reproduction. The device also features a headphone amplifier, using a TPA6120A2 chip, opening up the possibility of headphone listening.
Extensive wireless connectivity
With support for WiFi 6E and Bluetooth 5.3, the WiiM Ultra opens the door to foolproof audio streaming. What's more, this streamer is compatible with numerous transmission protocols: Spotify Connect, TIDAL Connect, AirPlay 2, Google Chromecast Audio (CastLite), Alexa, DLNA, Roon (currently being certified) and Squeezelite. What's more, you'll enjoy bit-perfect, gapless audio streaming.
Integrated room correction technology
The WiiM Ultra's built-in room correction technology actively takes precise acoustic measurements of your room, creating customized corrections perfectly matched to your audio system and environment.

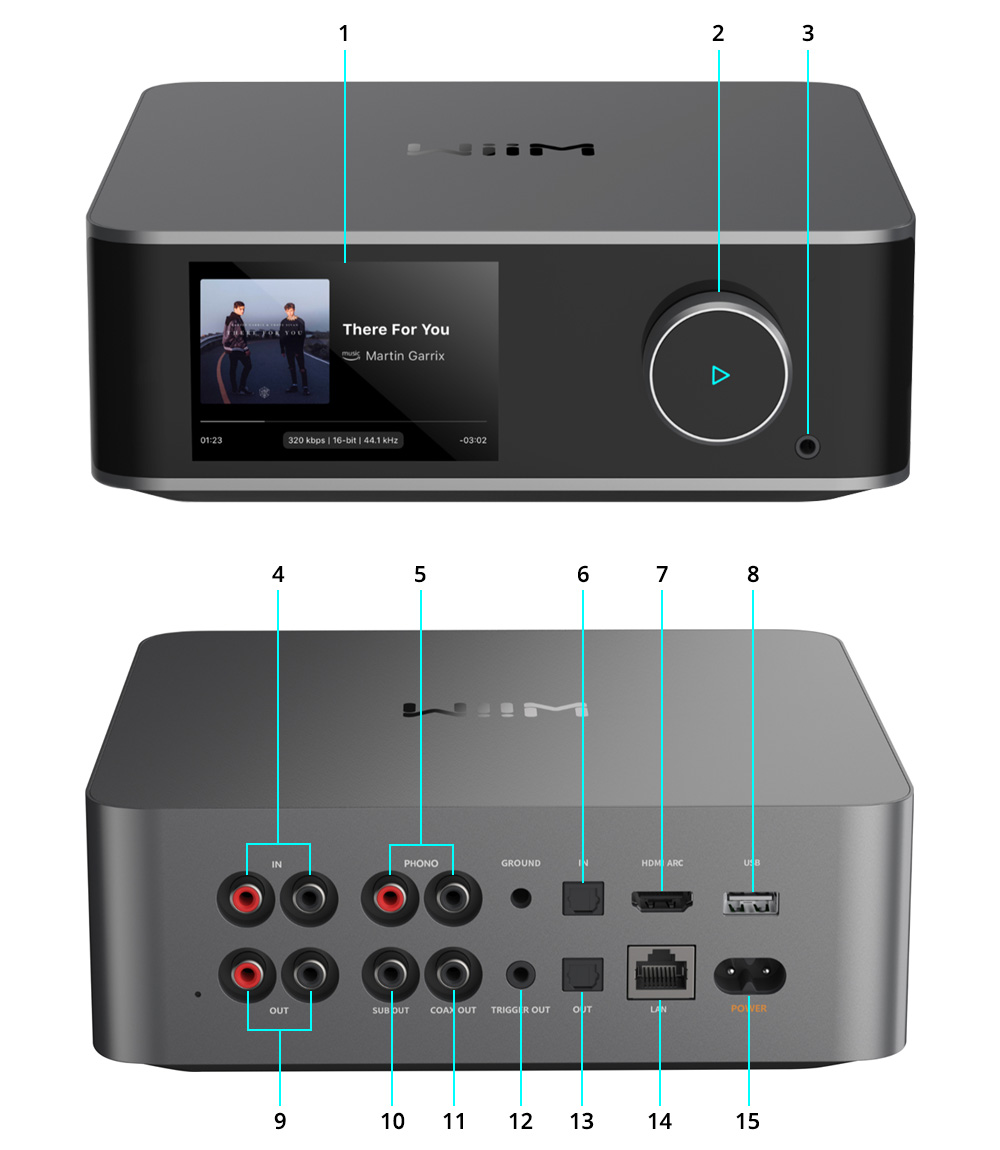

| 1 | Screen |
| 2 | Multifunction knob |
| 3 | Jack 3.5mm headphone output |
| 4 | Stereo RCA input |
| 5 | Phono RCA input |
| 6 | Optical Toslink input |
| 7 | HDMI ARC port |
| 8 | USB-A port |
| 9 | Stereo RCA output |
| 10 | Subwoofer output |
| 11 | Coaxial output |
| 12 | 12V Trigger output |
| 13 | Optical Toslink output |
| 14 | Ethernet RJ45 port |
| 15 | Power connector |
Specificatii:
Product type
Audio streamer
Inputs
1x Stereo RCA
1x Phono input (RCA)
1x Optical Toslink
1x HDMI ARC
1x USB-A
1x Ethernet RJ45
Outputs
1x Stereo RCA
1x Coaxial
1x Optical Toslink
1x Subwoofer output (RCA)
1x Jack 3.5mm headphone output
Connectivity
WiFi 6E 802.11 g/b/n/ax 2.4GHz, 5GHz, 6GHz
Ethernet 10M/100Mbps
Bluetooth 5.3
DAC chip
ES9038Q2M
Bluetooth version
Bluetooth 5.3 BLE / BT LE Audio
A2DP, AVRCP, HID receiver and transmitter support
Works with WiiM voice control
Supported sampling rates
Input: PCM up to 32bit 384kHz
Output: PCM up to 24bit 192kHz
Supported Bluetooth codecs
SBC, AAC
Max output level (line out)
2.1Vrms
SNR (line out)
121dB(A)
THD+N (line out) (1kHz)
0.00018% (-115dqB) from 44.1kHz to 192kHz
FR curve
±0.05dB
USB transmission mode
Asynchronous
USB compatibility
Windows 7 / 8 / 8.1 / 10 / 11 (driver required)
Mac OSX10.6+
Linux
EQ
Graphic 10 bands
Parametric 10 bands
Independent for each source
Subwoofer output
Bass management
Adjustable latency, phase, level and filter
Trigger
Output (12V)
Touchscreen
3.5"
Supply voltage
100-240VAC
Dimensions
205 x 205 x 73mm
Housing material
Aluminum
Color
Gray
Package
1x Wiim ULTRA
1x Power cable C7
