1" cloth dome tweeter with newly designed waveguide for smooth, accurate highs and extended high-frequency response
6-1/2" aramid fiber woofer with cast chassis for tight, clean bass and midrange
frequency response: 44-35,000 Hz
sensitivity: 86 dB
high-current amplification from a quality power amp or integrated amplifier is recommended for best performance
impedance: 6 ohms
recommended amplifier power: up to 120 watts
custom multi-element crossover with high-grade
components to ensure smooth transition between drivers
5-way binding post speaker terminals
bass-reflex (ported) cabinet with front-firing port for flexible placement against a wall or bookshelf
slotted vent design reduces port noise and improves bass extension compared to traditional port designs
cabinet walls are internally braced for reduced resonance and improved stability
walnut vinyl finish with black baffle
removable magnetic cloth grille
2 boxe de raft
Instrucțiuni de utilizare

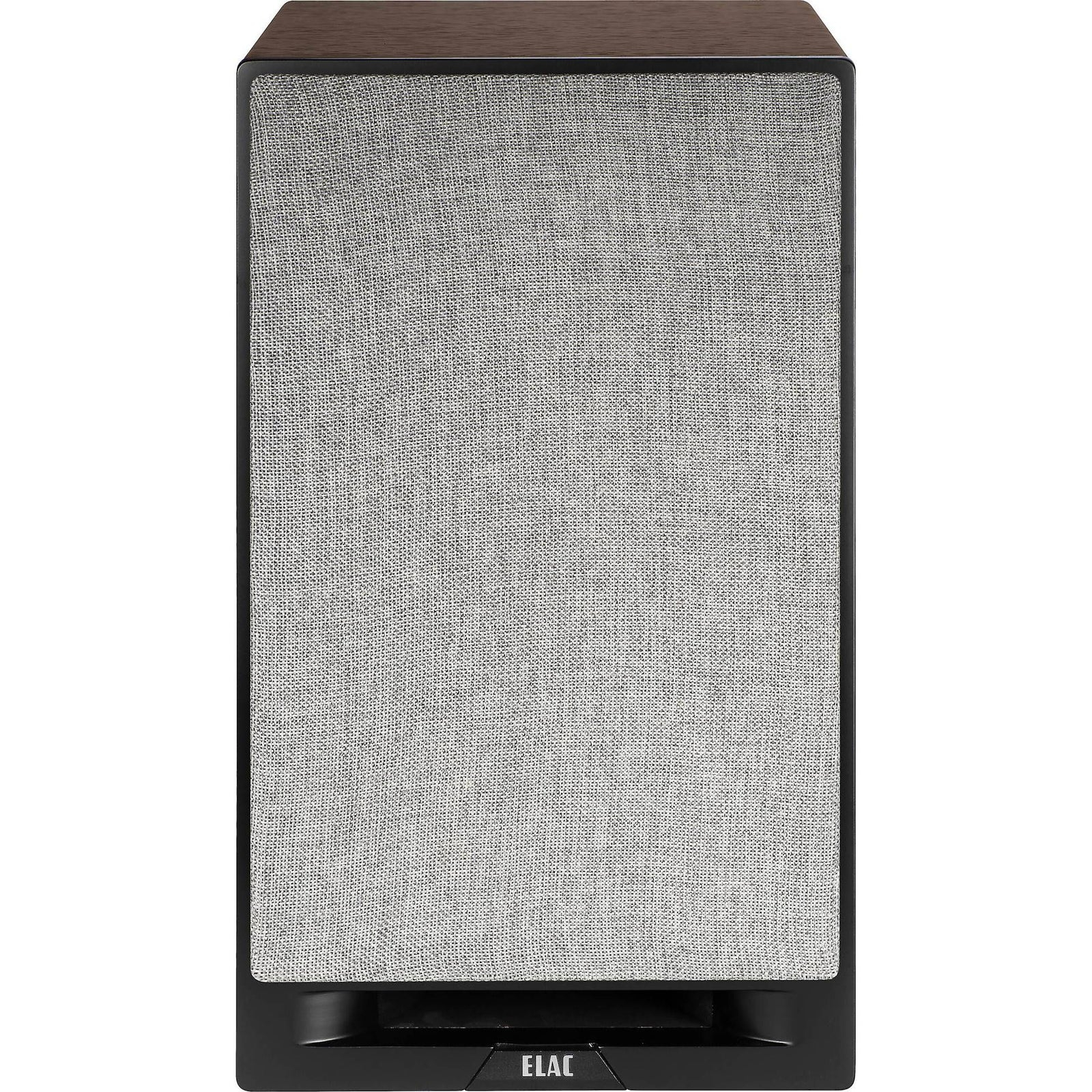

ELAC Debut Reference DBR62 Bookshelf Speakers
Building on the iconic status of ELAC’s Debut Series, a new Reference line emerges for our exclusive dealers. The Debut Reference brings significant acoustical and visual advancements. Designed to blend with traditional or contemporary styles. Debut Reference sounds as great as it looks!
Soft Dome Tweeter
A newly developed waveguide combined with a more open grill design enhances upper high-frequency response.
A new full perimeter brace that joins the top and the side panels significantly lessens cabinet vibrations, reducing cabinet coloration.
Cast Chassis Woofer
Our new cast chassis woofer provides improved stiffness for both strengthening the front baffle and minimizing chassis resonances.
Dual Flared Slot Port
Our new dual flared slot vent allows for lower noise and higher bass output for improved bass dynamics.
