Streamer Marantz Link 10n

Specificatii:
Link producator:

• Frequency Response - PCM 2Hz–50kHz (-3dB);
• Harmonic distortion - PCM 0.0004%;
• S/NPCM - 0.0004%;
• Dynamic range PCM - 0.0004%;
• Line Output Level UNBALANCED : 2.0Vrms;
  BALANCED : 4.0Vrms;
• Headphone Output Level - 130mW / 32 ohms;
• Frequency Response (analog input) - 5 Hz–100 kHz (+0dB/-3 dB);
• Harmonic distortion (analog input) - 0.001% (20Hz–20kHz);
• S/NPHONO (MC) : 76dB;
  HONO (MM) : 88dB;
  BALANCED : 122dB;
  LINE : 122dB;
• Phono Input sensitivity - MM : 8mV;
  MC : 80mV;
• Phono Input impedance - MC Low : 32 ohms;
  MC Mid : 100 ohms;
  MC High : 390 ohms;
  MM : 39 kohms;
• Power Consumption - 7W;
  Less than 0.3W (at Standby);
  Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB);

• Output Circuit - New HDAM;
• Power Transformer - Toroidal;
• Pre Amplifier Circuit - New HDAM High Grade;
  Full balance;
• Volume - Electric (MUSES 72323);
  Variable gain;
• Bass / Treble / Mid / Balance Control - Yes / Yes / No / Yes;
• Type of Tone Control - Electric;
• Headphone Circuit - Discrete;
• H/P Amp Gain Setting - Yes (Low / Mid / High);
• H/P On.Off Setting - H/P Off automatically, when in use;
• DAC Circuit - New MMM-Conversion;
• Dither - MMM-Stream;
  (Dither 1, 2, Off);
• Noise Shaper - MMM-Stream;
  Balanced, Natural, Dynamic Music, Dymanic Voice);
• Digital Filter - MMM-Stream;
  Filter 1, 2 Selectable;
• Jitter Reducer - Yes;
• DAC Master Clock Design (USB-DAC) - Yes;
• Asynchronous mode (for USB-B input) - Yes;
• Isolator (for USB-B input) - Yes (Complete Isolation System Duo);

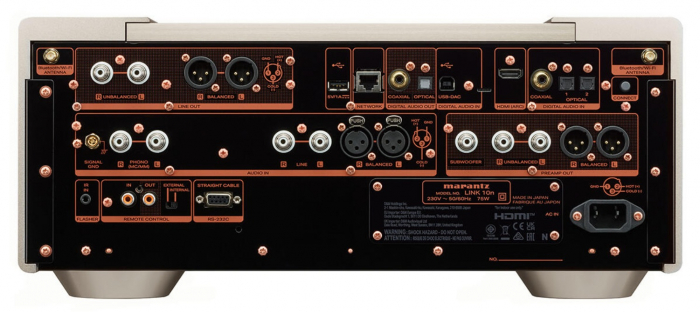

• Fixed Analog Output (RCA) - Cinch × 1;
  Thick nickel plated independent terminals;
• Pre / Variable Audio Output (RCA) - Cinch × 1;
  Thick nickel plated independent terminals;
• Fixed Balanced XLR Output - Yes (1 Pair);
• Pre/ Variable Balanced XLR Output - Yes (1 Pair);
• RCA Input - Cinch × 1;
  Thick nickel plated independent terminals;
• Balanced XLR Input - Yes (1 Pair);
• Phono input - Yes (MM / MC);
  Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position);
  Thick nickel plated independent terminals;
• Optical input / output (Maximum Support) - 2 / 1 (on/off switchable);
  44.1 kHz - 192 kHz;
• Coaxial input / output (Maximum Support) - 1 / 1 (on/off switchable);
  44.1 kHz - 192 kHz;
• HDMI input / output - No / Yes (ARC);
• Headphone Output - Yes (Φ6.3 ×1);
• Subwoofer - Yes with LP filter adjustable;

• Unit (W × H × D mm) - 440 × 192 × 472 (with antenna);
• Cabinet Size - 440 × 192 × 422;
• Net weight - 33.3kg;
• Packaging Dimensions (W × H × D mm) - 600 × 379 × 540;
• Packaging gross weight - 38.7g;
• Carton Color1 Color (Material color: Brown Printing: Black);
• Panel Color - Black / Marantz Champagne;
• Front (Center) Pane - Aluminum;
• Back-shell - Aluminum;
• Front panel illumination - Yes (All sides, Dimmer);
• Side cover - Aluminum (Thickness: Max 15.8mm);
• Top cover (Centor) ventilation hole material - No;
• Interior ilumination - No;
• Rear Panel - Triple layer Copper-plated;
• Chassis Material - Copper-plated;
• Bottom Layer / Bottom plate - Copper-plated;
• Volume Knob - Solid aluminum (Bearing construction);
• Input Selector - Solid aluminum (Bearing construction);
• Foot - Solid aluminum with Copper.
