Receiver AV Pioneer VSX-LX304

Specificatii:

Amplification Type: Direct Energy

185 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)

170 W/ch (8 ohms,1 kHz, THD 1 %, 1ch Driven IEC)

IMAX Enhanced*1

Dolby Atmos®, Dolby Surround Upmixer

DTS:X®, DTS Neural:X® Upmixer

Reflex Optimizer

Dolby Atmos Height Virtualizer*1

Dolby® TrueHD, Dolby Digital Plus

DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express

DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)

Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)

384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)

Audio Return Channel (ARC) on HDMI

Advanced MCACC Auto Room Tuning

• Auto Phase Control Plus
• Subwoofer EQ
• Multi-point Standing Wave Control

Advanced Sound Retriever (2ch)

Advanced Surround Modes

• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance

Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)*2

HDR10, HLG and BT.2020 Compliant Wide Colour Gamut Signal Pass-through

Dolby Vision™ Compatible

Ultra HD Upscaling (1080p to 4K)

3D Ready (Blu-ray Disc™, Broadcast, and Games)

Deep Colour (36-bit), “x.v. Colour”

*2 Except AUX INPUT (Front)

FlareConnect™ for Multi-room Audio

Chromecast built-in*3 and Works with the Google Assistant

DTS Play-Fi with Pioneer Music Control App

Apple AirPlay 2

Works with SONOS

Amazon Music, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready*4

Internet Radio with TuneIn

Hi-Res Audio File Playback via USB/Network

• Up to 192 kHz/24-bit ALAC*5, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD*6

*3 Chromecast-enabled apps required

*4 Service availability depends on country or region

*5 Up to 96 kHz supported via wireless LAN

*6 Not guaranteed via wireless LAN

Personal Preset

Dialog Enhancement

Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi® Built-in

Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in

Pioneer Remote App*7 Ready for Multi-room Entertainment Control and Network Streaming

User-Friendly GUI with System Setup Menu

On-Screen Information for Audio/Video Status

Auto Power Off in HDMI Standby Through

AM/FM Tuner 40 Presets

Sleep Timer

User-Friendly Simple Remote Control

*7 Available for free download from the App Store/The Google Play

FRONT TERMINALS

HDMI 1 In

USB 1 In for USB Drive

MCACC Setup MIC In (Gold-Plated)

Audio 1 In (Mini Stereo Jack, Gold-Plated)

Phones 1 Out

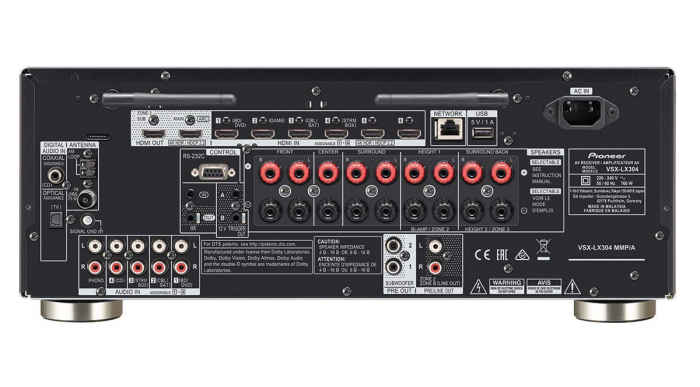

REAR TERMINALS

HDMI 6 In (4 Assignable)

HDMI 2 Out (1 for MAIN, 1 for SUB)

Ethernet 1 In

USB 1 In for USB Drive

Audio 4 In (Assignable)

Phono (MM) 1 In

Digital Coaxial 1 In (Assignable)

Digital Optical 1 In (Assignable)

Subwoofer 2 Pre Out

ZONE B Line Out for Wireless Headphones

ZONE 2 Pre/Line Out

Speaker 9ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP/ZONE 2, SURROUND BACK/HEIGHT 2/ZONE 3)

IR 1 In/1 Out

12 V Trigger 2 Out

RS-232C

FM/AM Antenna
