Specificatii:


Product type:
Preamplifier, DAC, Bluetooth receiver;

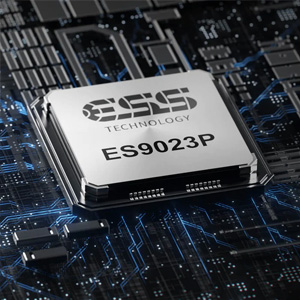

DAC cip:
ESS ES9023P;

Bluetooth chip:
QCC3040;

Bluetooth version:
5.2;

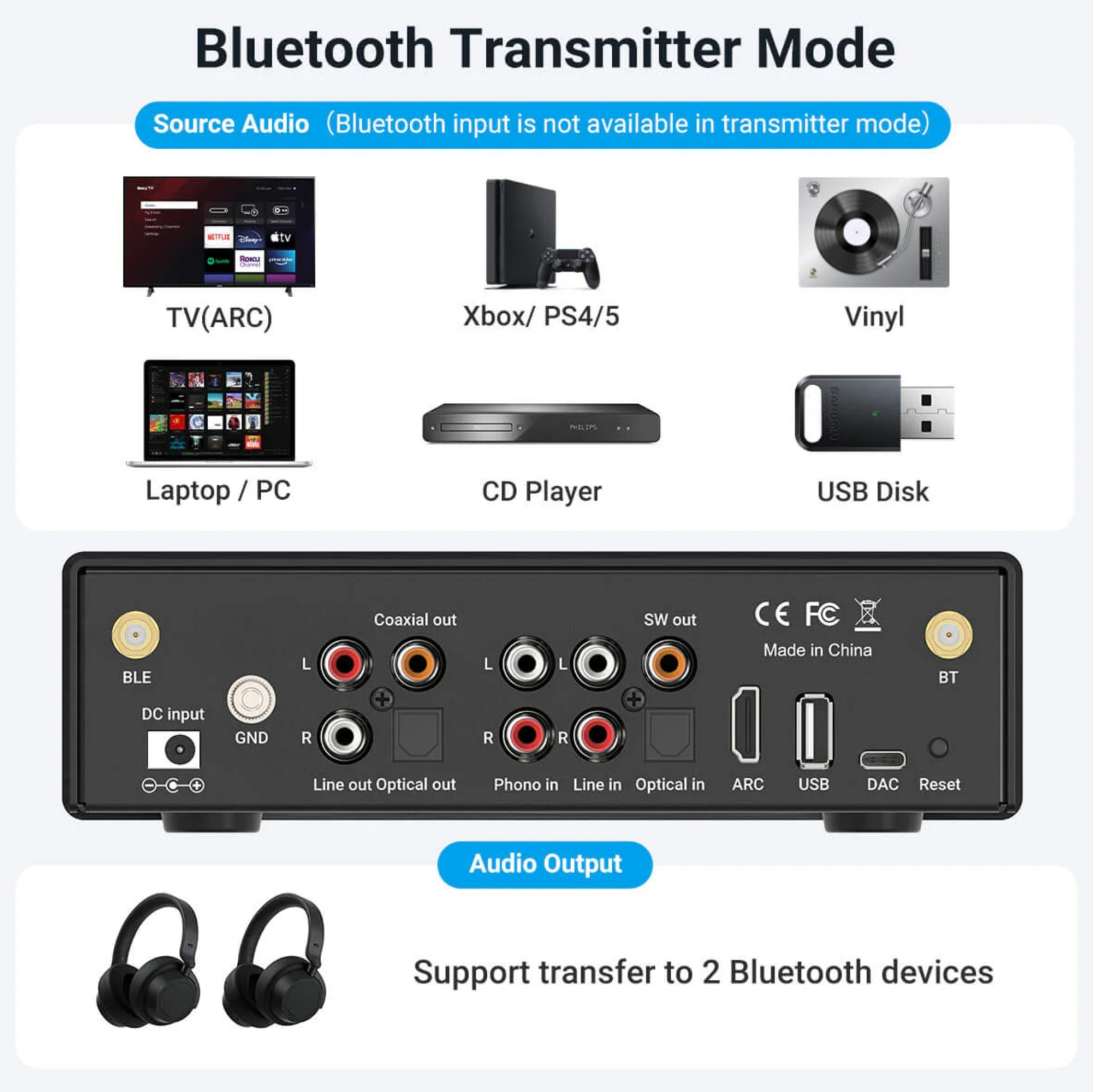

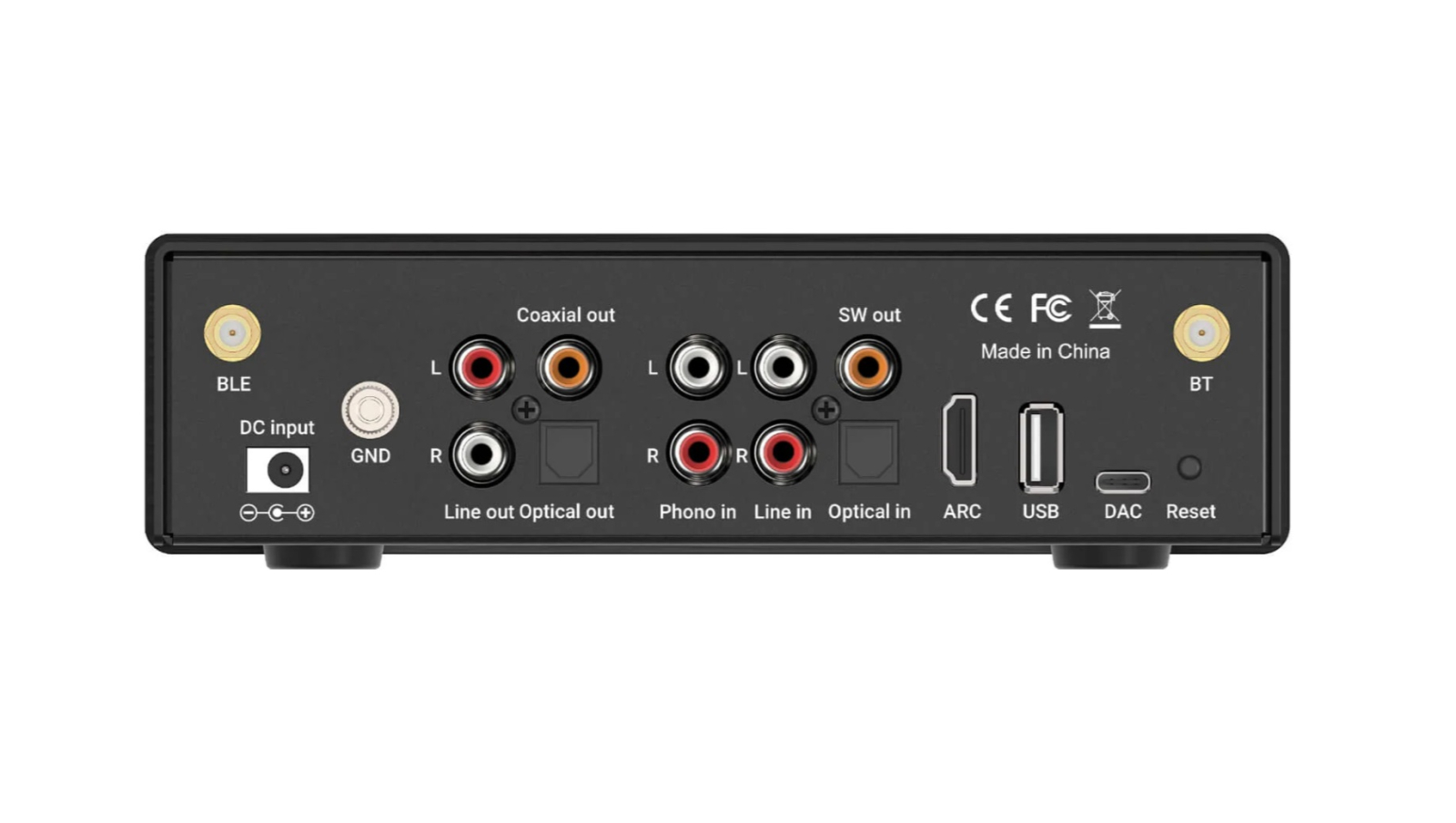

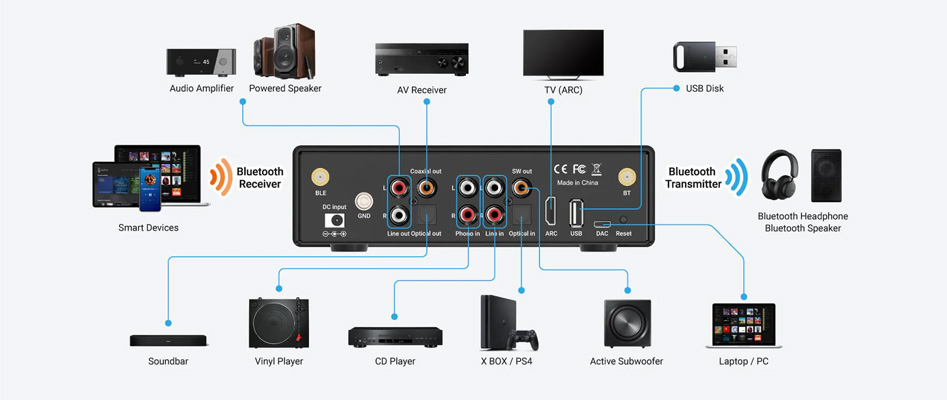

Inputs:
Bluetooth 5.2;
1x Stereo RCA line input;
1* Phono RCA input (MM/MC);
1x Optical Toslink;
1x HDMI ARC;
1* USB-A (USB Host);
1* USB-C (USB DAC);

Outputs:
Bluetooth 5.2;
1x Stereo RCA line output;
1x Coaxial;
1x Optical Toslink;
1x Subwoofer output (RCA);

Bluetooth range:
15m;

Supported Bluetooth codecs:
Transmission: SBC, AAC, aptX, aptX LL, aptX HD, aptX Adaptive;
Reception: SBC, AAC, aptX, aptX HD, aptX Adaptive;

Frequency repsonse:
20Hz - 20kHz;

THD+N:
0.05%;

SNR
> 95dB;

Supported samplinbg rates:
Optical input: PCM up to 24bit 192kHz;
USB-C input: PCM up to 16bit 48kHz;
Optical output: PCM up to 16bit 48kHz;
Coaxial output: PCM up to 16bit 48kHz;

HDMI CEC;
USB Host;

Supported file systems:
FAT16, FAT32, exFAT, up to  128Go;

Supported formats:
MP3, MP4, WMA, MOV, M4A, AAC, FLAC, APE;

Subwoofer output level:
Max 3Vrms;

Subwoofer output cutoff frequency:
250Hz;

Line out level:
Max 2Vrms;

Specifications:

Supply voltage:
12V 1A (power adapter included);

Dimensions:
185*155*50mm;

Weight:
750g;

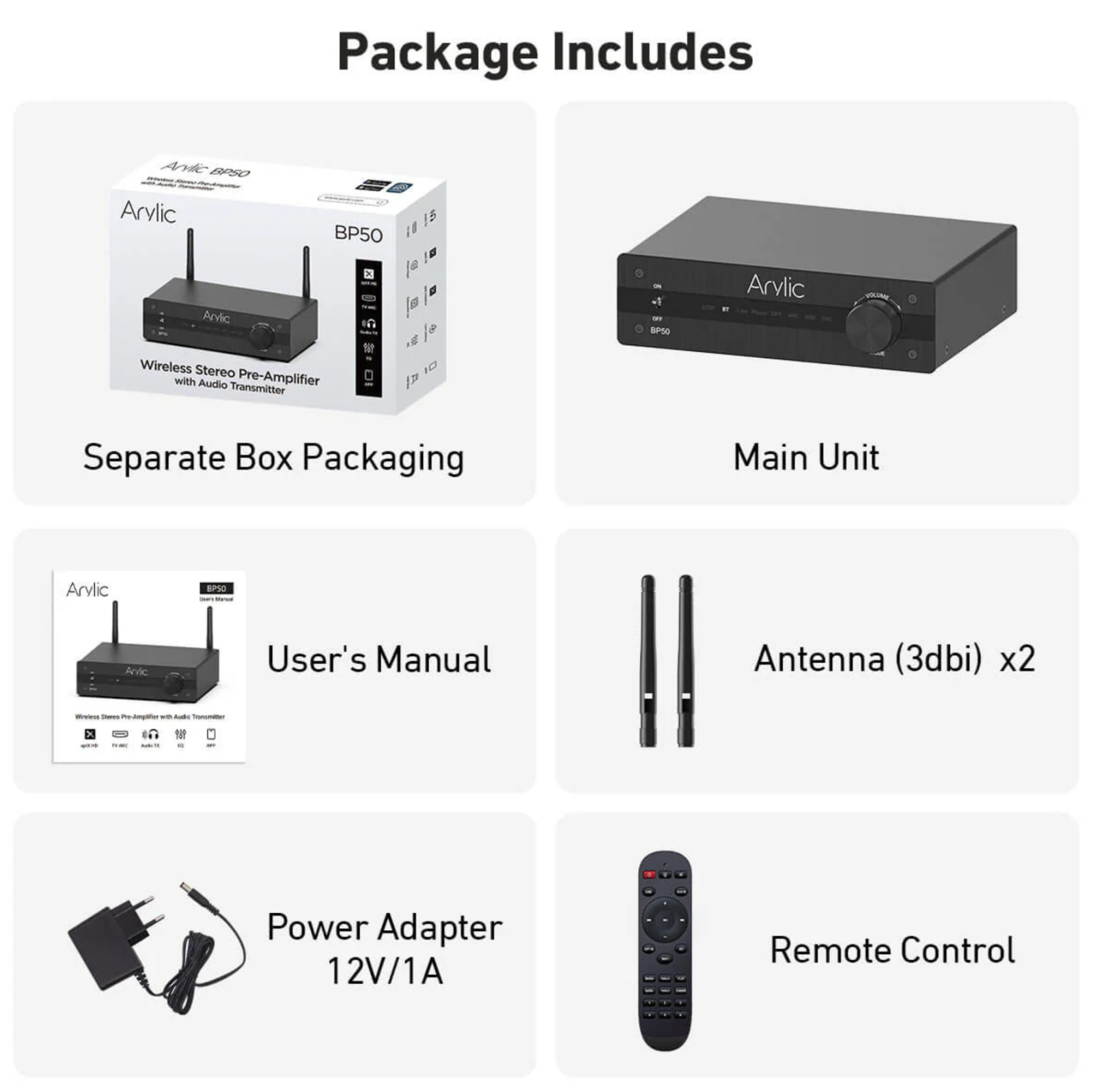

Package:

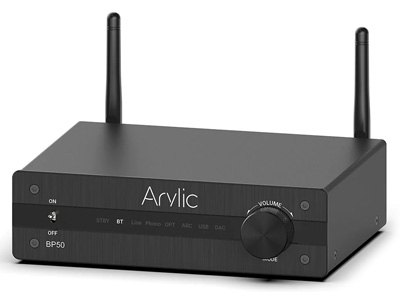

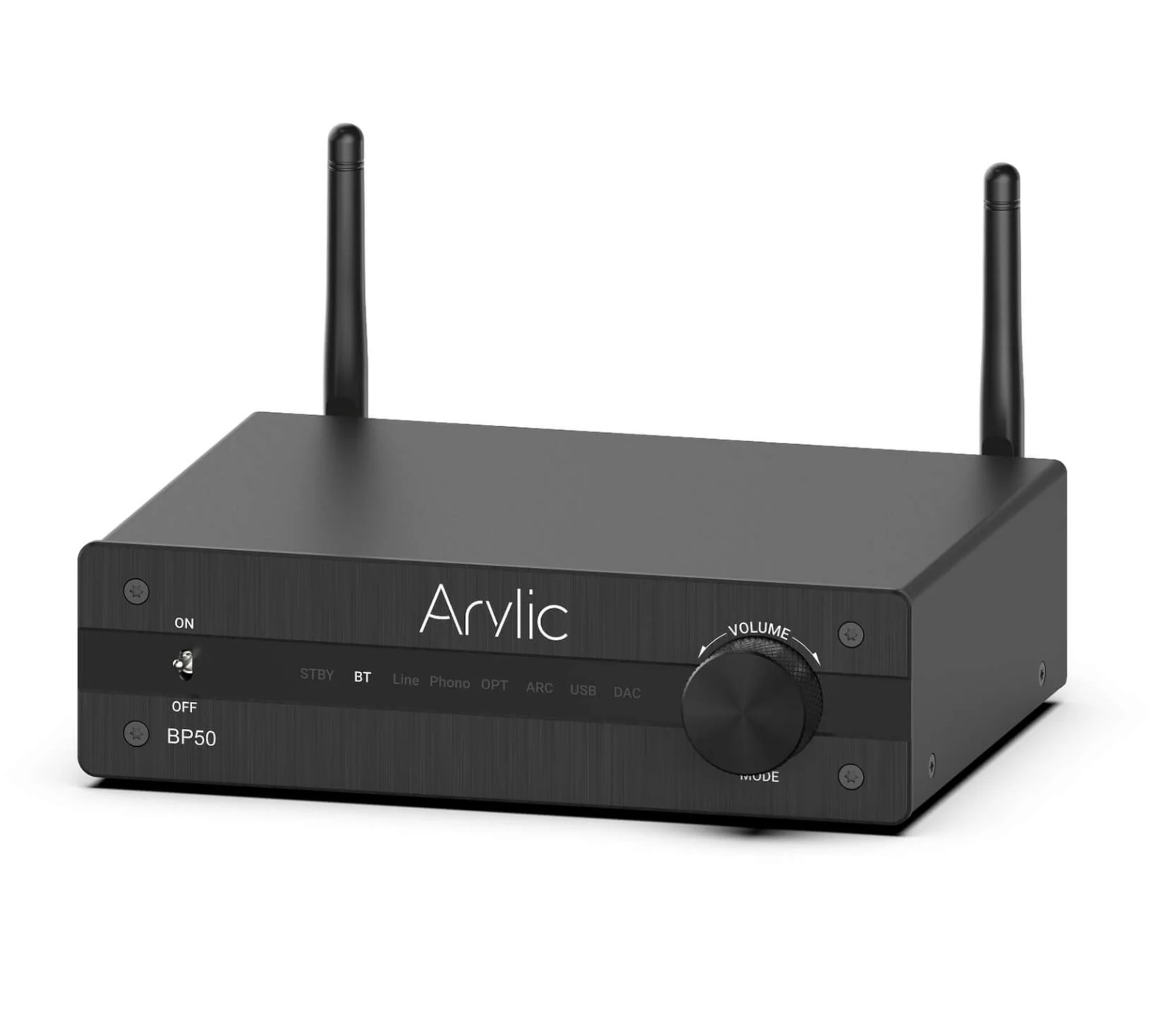

1x Arylic BP50;
1x Power adapter 12V 1A DC;
2x Antenna (3dbi);
1x Remote control.
