Specificatii:


Connectivity:

WiFi:
IEEE802.11 b/g/n 2.4G;
Bluetooth:
5.0 SBC/AAC, 15M, BT Receiver
Wired Network:
Ethernet Single 10/100M RJ45 In;
Ethernet RJ46 Out;
(Output to other device to share the network);

Streaming Protocols:
AirPlay 2, DLNA, UPnP, Spotify connect, Qplay;

Music Format:
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV;

Audio Format:
Decoding up to 192khz/24bits;
Output up to 44.1khz/16bits CD quality;

Frequency Response:
20Hz-20kHz;

Local Storage;
Mobile device memory, NAS, USB pen drive/Stick

Power Input:
12V/2A;

Audio Input;
4 Zone InterfacesAnalog;
RCA In(Max 2V RMS input);

Master InterfacesAnalog:
RCA In(Max 2V RMS input);

Digital:
Optical Input;
Coaxial Input;

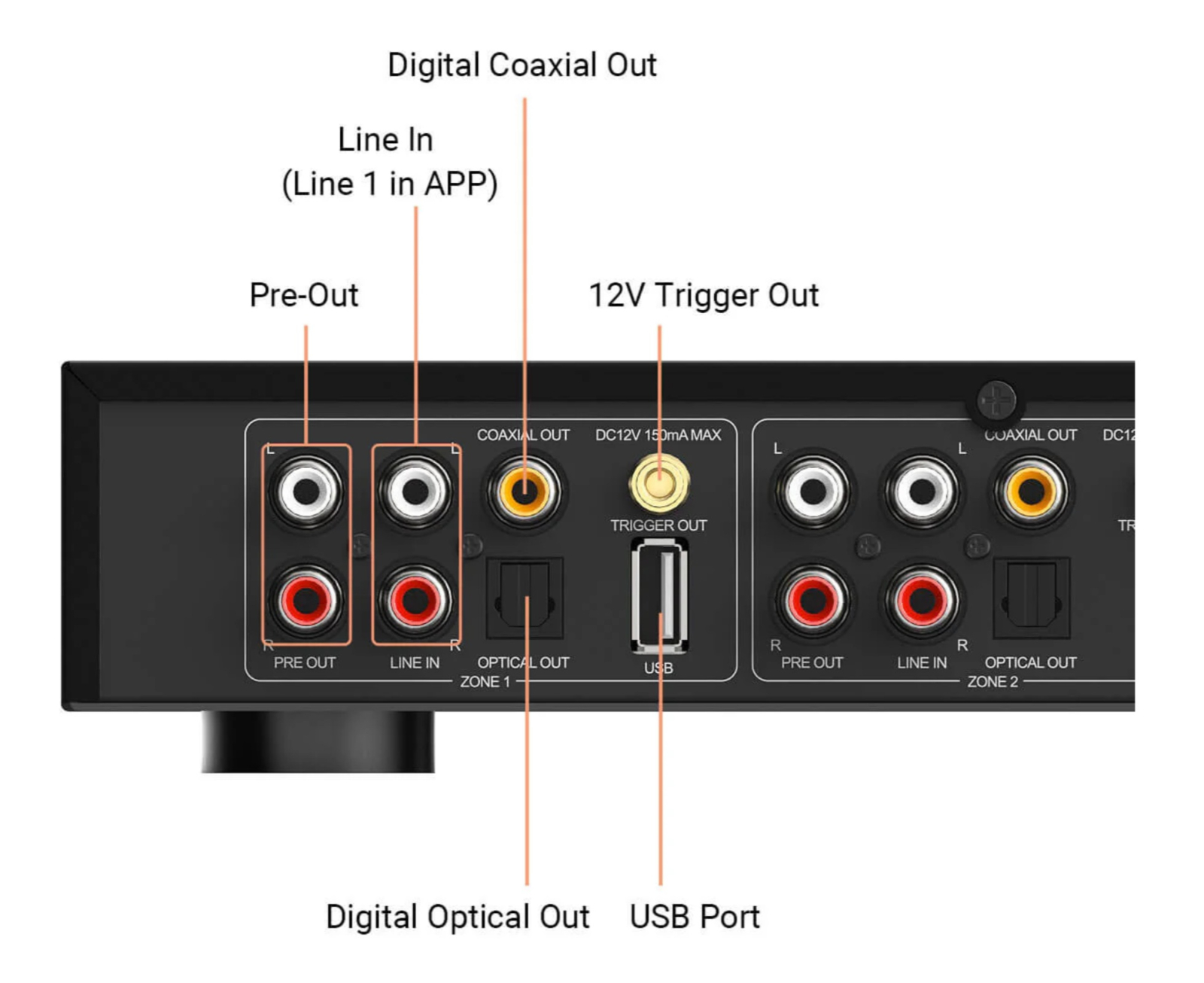

Audio output:
4 Zone InterfacesAnalog;
RCA Out(Max 2V RMS Output);

Digital:
Optical Output;
Coaxial Output;

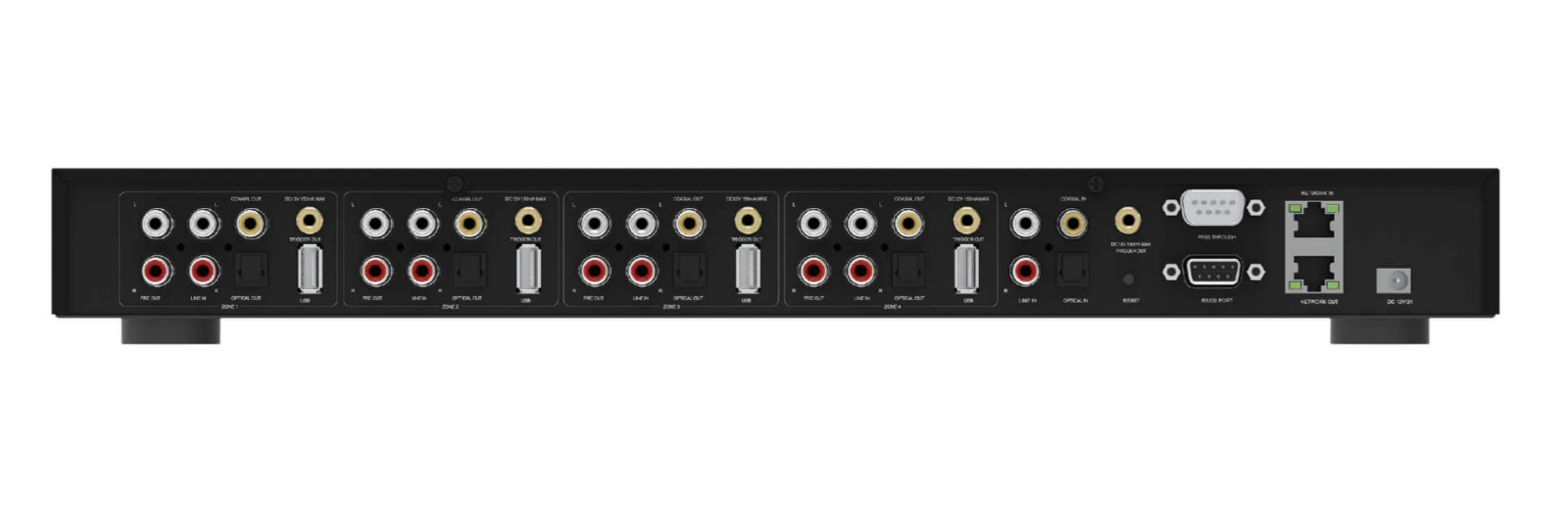

Other Interfaces:
4 Zone Interfaces;
Trigger Output(12V);

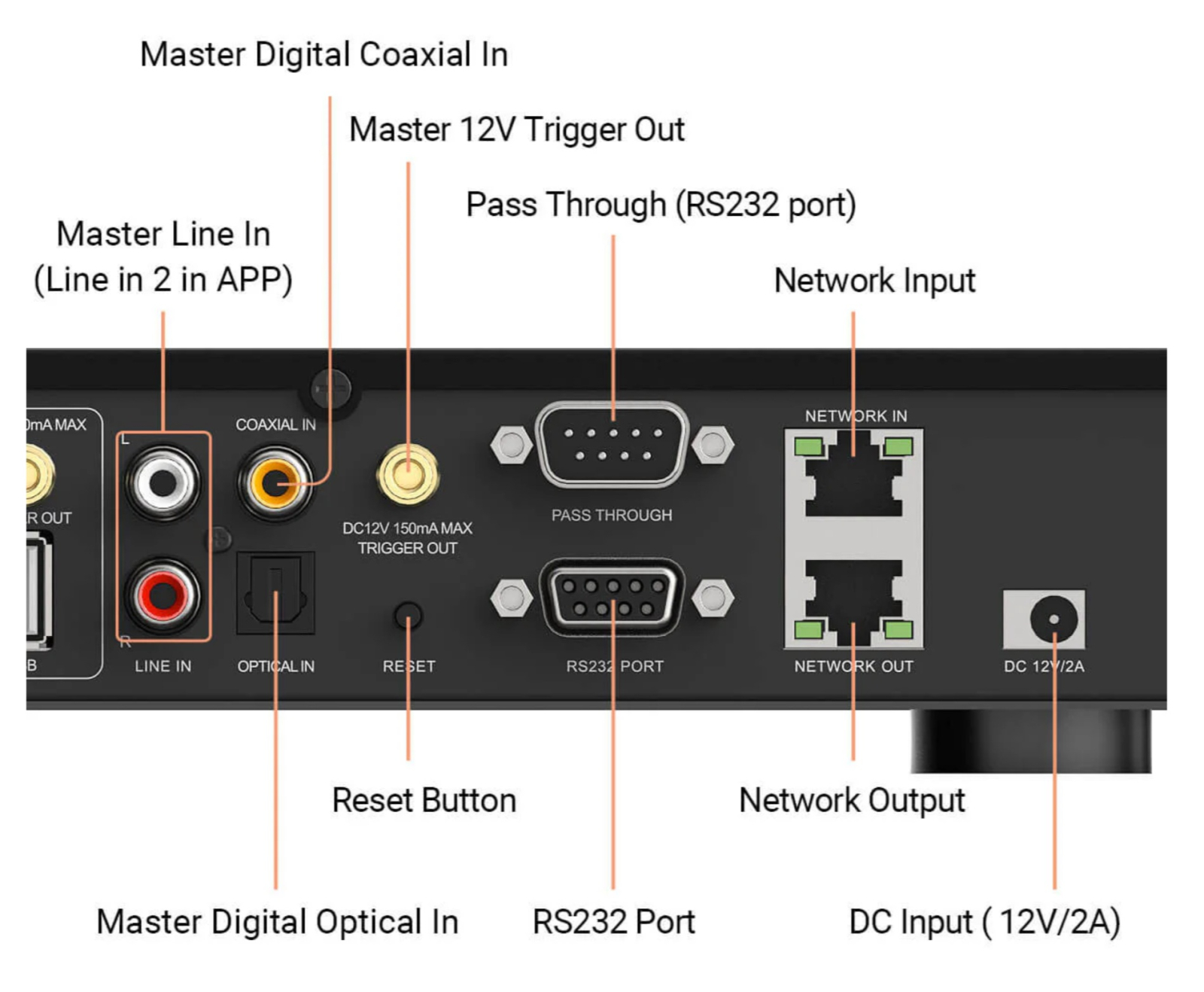

Master Interfaces:
Trigger Output x1(12V);
Dual-way RS232;

USB Host:
For USB pen drive/stick, 1000 songs limited;

Weight:
3kg;

Dimensions:
43x20x4.5(5.3 with footer) cm;

Working temperature:
0~40℃;

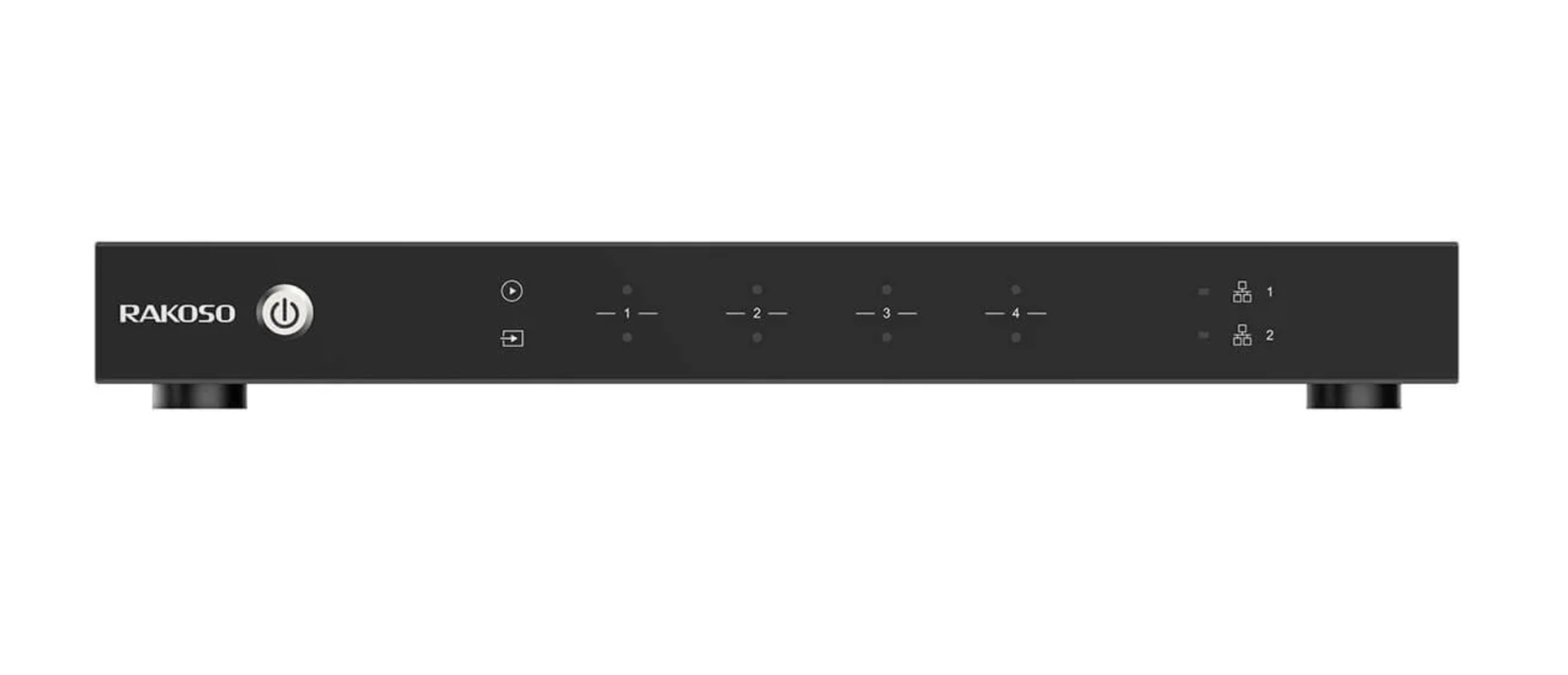

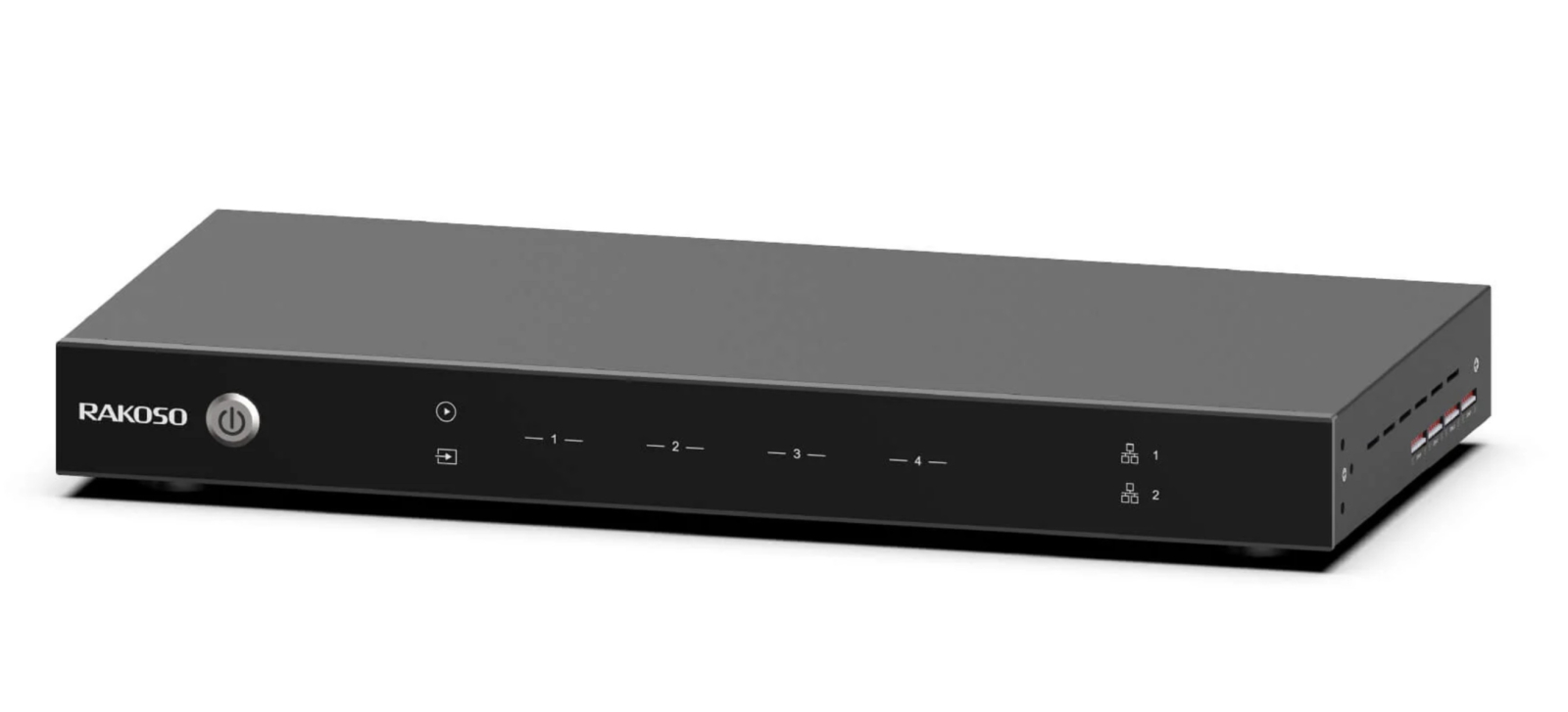

Power Button:
⚪White-WiFi & network mode:
Flashing fast-device is booting;
Flashing slow- waiting for WiFi connection;
Solid- WiFi is connected;

🟢Green-Line in 1 (Zone Line in);
🔴Red-USB mode;
🟡Yellow-Yellow for Line in 2 (Master Line in);
🟣Magenta-Master Optical in
Cyan-Master Coaxial in.
