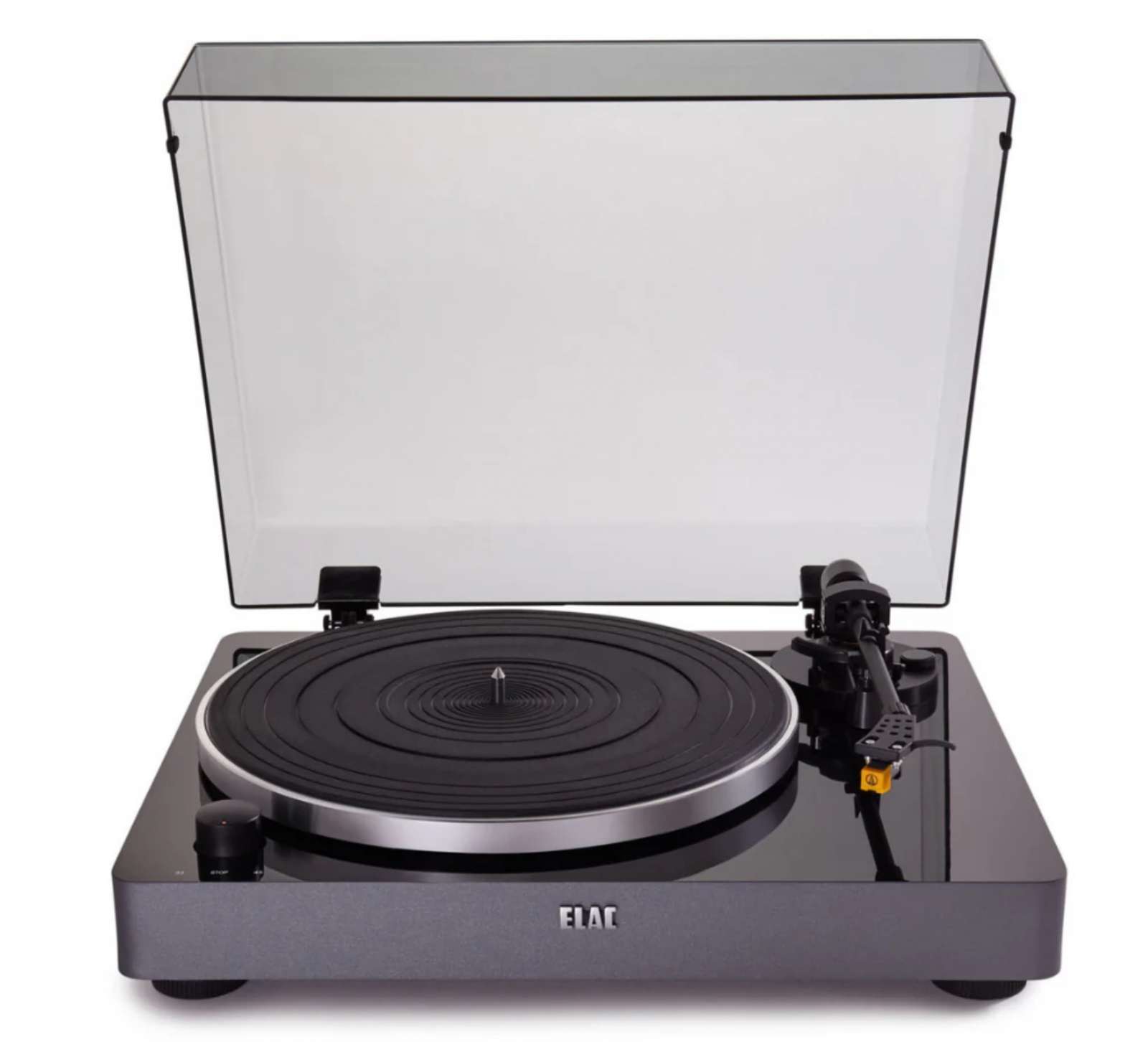

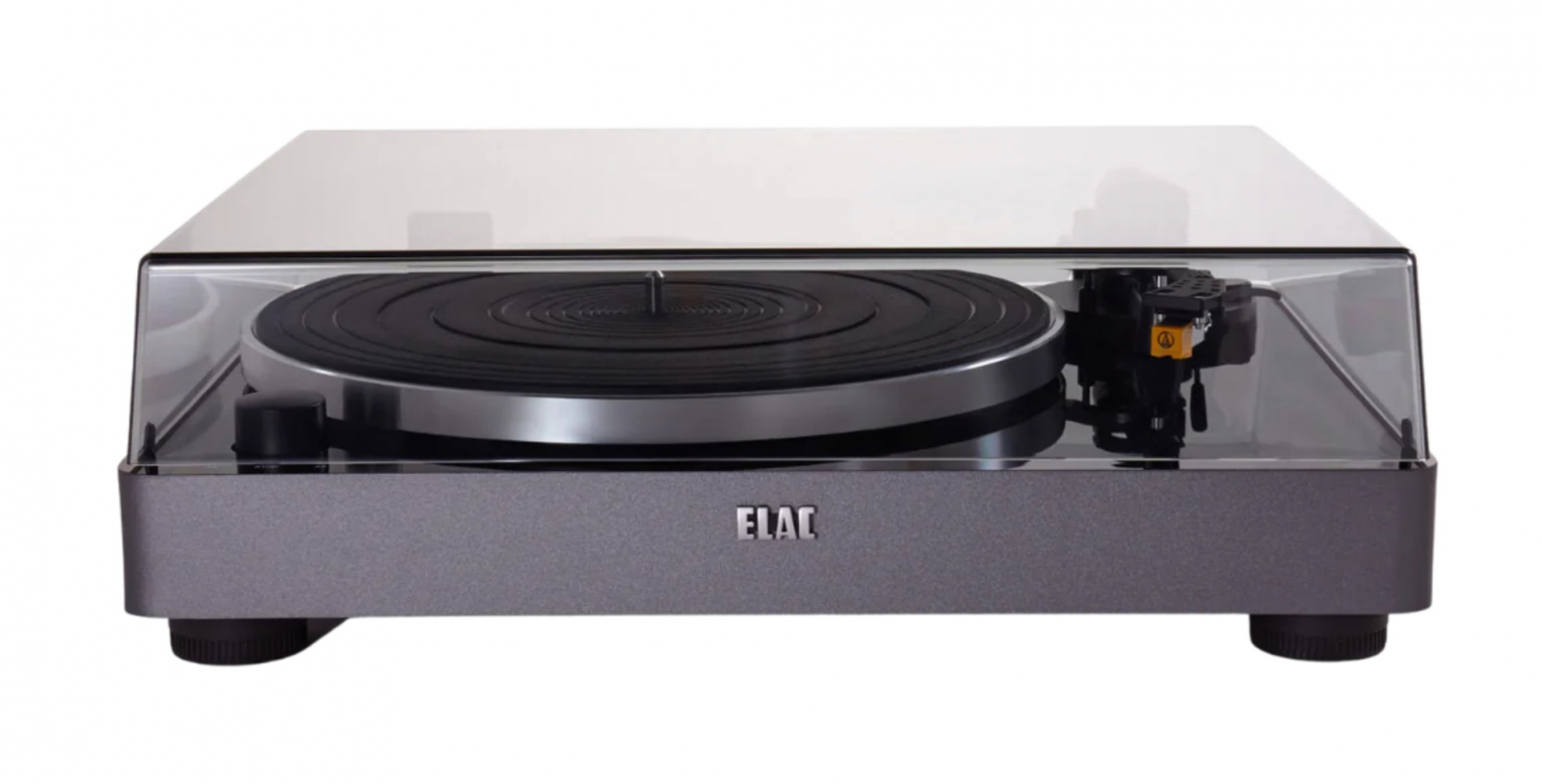

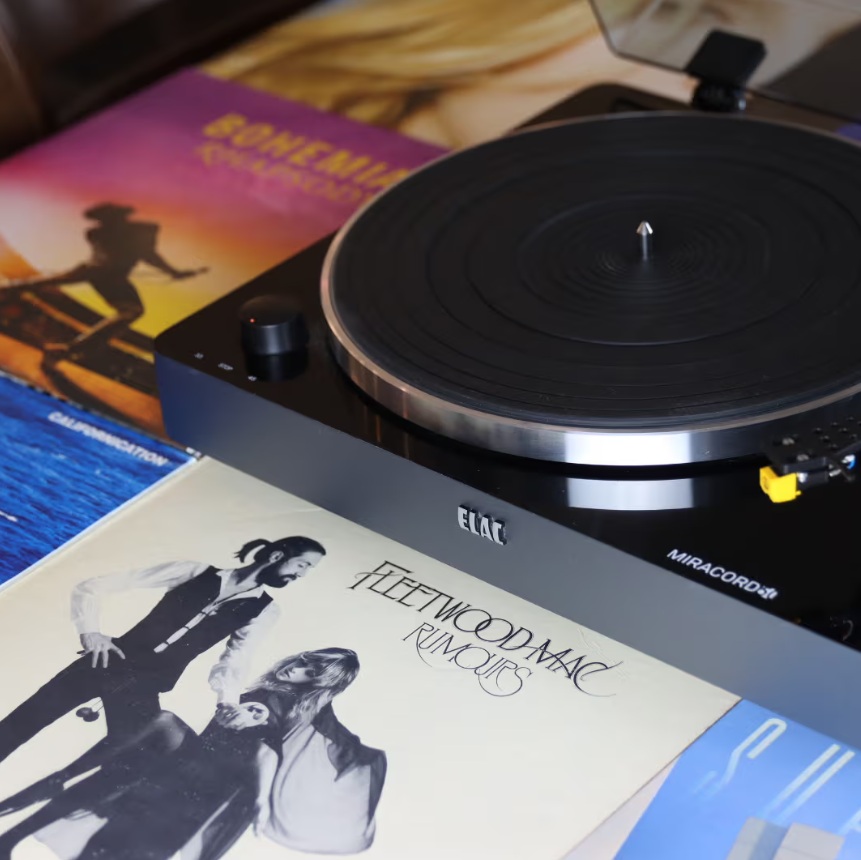

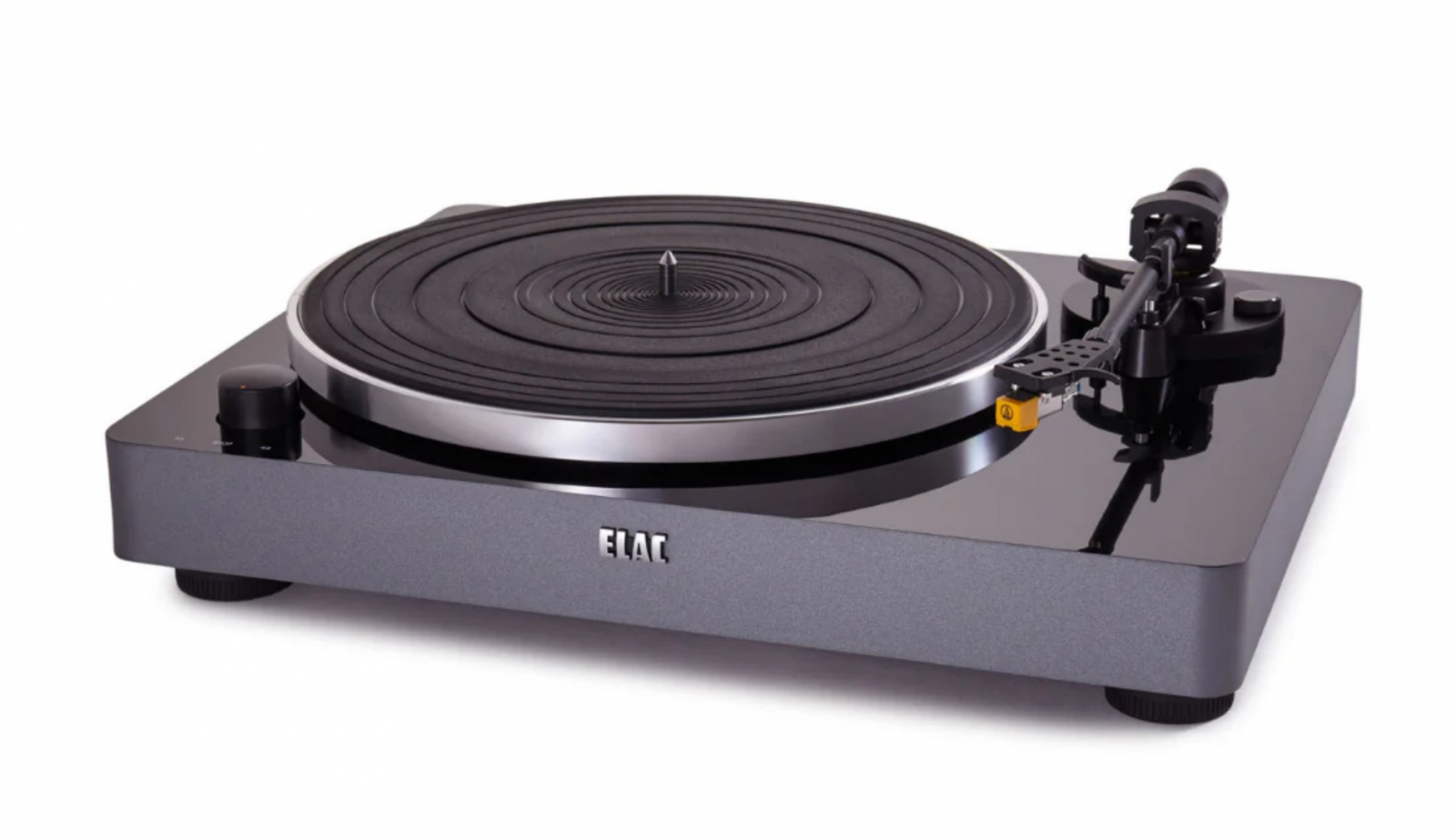

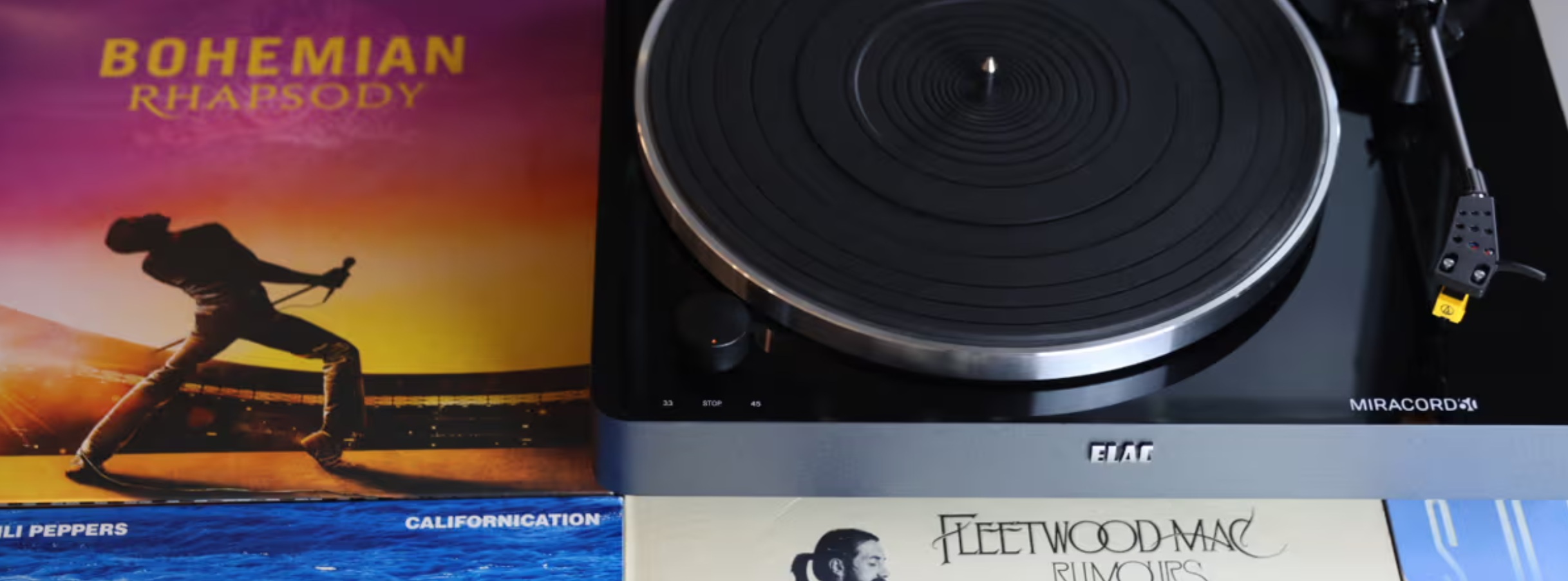

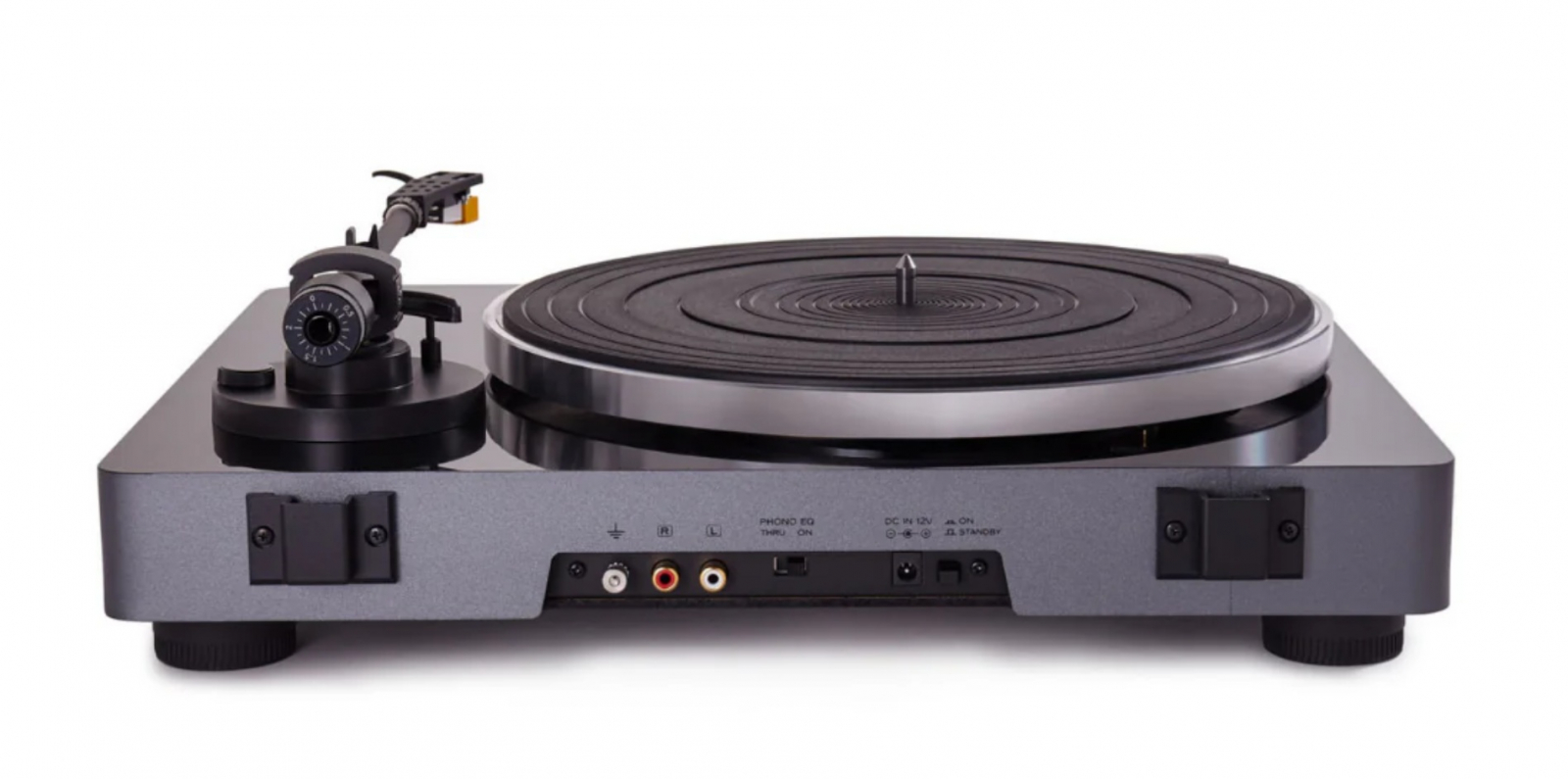

Pick-up ELAC Miracord 50, phono pre-amp, belt drive, cartridge included

Specificatii:
Link producator:

Turntable Section:

Drive System: Belt Drive;

Motor: DC Motor;

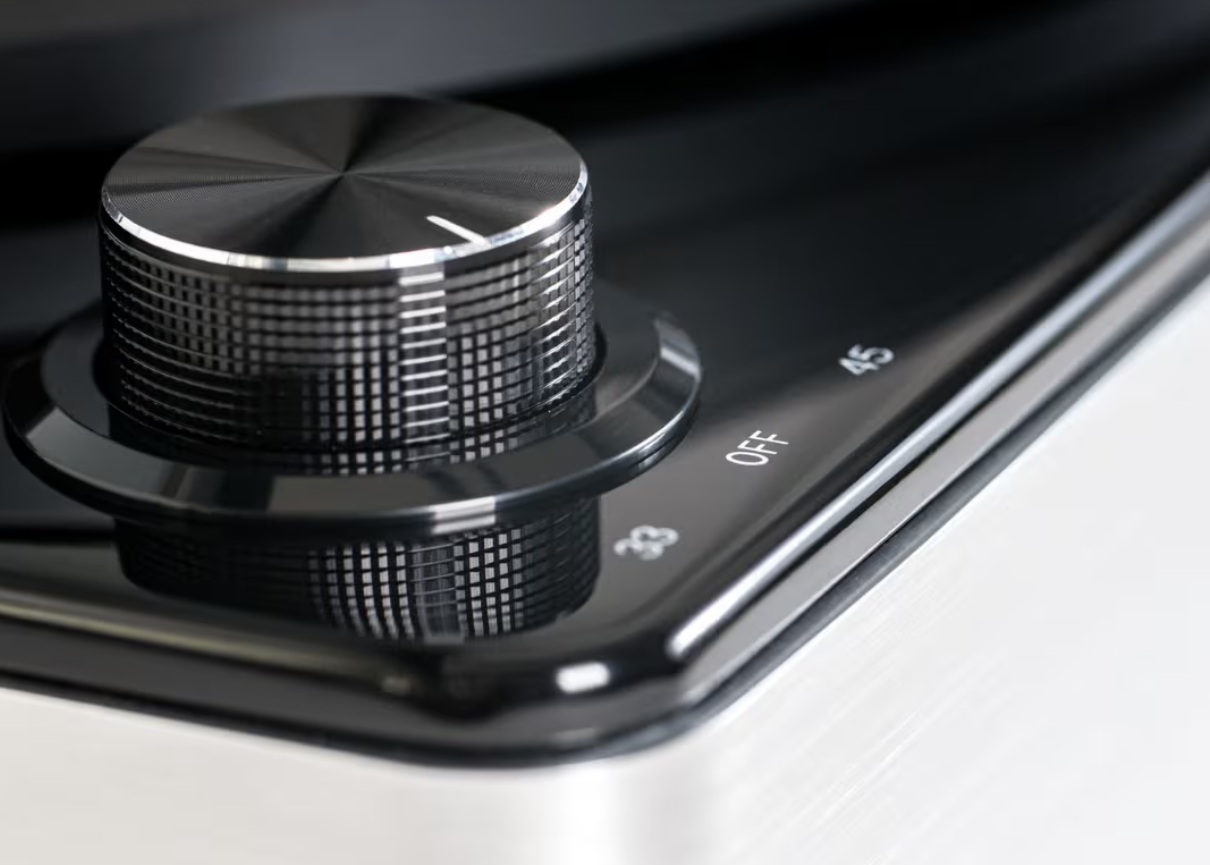

Selectable Speeds: 33-1/3 and 45 RPM;

Motor Servo: Speed Rotation and Servo System;

Rotation Speed Variation: +/- 1%;

Wow and Flutter: 0.1%;

Signal-To-Noise Ratio: -67 dB or higher (A-weighted) -60dB or higher (unweighted);

Platter: Aluminum die-cast;

Platter Diameter: 0 in / 300 mm;

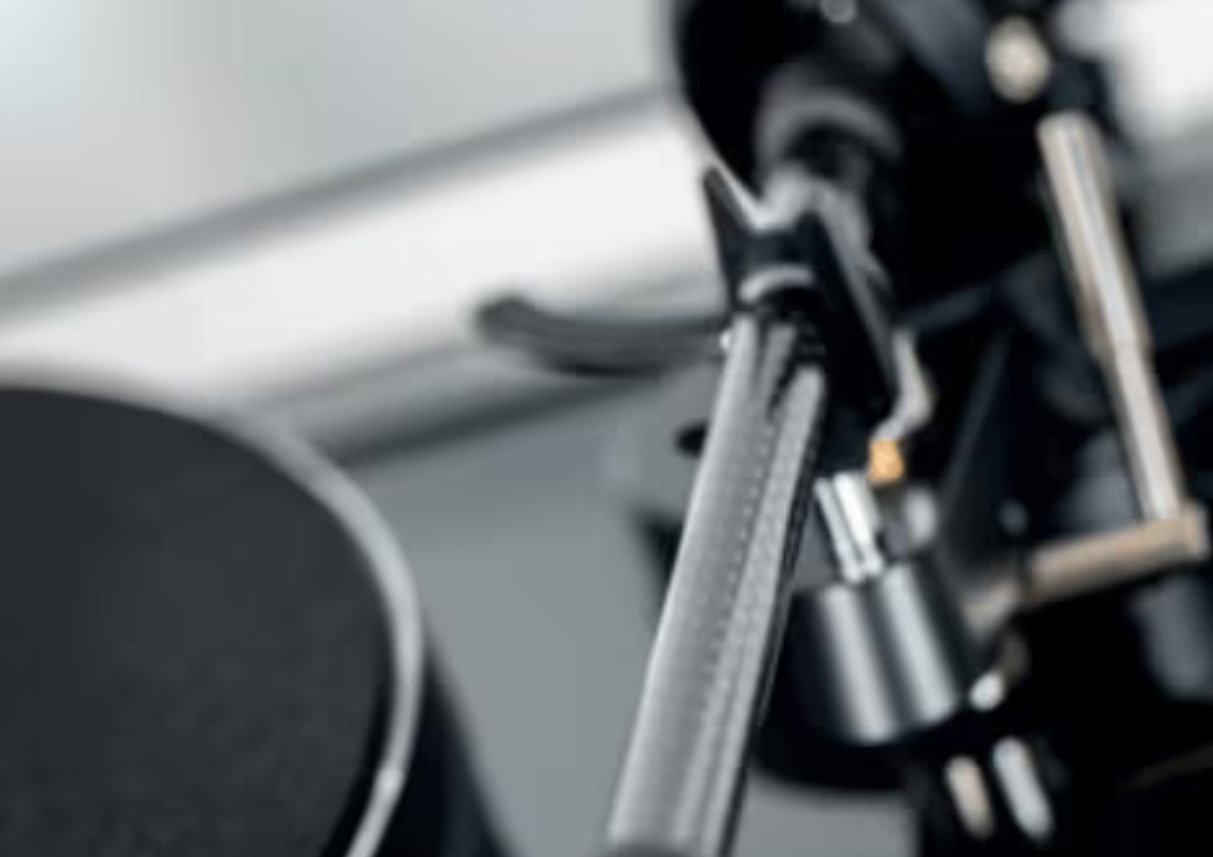

Tonearm Section:

Type: Aluminum tube, static-balanced;

Effective Arm Length: 8in / 223.6 mm;

Stylus Pressure Range: 0 to 4 g;

Cartridge Weight Range: 3.5 to 6g;

Effective Arm Mass: 27.4 g;

Overhang: 18.6 mm;

Offset Angle: 25 degrees;

Anti-Skating: Adjustment Supported;

Main Bearing: Stainless steel;

Cartridge Section:

Type: Audio-Technica AT91 moving magnet;

Stylus Construction: Bonded diamond;

Mount: Half-inch;

Frequency Response: 20 Hz to 20 kHz;

Channel Separation: >18 dB;

Channel Balance: 2.5 dB;

Vertical Tracking: Angle 20 degrees;

Stylus Pressure: 2.0 g +/-0.5 g;

Cartridge Weight: 5.0 g +/-0.5 g;

Stylus Pressure: 2.0 g +/-0.5 g;

Headshell Weight: 0 g (including screws, nuts and wires);

Phono Equalizer Amplifier:

Type: Moving magnet (MM);

Phono Output: 2.5 mV (1 kHz, 3.54 cm/sec);

Line Output: 140 mV (-17 dBV);

Phono/Line: Switchable;

Supported Load Impedance: 47 kΩ;

General:

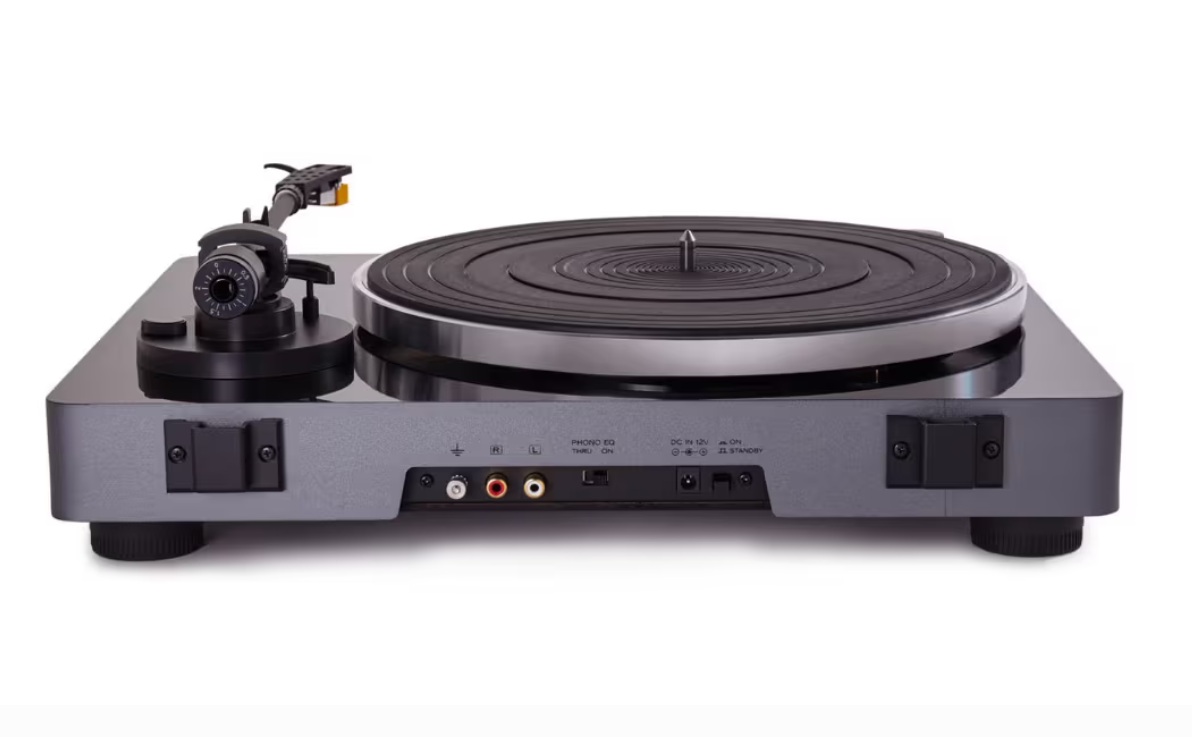

Connector: RCA pin jack including RCA cable accessories;

Voltage: 100 to 240 V AC / 50 to 60 Hz;

Power Consumption: 1.5 W (less than 0.5 W at standby);

Dimensions (WXHXD): 5.5 x 16.05 x 14.20;

Weight: 12.10 lb.
