La fel ca modelele sale predecesoare, UD-501 și UD-503, folosește un circuit dual pentru procesarea semnalelor audio cu o puritate și mai mare, cu cel mai recent cip VERITA AK4497 DAC utilizat pe fiecare dintre cele două canale. Acest lucru îmbunătățește raportul S / N (semnal / zgomot) prin procesarea fiecărui canal individual în modul monaural, precum și prin furnizarea de capacități native de redare PCM DSD512 (22.5MHz) și 768kHz / 32 biți.
Secțiunea analogică, care este una dintre componentele calității sunetului, include patru circuite buffer TEAC-HCLD care procesează diferite moduri de acționare, - unitate complet echilibrată pentru o ieșire balansata și unitatea de acționare paralelă pentru ieșirea nebalansata, - pentru a realiza o expresie acustică îmbunătățită .
Secțiunea căști este remarcabilă. Este folosită o mufă cu căști de 4,4 mm cu totul nouă, numită Pentaconn, care permite conexiuni balansate și active în cadrul unui singur jack, în timp ce sunt prevăzute și mufe de casti convenționale de 1/4 ".
Pe lângă o gamă largă de intrări digitale și analogice, un receptor Bluetooth® care acceptă LDAC ™ și Qualcomm® aptX HD ™ vă permite să vă bucurați de transmisie audio wireless de înaltă calitate de pe smartphone-ul dvs. pe acest DAC USB.
UD-505 este un amplificator USB DAC și căști compact și înalt, care acceptă formatele Hi-Res cu frecvență de eșantionare ridicată astăzi.
Specificatii:
Supported formats
USB input
PCM
16/24/32 bit
44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768k Hz
DSD
2.8M/5.6M/11.2M/22.5M Hz
Coaxial digital input
PCM
16/24 bit
32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
DSD
2.8MHz(supported with 176.4kHz/24-bit DoP format)
Optical digital input
PCM
16/24 bit
32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
DSD
2.8MHz(supported with 176.4kHz/24-bit DoP format)
DAC section
USB DAC
Asahi Kasei Microdevices AK4497×2
Up-conversion
up to 384kHz/32-bit PCM, 22.5MHz DSD
Digital filters
PCM filters
Sharp Roll Off, Slow Roll Off, Short Delay Sharp, Short Delay Slow, Low Dispersion, off
DSD cutoff frequencies
Narrow : 39kHz (at 2.8M), 78kHz (at 5.6M), 156kHz (at 11.2M) or 312kHz (at 22.5M)
Wide : 76kHz (at 2.8M), 152kHz (at 5.6M), 304kHz (at 11.2M) or 608kHz (at 22.5M)

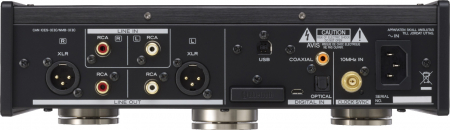

Audio inputs
USB
USB B port, USB 2.0, asynchronous mode transfer, bulk transfer
Compatible Software
TEAC HR Audio Player (Windows, Macintosh)
COAXIAL digital (rear)
RCA pin×1 (gold-plated)
Input level
0.5Vp-p
Input impedance
75Ω
Optical digital (rear)
TOS-link×1
Input level
-24.0 to -14.5dBm peak
Coaxial digital (front)
1/8” (3.5mm) mini*×1 (combined with optical digital input, detected automatically)
Input level
0.5Vp-p
Input impedance
75Ω
* 1/8” Mini - RCA conversion cable included.
Optical digital (front)
1/8” Mini Optical*×1 (combined with coaxial digital input, detected automatically)
Input level
-24.0 to -14.5dBm peak
Analog (rear)
RCA pin×1 pair (gold-plated)
Input impedance
24kΩ
Input sensitivity
130mV
Bluetooth®
Bluetooth® version
4.0
Output class
Class2 (Range: approx. 33ft/10m)
Supported profiles
A2DP, AVRCP
Content protection
SCMS-T
Supported codec
LDAC™, Qualcomm® aptX™ HD, aptX™, AAC, SBC
No. of paired device
maximum 8 devices
Audio outputs
XLR balanced
XLR×1 pair (gold-plated)
Output level
Fixed (0dB), fixed (+6dB), variable, output off (selectable)
Maximum output leve
2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))
4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))
12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable)
Output impedance
188Ω
RCA unbalanced
RCA pin×1 pair (gold-plated)
Output level
Fixed (0dB), fixed (+6dB), variable, output off (selectable)
Maximum output leve
2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))
4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))
6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable)
Output impedance
150Ω
Headphone outputs
Connector 1
1/4” (6.3mm) TRS stereo jacks×2 (gold-plated)
Polarity (balanced)
Tip: HOT, Ring: COLD, Sleeve: NC (GND)
Polarity (unbalanced)
Tip: L, Ring: R, Sleeve: GND
Connector 2
4.4mm 5-pole Pentaconn×1 (gold-plated)
Polarity (balanced)
Tip: L+, Ring1: L-, Ring2: R+, Ring3: R-, Sleeve: GND
Maximum output
Balanced
700mW + 700mW (into 32Ω)
Unbalanced
500mW + 500mW (into 32Ω×1)
350mW + 350mW(into 32Ω×2)
Active ground
500mW + 500mW (into 32Ω)
Supported impedances
16 to 600Ω
Clock section
Internal clock
Type
Crystal oscillator
Number of clocks
2 (44.1kHz and 48kHz)
External clock input
Connector
BNC (gold-plated)
Input frequency
10MHz
Input impedance
50Ω
Input level
Rectangle wave: equivalent to TTL levels
Sine wave: 0.5 to 1.0 Vrms
Audio performance
Frequency Response
10 to 80,000 Hz (+1/-3 dB, 192kHz PCM input, RCA output, digital filter off)
Total harmonic distortion
0.002% or less (192kHz PCM input, RCA output, digital filter off)
S/N ratio
110dB or higher (192kHz PCM input, RCA output, digital filter off)
Power supply
US/Canada
AC 120V 60Hz
UK/Europe
AC 220 to 240V 50Hz
Power consumption
18W (0.4W in standby)
dimensions (including protrusions)
290(W)×84.5(H)×248.7(D) mm / 11.4”(W)×3.3”(H)×9.8”(D)
Weight
4.2kg / 9.3lbs
Included accessories
Power cord, RCA mini plug adapter cable, remote control(RC-1330), 2 AAA batteries for remote control, 3 feet cushions, Owner's Manual(with warranty)
