Garantie: 24 luni
Specificatii:
MAXIMUM POWER (4 OHMS, 1KHZ, 0.7% THD, FOR EUROPE)
160 W + 160 W
HIGH DYNAMIC POWER/CHANNEL (8/6/4/2 OHMS)
105/135/190/220 W
DAMPING FACTOR
≧ 250 (1 kHz, 8 ohms)
FREQUENCY RESPONSE
+0 / -3 dB (5Hz-100kHz) , +0 / -0.3 dB(20 Hz-20 kHz)
RIAA EQUALIZATION DEVIATION
+/-0.5 dB (PHONO (MM/MC))
DIMENSIONS (W X H X D)
435×157×463 mm; 17-1/8″ x 6-1/8″ x 18-1/4″
WEIGHT
22.0 kg; 48.5 lbs
RECEIVER / INTEGRATED AMPLIFIER
RATED OUTPUT POWER
[20 Hz-20 kHz, 0.07% THD] 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
TOTAL HARMONIC DISTORTION (20HZ TO 20KHZ)
[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms)
SIGNAL-TO-NOISE RATIO
PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
INPUT SENSITIVITY
[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms

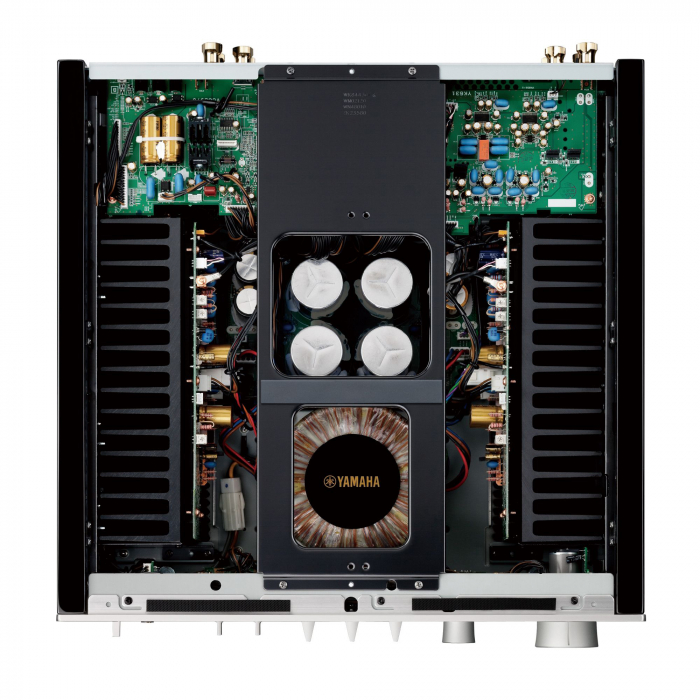

TRANSFORMER
625VA (Toroidal)
Dan P,
Yamaha S1200;
RaspundeUn amplificator excelent construit in stil clasic, autentic si placut pentru toate genurile de muzica.
Am constatat un"perfect match" cu DAC-ul HI FI Rose RS 250, impreuna genereaza un sunet pe masura asteptarilor mele.
AV Shop : calitate, seriozitate, rafinament si profesionalism!
Multumesc foarte mult.
A fost util acest review?
