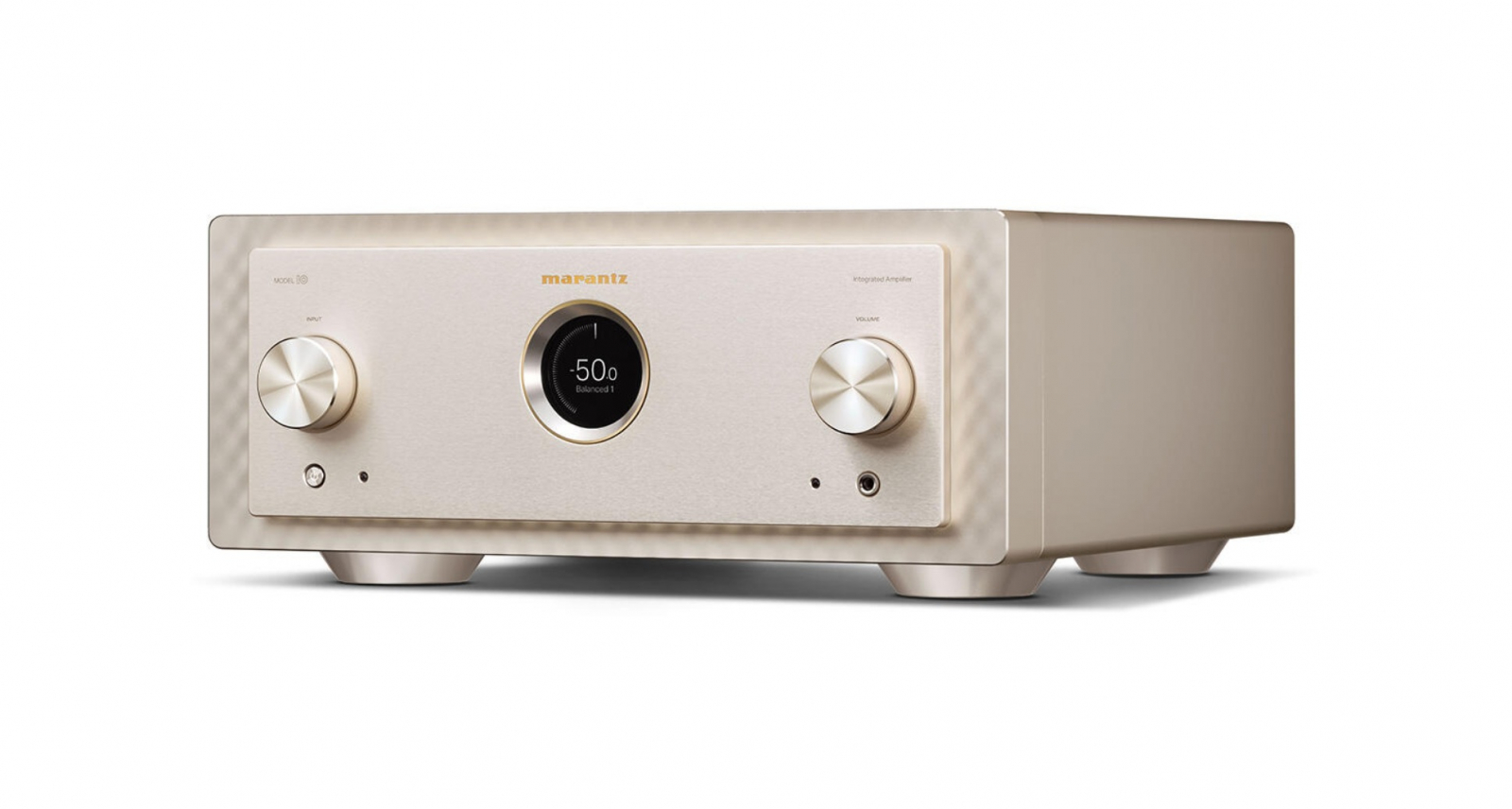

Amplificator Marantz Model 10

Specificatii:

Link producator:

Power and Amplification:

• Continuous Power Output: 2 x 250W into 8 ohms, 2 x 500W into 4 ohms;

• Amplifier Platform: Newly developed Marantz with Purifi technology, fully balanced amplifiers with dual mono topology;

• Power Amp Mode: With preamp bypass;

• Damping Factor: 500 (8 Ohm, 20 Hz – 20 kHz);


Frequency Response and Distortion:

• Frequency Response: 5 Hz – 60 kHz (0 / -3 dB), 20 Hz – 20 kHz (0 / -0.3 dB);

• Total Harmonic Distortion: 0.005% (125 W, 8 ohms, 20 Hz – 20 kHz);


Input and Output Specifications:

• Analog Inputs:

• Unbalanced (RCA): 3 pairs, 1 pair for dubbing, 1 pair for direct source input;

• Balanced (XLR): 2 pairs, 1 pair for direct source input;

• Phono MM/MC (RCA): 1 pair;

• Analog Outputs:

• Unbalanced Pre-Out (RCA): 1 pair, Unbalanced Line-Out (RCA): 1 pair;

• Balanced (XLR): 1 pair;

• Speaker Outputs: 2 pairs;

• Headphone Output: 130 mW at 32 Ohm;

• Input Impedance / Sensitivity:

• Unbalanced input: 41 kOhm / 350 µV;

• Balanced input: 36 kOhm / 700 µV;

• Phono MM input: 436 kOhm / 3.6 µV;

• Phono MC input: 400 µV / 33 kOhm;


Signal-to-Noise Ratio:

• Line Input: 122 dB;

• Phono MM: 88 dB;

• Phono MC: 76 dB;

• CD Input: 122 dB;


Display and Controls:

• Front Panel Display: New HD TFT Color Display, level meter, volume display (-infinity/-99.5dB - 0dB / 0.5 step, switchable);

• Dimmer for Front Display: 20 steps;

• Remote Control: RC004PMND, battery-powered (AAA x 2);

• Last Function Memory: Yes;

• Auto Standby Mode: Yes;


Power and Consumption:

• Power Voltage: 230 V, 50 / 60 Hz;

• Power Consumption: 270 W, 0.2 W in standby mode;


Additional Features:

• Bi-wiring: Supported;

• Phono Preamplifier: Built-in proprietary phono preamplifier for MM / MC;

• Recording Inputs and Outputs: Available;

• FLASHER IR IN jack: Available for external control device connection;

• Stereo Complete Bi-amp Connection: Supported;

• Connection for 5.1 Multi-channel Playback: Supported;


General Specifications:

• Dimensions: 440 mm x 192 mm x 473 mm (17.3" x 7.56" x 18.6");

• Weight: 33.7 kg (74.3 lb);

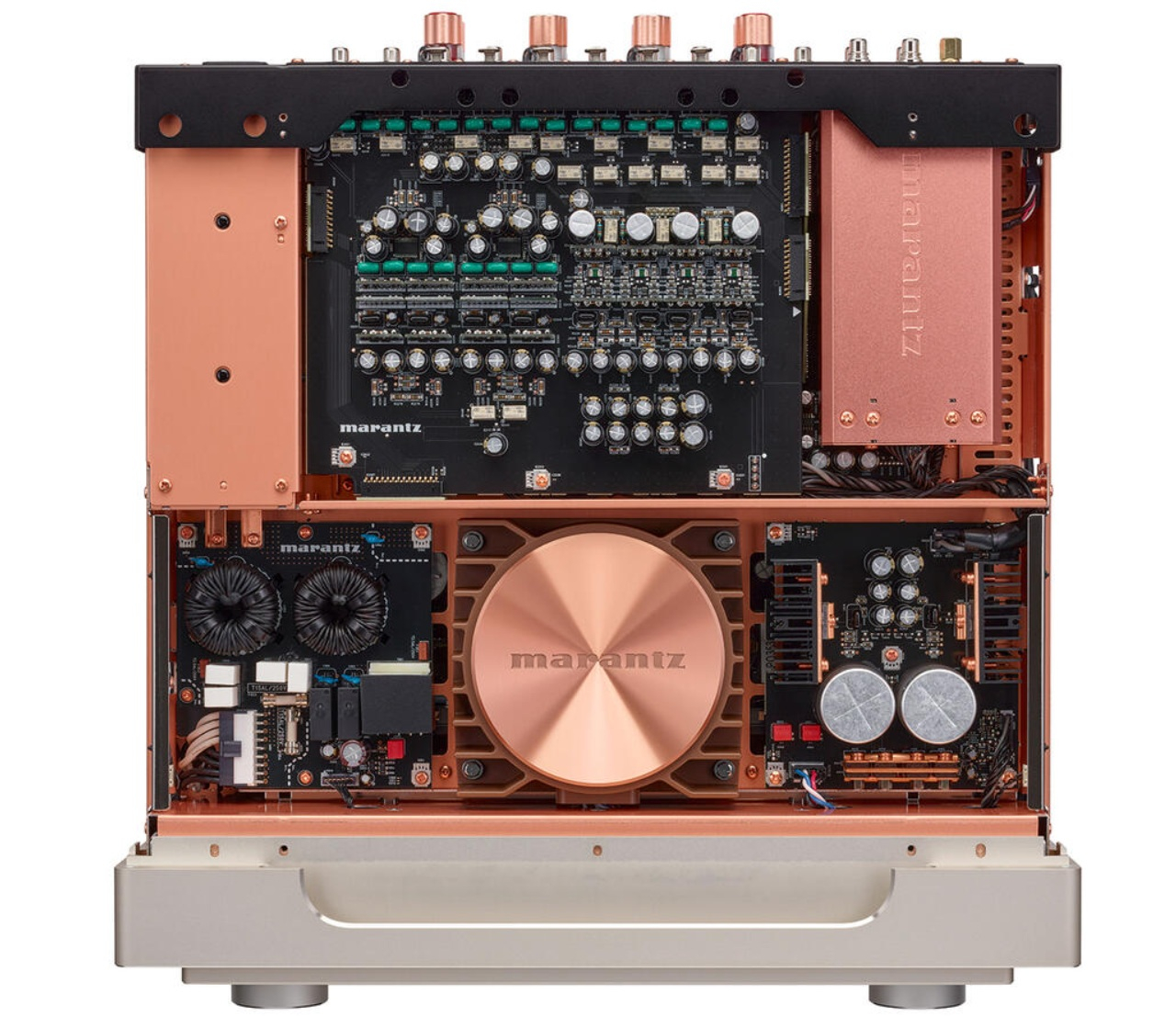

• Cabinet Material: Copper-plated chassis, aluminum front and top covers;

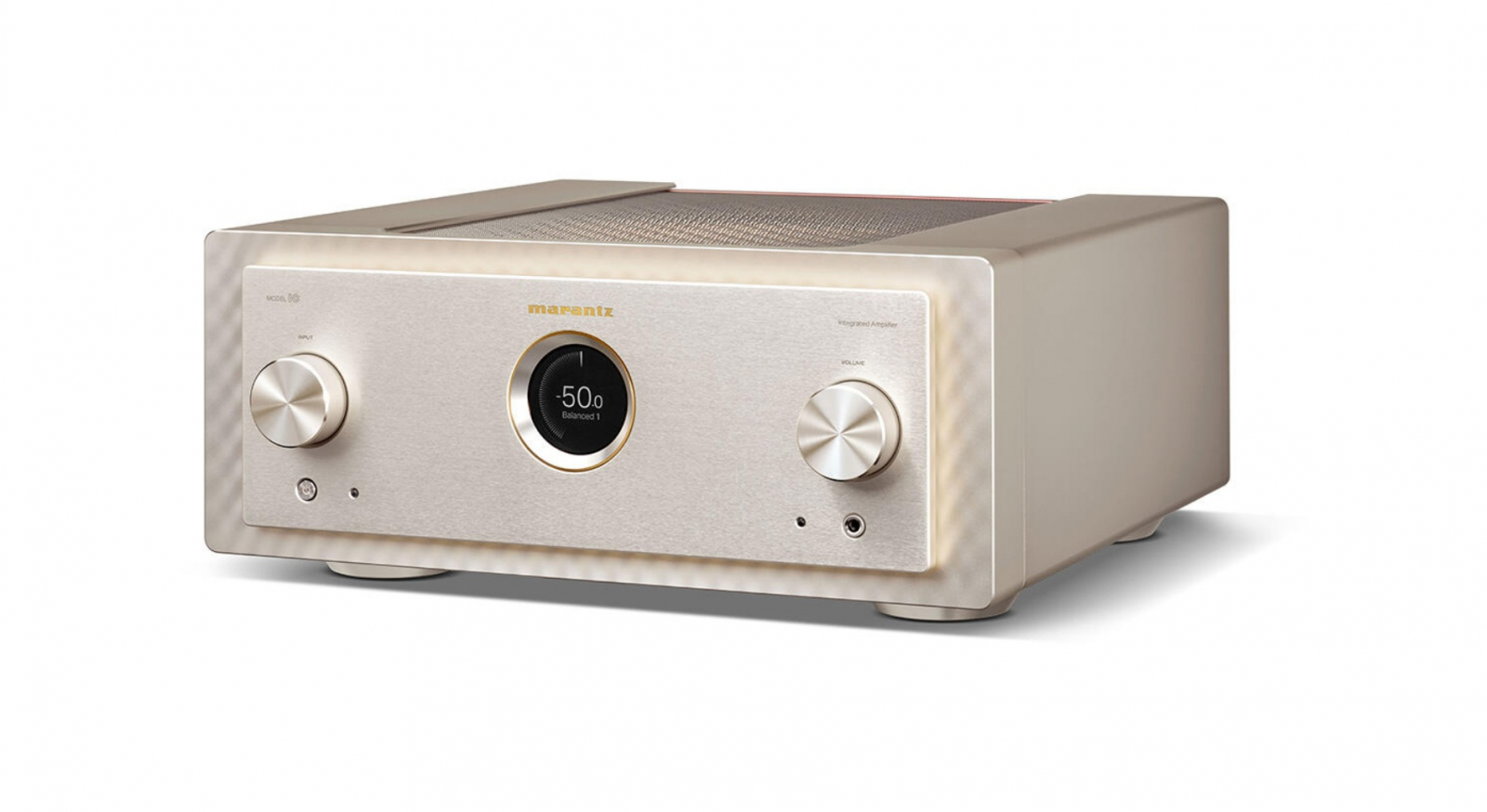

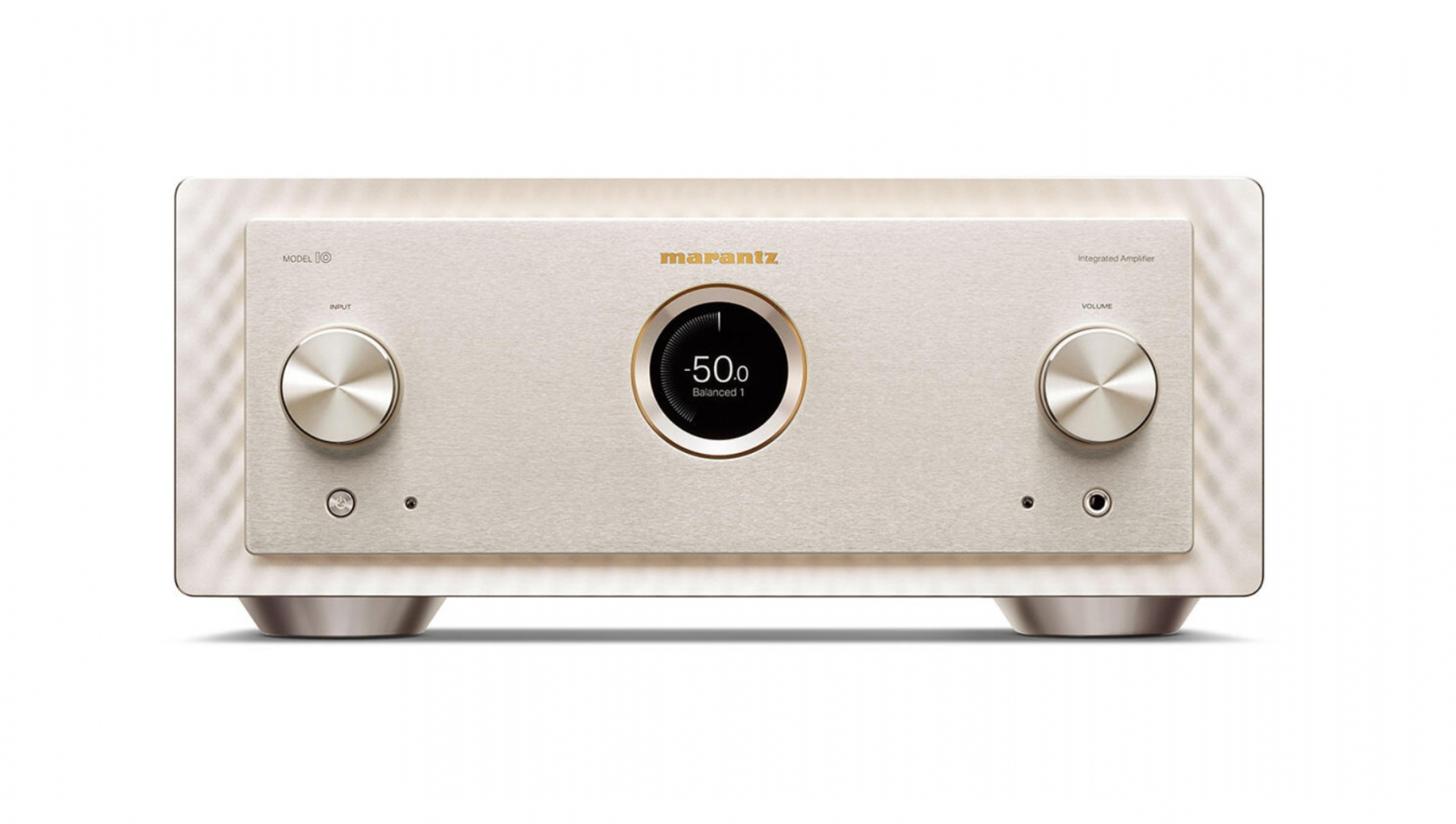

• Front Panel: Brushed aluminum, anodized machined aluminum, with front panel illumination and dimmer;

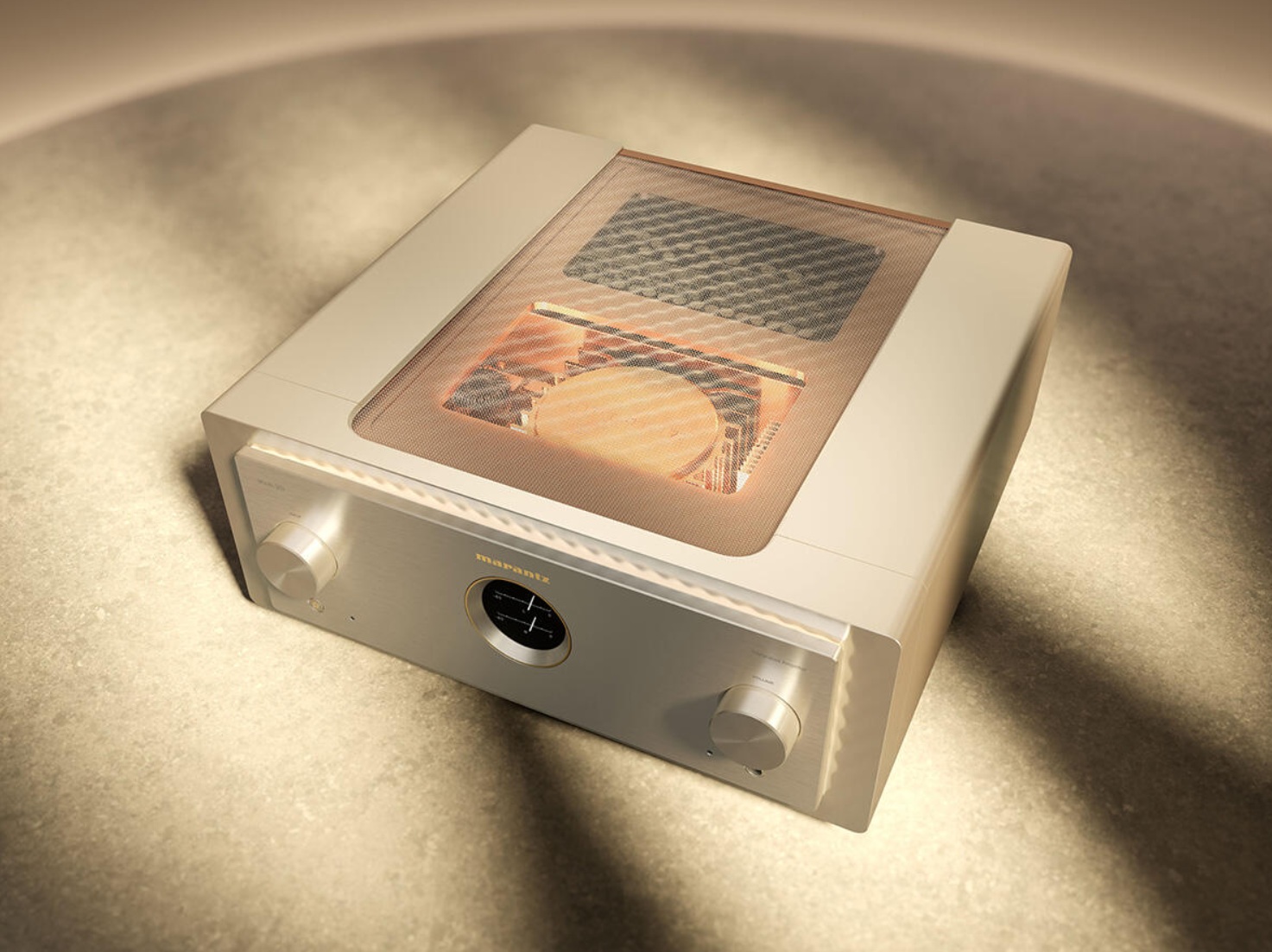

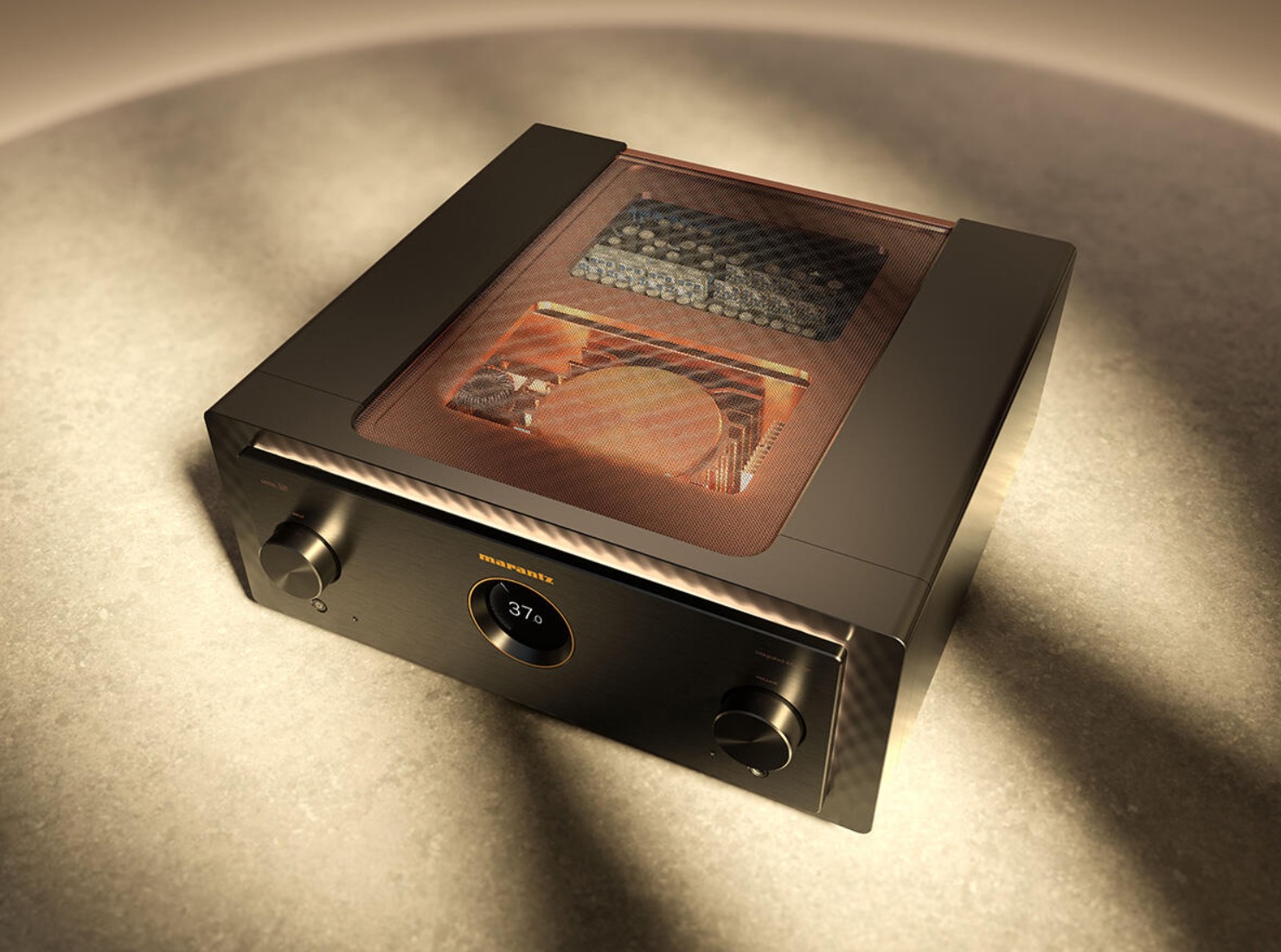

• Top Cover: Aluminum with stainless mesh ventilation hole, interior illumination;

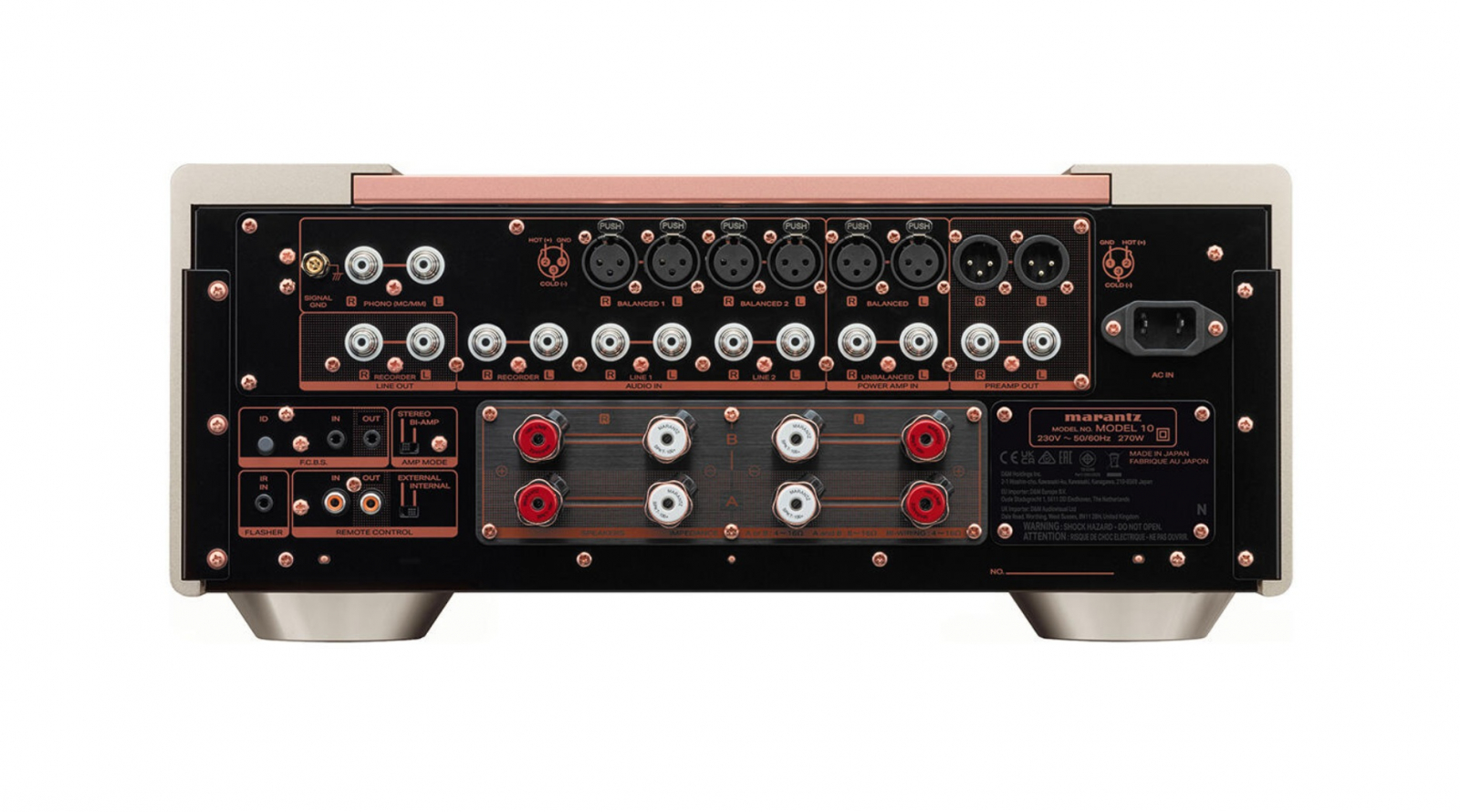

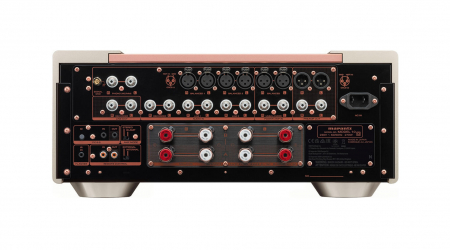

• Rear Panel: Copper plated.
