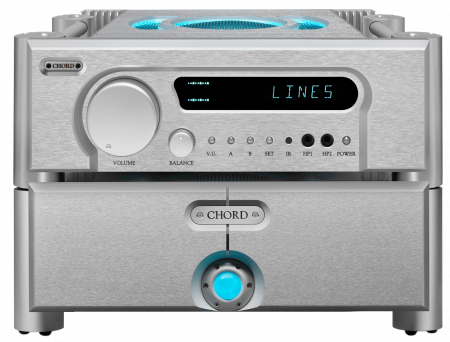

Preamplificator Chord Electronics ULTIMA Pre 2

Specificatii:
Link producator:
https://chordelectronics.co.uk/product/ultima-pre2/

Alte caracteristici:

Raspuns in frecventa: 2.5Hz – 200kHz +/- 3dB;

THD: 0.002% 20Hz – 20kHz;

Intermodulation Distortion: -115dB on all inputs;

Channel Separation: 20Hz @ 100dB, 1kHz @ 95dB, 10kHz @ 90dB, 20kHz @ 85dB;

Channel Balance: 0.01dB;

Input Max Voltage: 17v RMS Balanced – 8.5v RMS Unbalanced;

Output Max Voltage: 17v RMS Balanced – 8.5v RMS Unbalanced;

Output Offset: 0mV (Both Channels);

Potentiometer Performance: 0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB (13seconds Full Travel);

Nominal Gain: All inputs subject to six levels of switchable gain – x0.5, x1, x1.5, x2, x2.5, and x3;

Impedanta de iesire: 100Ω (Short Circuit Protected);

Dimensiuni:
(W x D x H): 420 x 355 x 133mm (fara picioare Integra);

480 x 355 x 173mm (cu picioare Integra):

Greutate:
18 kg;

Impedanta de intrare:
100 kΩ Balanced – 50 kΩ Unbalanced;

Raport Semnal/zgomot:
-120dB on all inputs.
