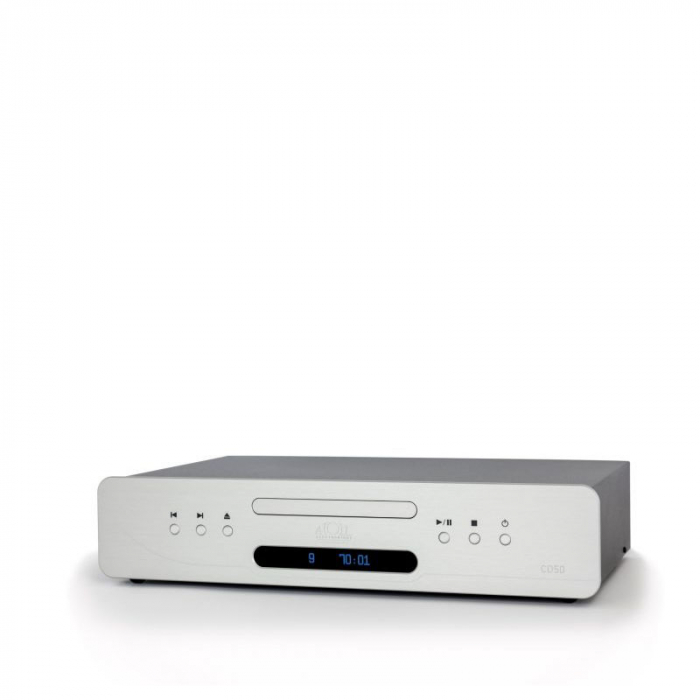

CD Player ATOLL CD50 SIGNATURE

• Pure audio CD drive from TEAC
• Supplies of audio stages with linear transformer
• Linear supply of digital stages with specific 30VA transformer
• 4 regulated supplies
• BURR-BROWN PCM1793 converter
• differential audio outputs with discrete components polarized in A class
• DC coupling (no link capacitor)
• 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium keys
• Serial remote control
• CD text
• Readable files: CD, CD-R, CD-RW. Formats: MP3-WMA-AAC

• Low consumption OLED display

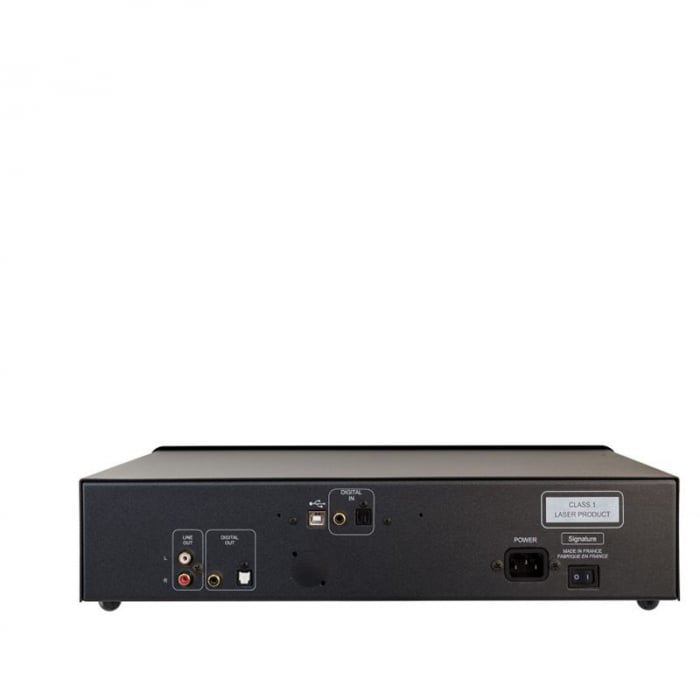

• 1 analog and 2 digital outputs (coaxial & optical)

The CD50 Signature can be equipped with an optional board including 3 digital inputs:
– 1 digital input Coaxial (24 bits/192kHz)
– 1 digital input Optical (24 bits/192kHz)
– 1 USB input:PCM from 16 bits to 24bits up to 192 kHz (asynchronous).
USB : XMOS with specific program designed for ATOLL.

All CD players are equipped with a serial remote that allows to control other ATOLL’s devices (Integrated, preamp, Tuner, DAC).

It also allows several basic functions of the CD player such as program, repeat, random, etc.
