Specificatii:


Technical Specifications
Audio Format :
WAV - up to 32bits/384kHz;
FLAC and AIFF - up to 24bit/384kHz;
ALAC (Apple Lossless) - up to 24bit/384kHz;
MP3 - up to 48kHz, 320kbit (16 bit);
AAC - up to 48kHz, 320kbit (16 bit);
OGG and WMA - up to 48kHz (16 bit);
DSD - 64 and 128Fs;
M4A - up to 48kHz, 320kbit (16 bit);
Note: Gapless playback supported on all formats.

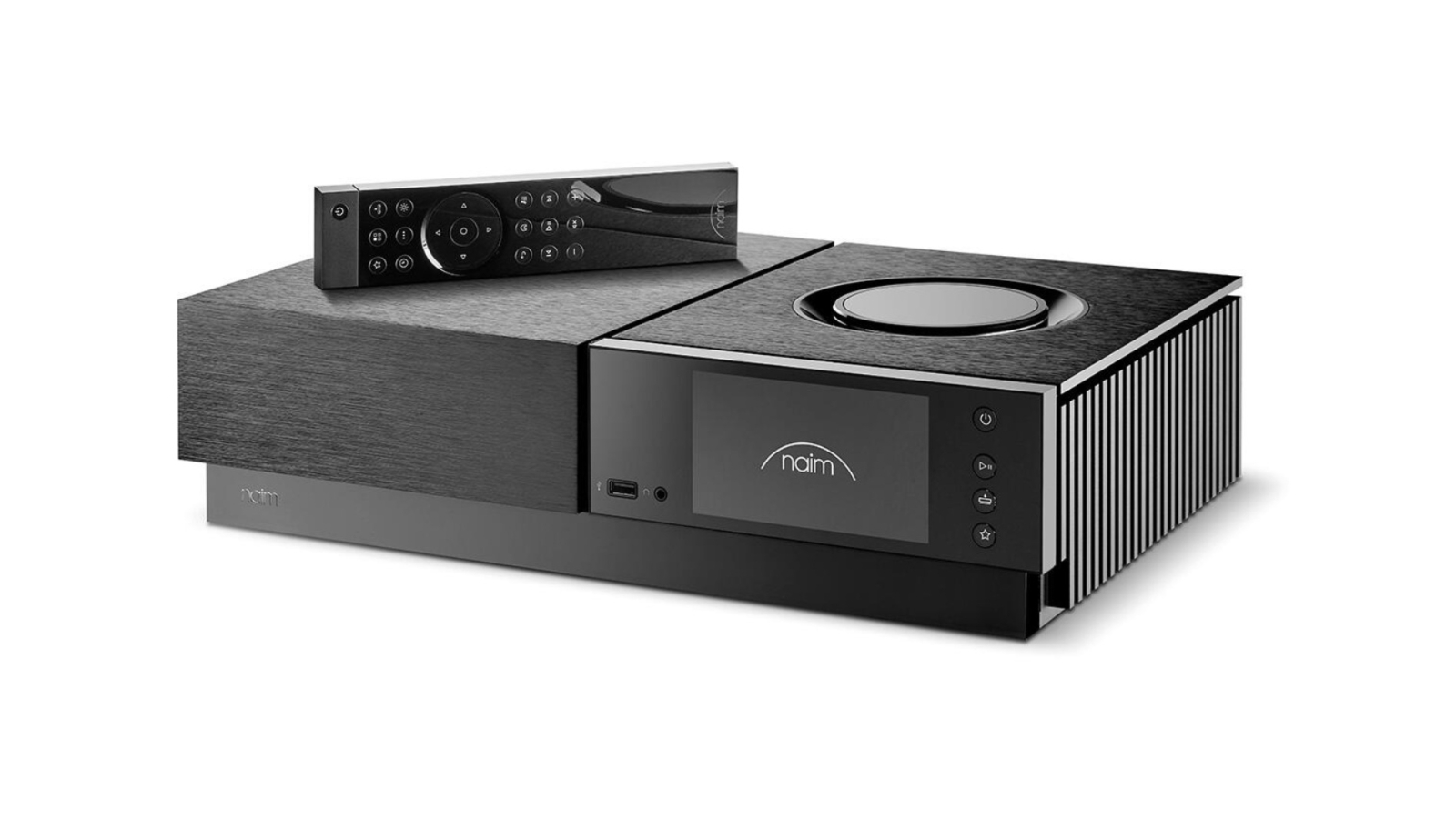

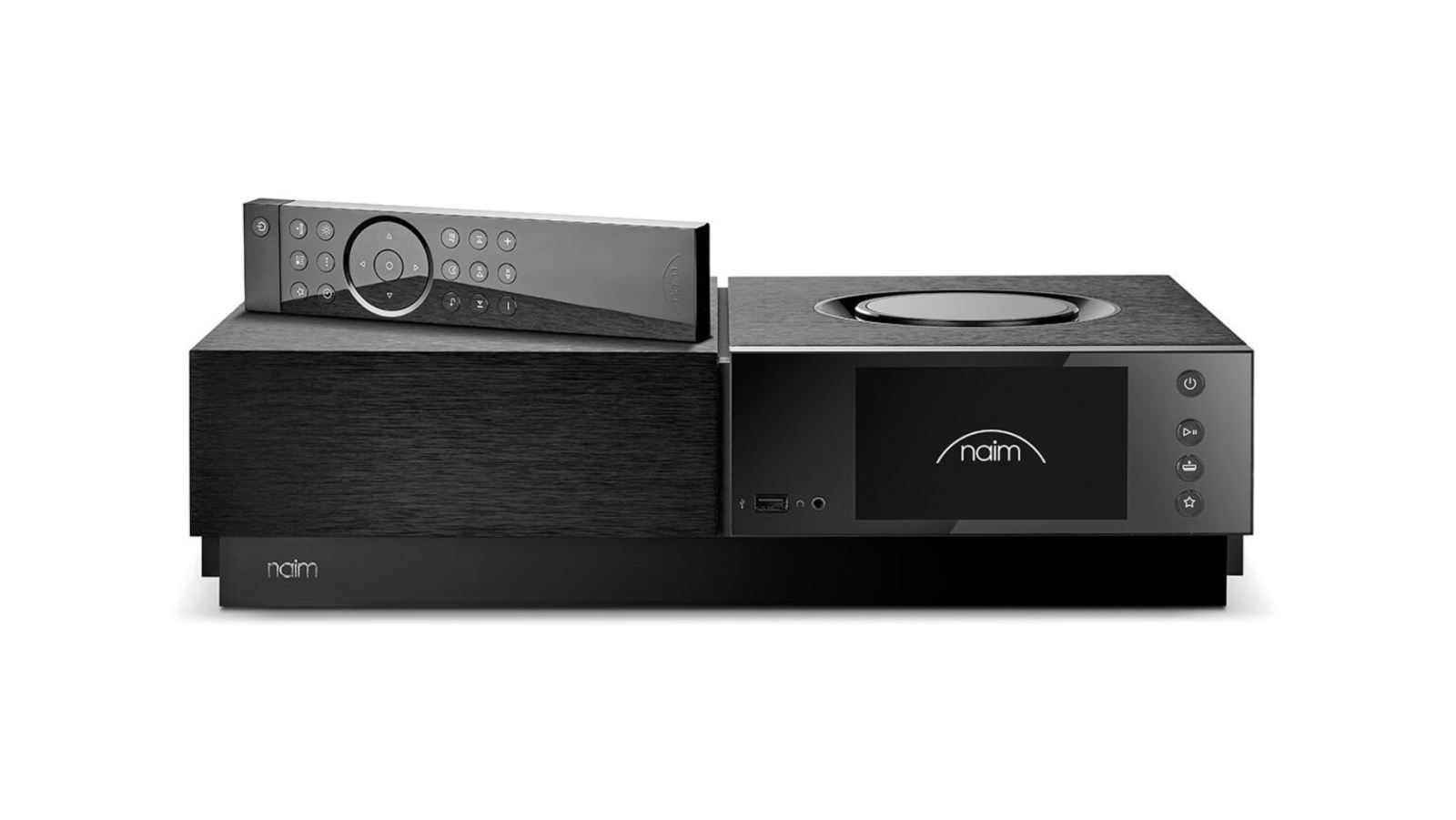

Product type : all in one player;
Supported sampling rates :
USB : 44.1kHz - 384kHz (16 to 24bit);
S/PDIF : 32kHz - 192kHz (up to 24bit);

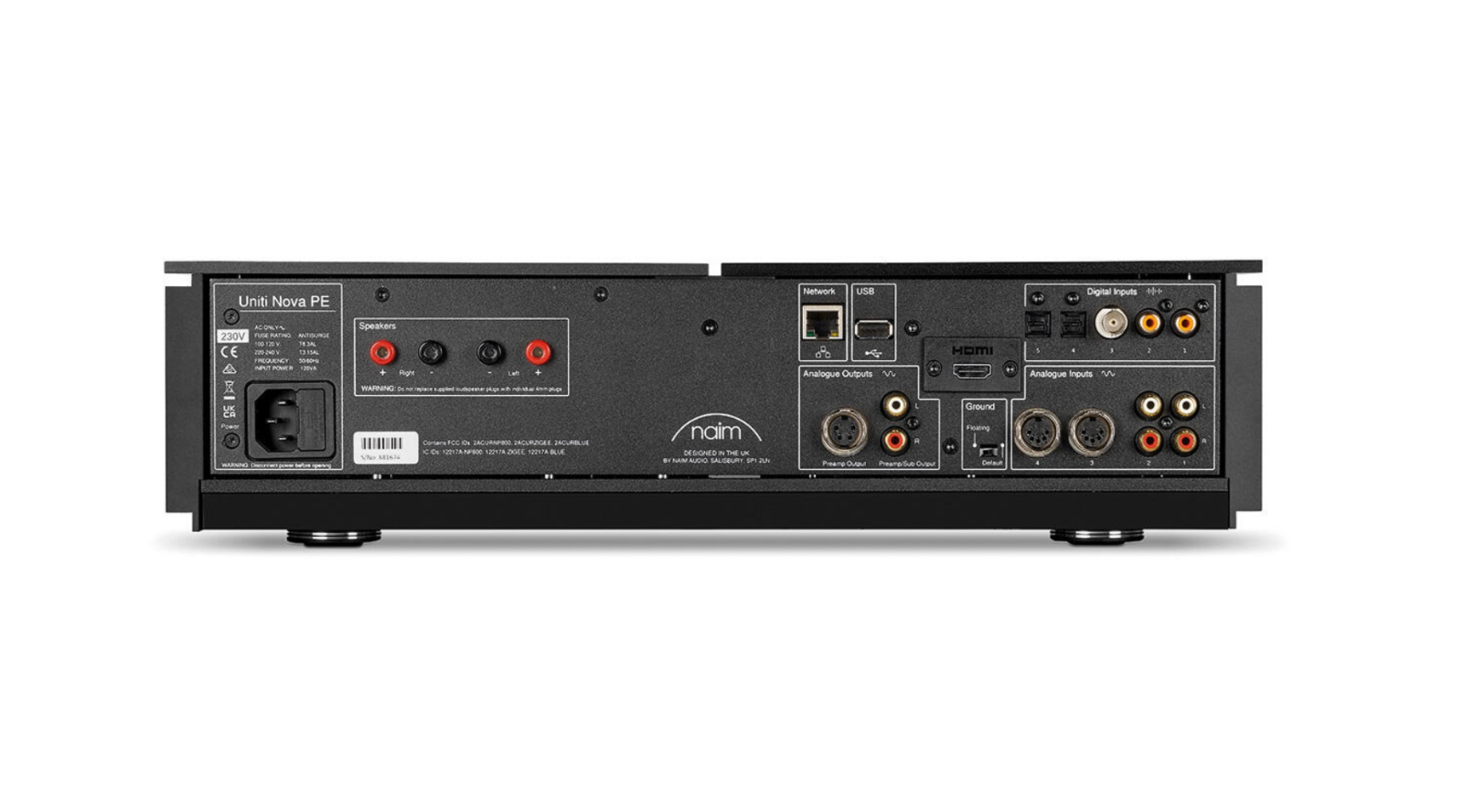

Inputs/Outputs Specifications
Analogue inputs :
2x 5-pin DIN;
2 x RCA;
Analogue outputs :
1 x Stereo power amplifier;
1 x 4-pin DIN;
1 x RCA pair;
1 x 3.5mm headphone jack;
Digital inputs :
2 x optical TOSLink (up to 24bit/96kHz);
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs);
1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs);
Other inputs : HDMI-ARC;
Power Output :
150W per chanel into 8 ohm,@0,1 THD + N, class D;
USB ports : 2 x USB Type A Socket (front and rear – 1.6A charge);


Streaming / Sources

WiFi :
Wi-Fi (802.11 b/g/n/ac) with internal antenna, integrated into the heat sink (patent GB2524815B);
Internet Radio Formats : Windows Media-formatted content, MP3, ACC, Ogg Vorbis streams and MMS;
Multi-Room :
Multiroom streaming and its "Party Mode" (sync up to six Naim streamers), and control them via the "Focal & Naim" application;
Network : Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac), BLE v4.2;
Storage :
Store up to 20,000 tracks to a local USB connected storage device and serve to a network-connected player.;
External portable SSD – max. 1TB;
USB sticks – max. 128 GB.;

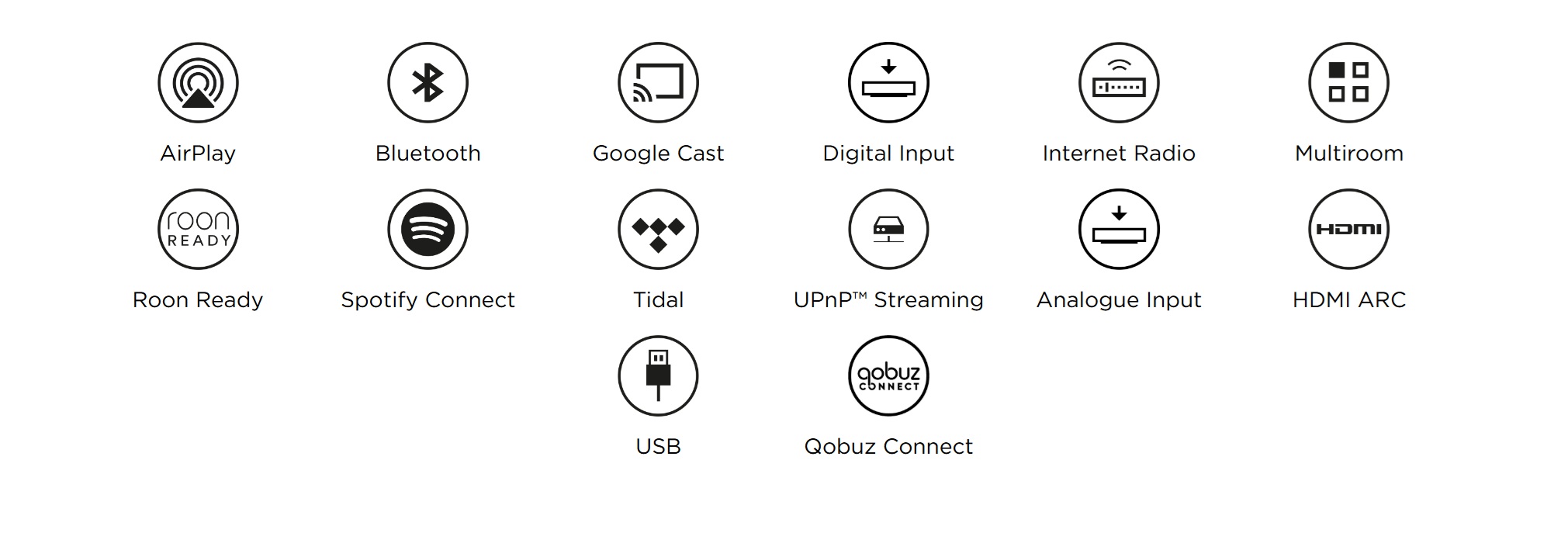

Streaming : Apple AirPlay 2, Bluetooth, Google Cast, Internet Radio, QOBUZ, Roon Ready, SPOTIFY® Connect, TIDAL, UPnP™;

Control
App control : "Focal & Naim" App;

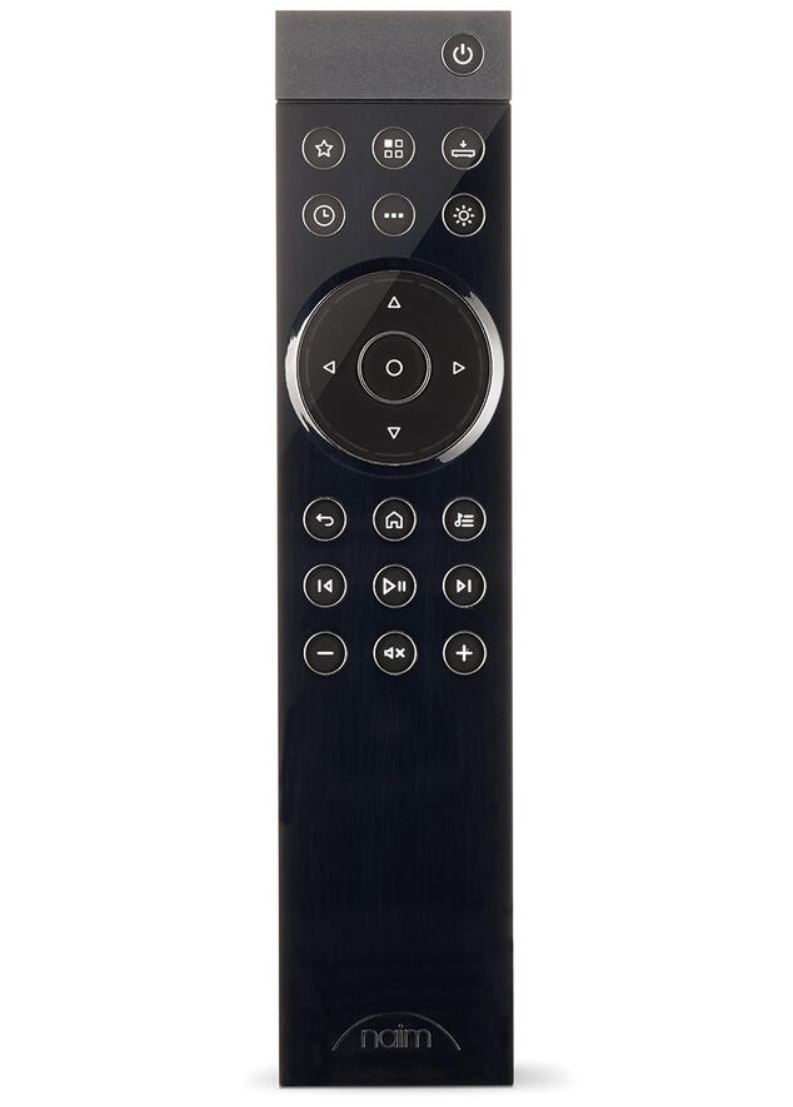

Control system : Zigbee RF bi-directive remote control;
Supported mobile operating system : Android, iOS;
Updates : Update your system by wireless connection via the Focal & Naim application;
User control product :

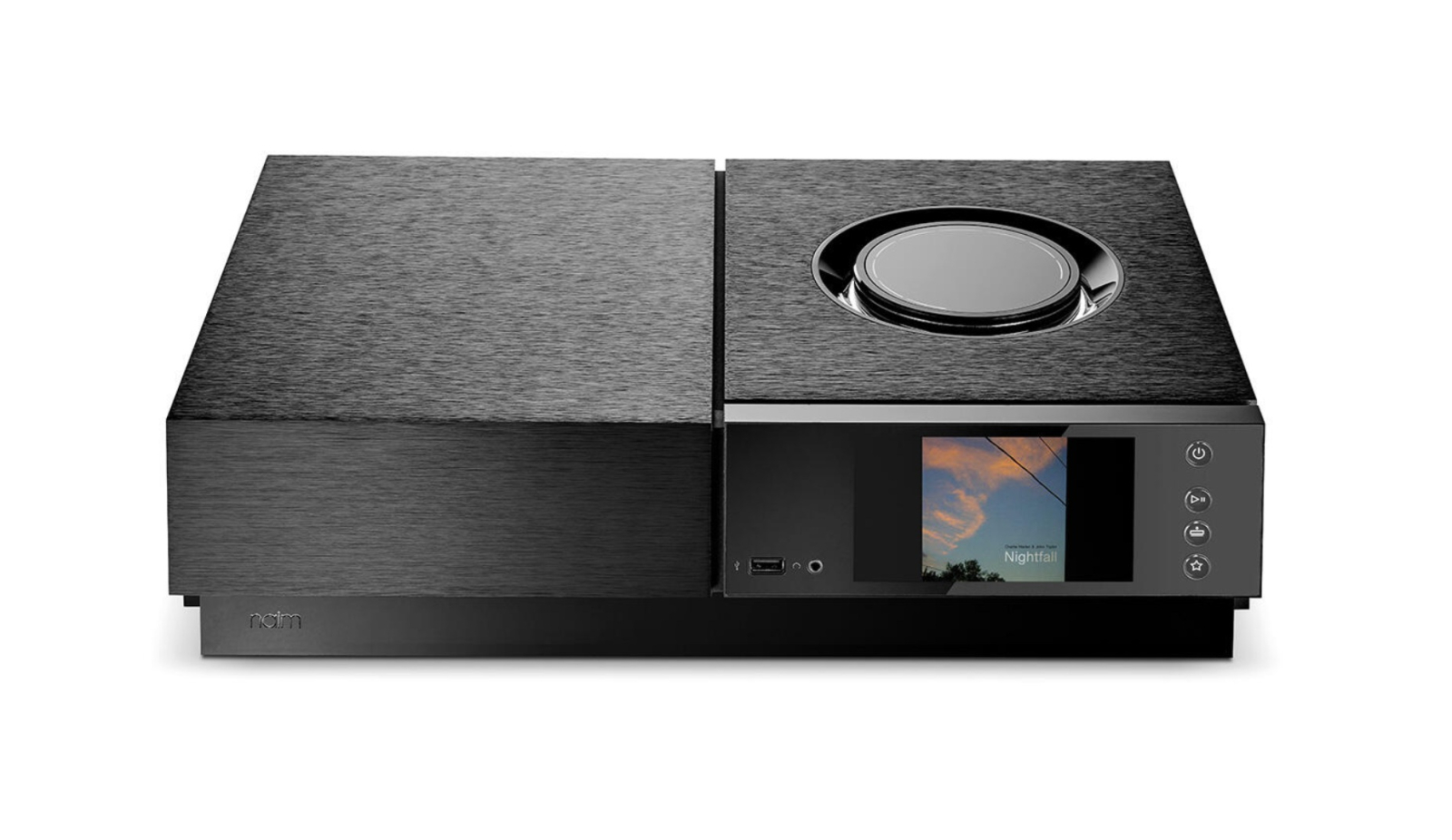

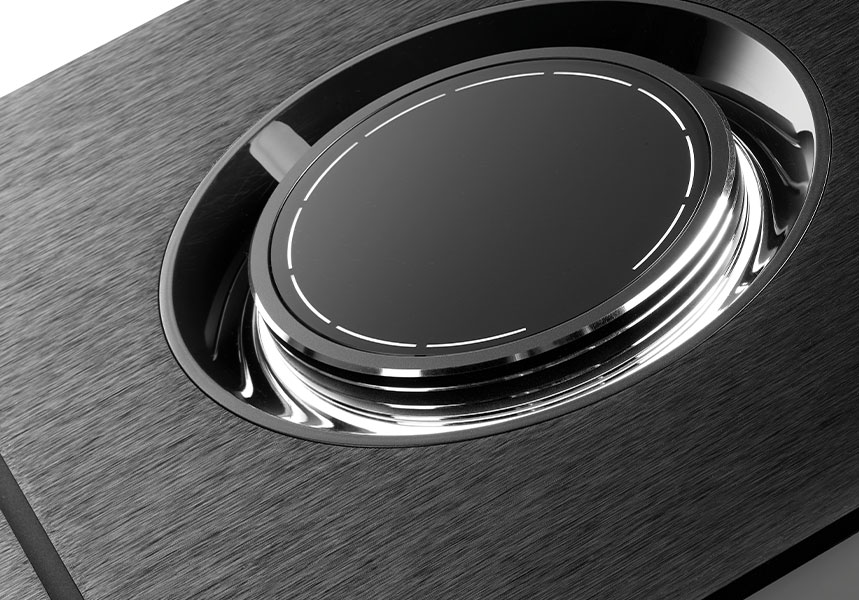

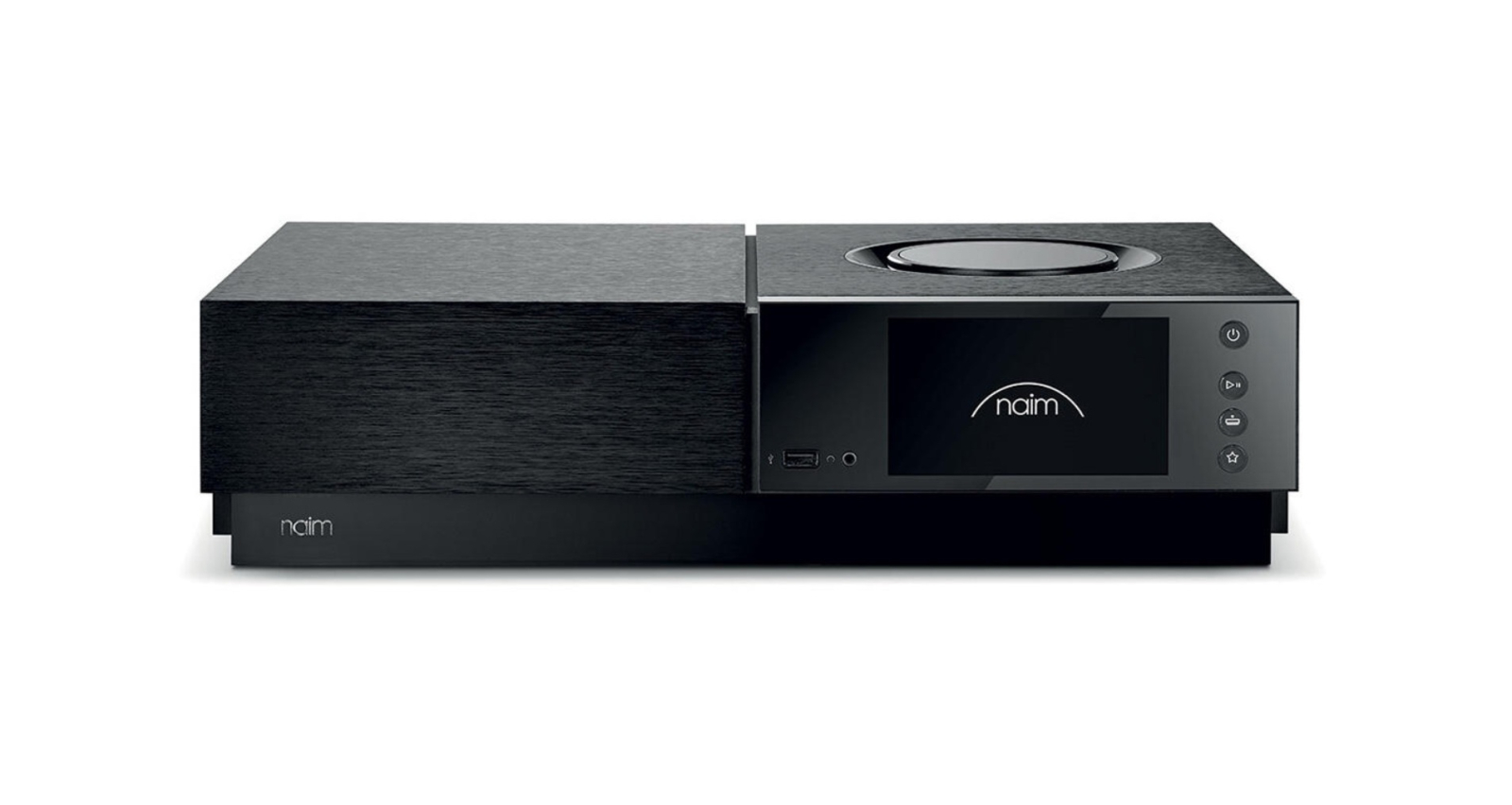

5" colour LCD display, rotary volume control and four buttons;

Power Supply
Automatic standby time : User selectable: ON/OFF (up to 2h);
Power consumption (quiescent) : < 0.5W;
Power consumption in network standby mode : < 2W;
Consumption in normal use : 120 W;
Mains cable : PowerLine Lite;
Mains power supply : 115V or 230V, 50/60Hz;

Design
Depth : 26.5 cm / 10.43 in;
Height : 11.6 cm / 4.33 in;
Width : 43.2 cm / 16.9 in;
Weight : 15.1 kg / 33 lb.
