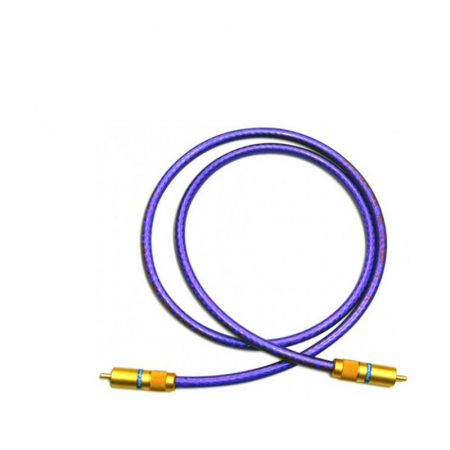

Cablu audio Van den Hul The MC Silver IT 65G RCA - RCA
For a lot of audio freaks, our MC - SILVER IT Mk II Coaxial is just a dream product but too expensive and not everywhere available for listening. To make life somewhat easier for our audio friends we have therefore introduced the MC - SILVER IT 65 G, a slimline version of our MC - SILVER IT Mk II Coaxial. The MC - SILVER IT 65 G is a 65 GHz. bandwidth cable with the same superior audio qualities as found with the MC - SILVER IT Mk II Coaxial, though at around half the price.
With the MC - SILVER IT 65 G all production handling is done with extreme care and maximum attention is paid to maintain a very constant characteristic impedance along the whole cable, as well as in the micro domain, to prevent signal reflections even up to very high frequencies.
The centre lead consists of 19 extreme high grade Matched Crystal (MC) extruded OFC strands with a very thick and dense extruded Matched Crystal (MC) purest silver coating applied in a mechanical processing step.
The diameter of this centre conductor is: 1.4 mm. and the cross-section area is 1.17 mm². The centre lead resistance is a remarkably low: 1.43 Ohm/100 m.
The typical capacitance is: 83 pF/meter.
The insulation between core and shielding is made of Teflon tape in several layers exhibiting a typically low relative dielectric constant of 1.4.
The double shielding is made of a 96 x 0.10 mm. Matched Crystal (MC) OFC wire braiding with a very thick and dense coating of very pure silver with underneath a helically overlapping wound very pure 2.5 x 0.05 mm. silver ribbon.
The external insulation is made of the special HULLIFLEX ® EHD material. This specific insulation material is too costly to be used in all our products.
MC - SILVER IT 65 G exhibits an extremely extended frequency range of 65 GigaHertz.
Precautions must be taken to prevent bending around a very small radius. The minimum safe value of the bending radius is 58 mm. The external diameter of the MC - SILVER IT 65 G is: 5.8 mm.; a size that perfectly matches our 5.5 mm gold RCA connector.
Packing: depending on ordered length. But with great care and full attention to prevent any damage.
The MC - SILVER IT 65 G is available in stereo pairs packed in a luxe wooden box with RCA (unbalanced) connectors in 0.6, 0.8, 1.0, 1.2 and 1.5 m. lengths.
The MC - SILVER IT 65 G is furthermore available in any other specified lengths, starting from 60 cm.
Product category: interconnect - Unbalanced, Digital, High-end
Design purpose: Interconnect for asymmetric signal transport at highest quality level
Eff conductor: Core: 1.17 mm² / Core: AWG 16.5 / Core: 19; Screen: 96 + Ag tape
Resistance: Core: 1.43 Ohm/100 m.; Screen: 0.91 Ohm/100 m.
Capacitance: 83 pF/m.
Connector types: Our RCA type C - 5.5; Custom mountable on any ordered length.
Standard sales units: Stereo pair packed in luxe wooden box with RCA (unbalanced) connectors in 0.6, 0.8, 1.0, 1.2 and 1.5 m. lengths; Other lengths: please consult your van den Hul dealer or the van den Hul distributor in your country.
In the MC - SILVER series furthermore available are: The MC - SILVER IT Mk II Balanced, The MC - SILVER IT Mk III Balanced and The MC - SILVER IT Mk II 75 Ohm.
IMPEDANTA: 50 Ohm Ohm CULORI DISPONIBILE: Cobalt albastru transparent DIAMETRU: 5.8 mm IZOLATIE: PTFE tape; Jacket: HULLIFLEX ® EHD / 300 Vrms min. MATERIAL CONDUCTOR: Strands with a thin high purity Matched Crystal OFC core and a thick High purity dense Mat MATERIAL: Silver TIP: Coaxial
50 Ohm Ohm
Cobalt albastru transparent
PTFE tape; Jacket: HULLIFLEX ® EHD / 300 Vrms min.
Strands with a thin high purity Matched Crystal OFC core and a thick High purity dense Mat
