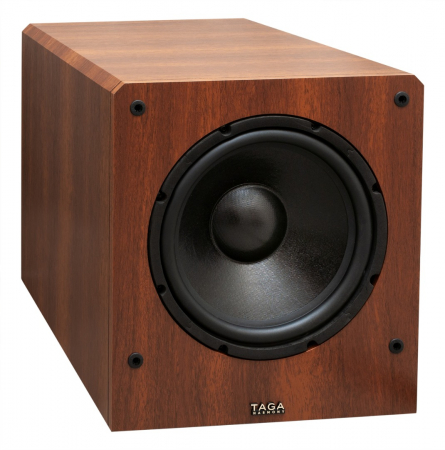

Subwoofer activ Taga Harmony TSW-210

CABINETS




Subwoofer cabinet design and built-quality is one of the most critical elements influencing sound performance.

We have developed TLIE (Taga Low Interference Enclosures) cabinets to increase stiffness and limit any unwanted resonances of the enclosure. The TLIE cabinets are built with high density and quality MDF boards and stand on solid feet which provide good isolation from the floor.

The beveled top side edges not only look modern and eye-catching but also play a significant role in lowering unwanted vibrations, diffraction, turbulences and standing waves effect, which can negatively affect subwoofer’s sound performance.

Acoustic damping material used inside enclosures eliminates problem of internal standing waves.

Carefully selected high quality vinyl finishes are very durable, elegant, imitate natural wood texture and are very pleasant in touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best looks.


BASS DRIVER



1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. Rigid metal chassis with anti-oxidation surface process
6. ASV bobbin copper wire voice coil
7. Spider
8. Paper cone and rubber surround
9. Paper dust cap



Paper cone woofers are equipped with ferrum injection-molded chassis, oversized Φ156 (TSW-212) / Φ140 (TSW-210) magnets and heavy-duty voice coils.
The cone and dust cap are very light and rigid allowing for fast and easily motion.  Elastic rubber surround offers extended cone excursion, which results in increased speed and range.
The driver design supports high power handling and provides deep, strong, precise and detailed bass.


BASSREFLEX

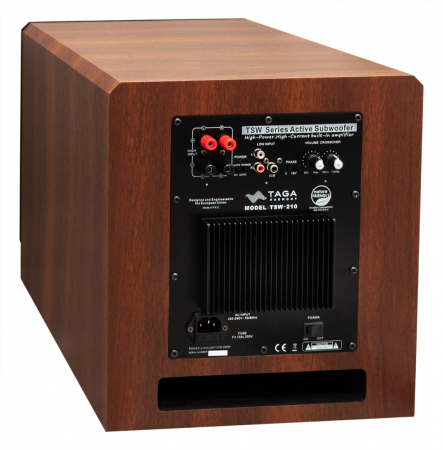

Low-turbulence and high-velocity rear slotted port provides exceptional dispersion of low frequencies and is located very close to the floor.


AMPLIFIER

High Current Amplifier utilizes very well designed boards layout and high quality components to provide reliability and the highest possible bass quality.
An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels.
High quality copper wire toroidal power transformer provides stable energy which is available at all power levels.
