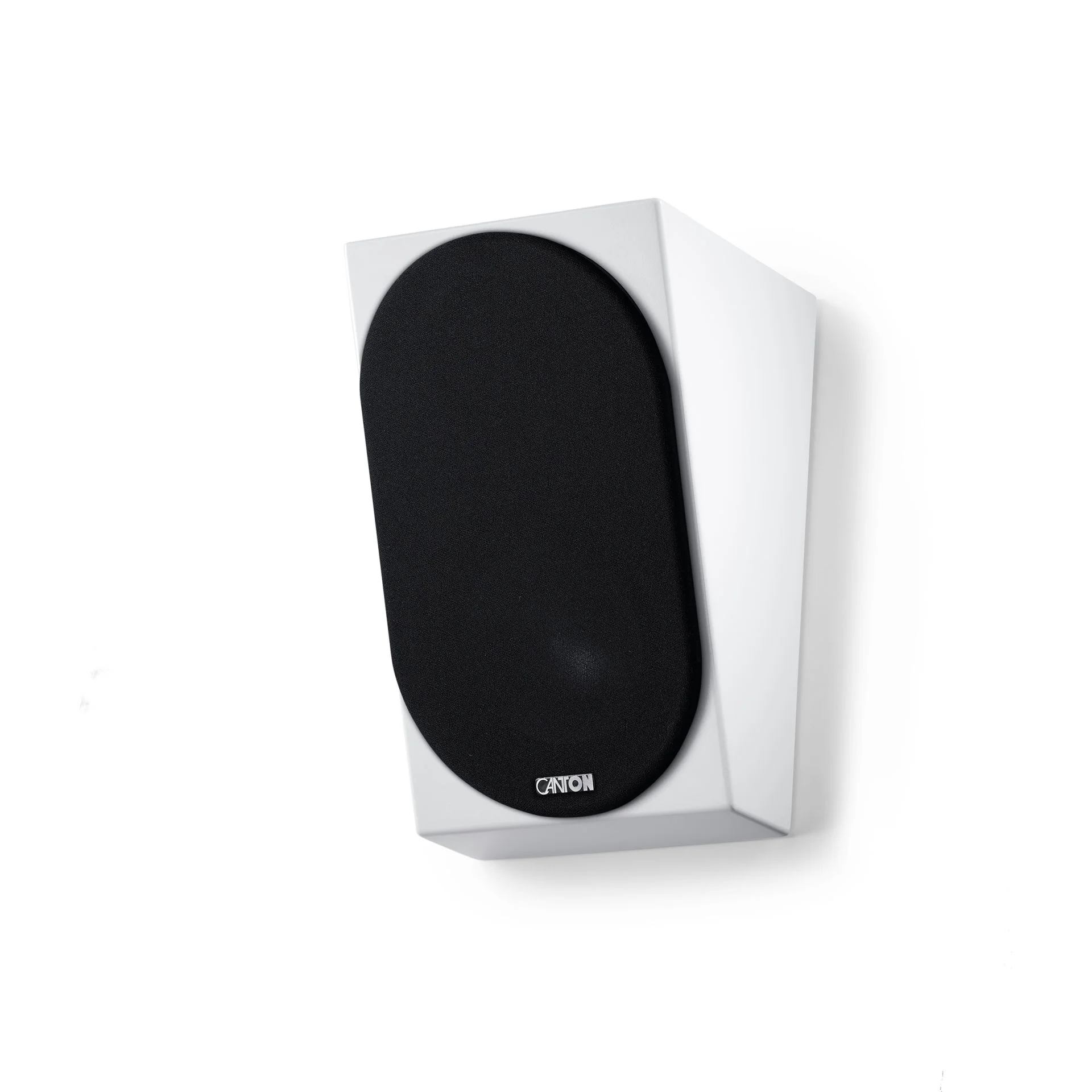

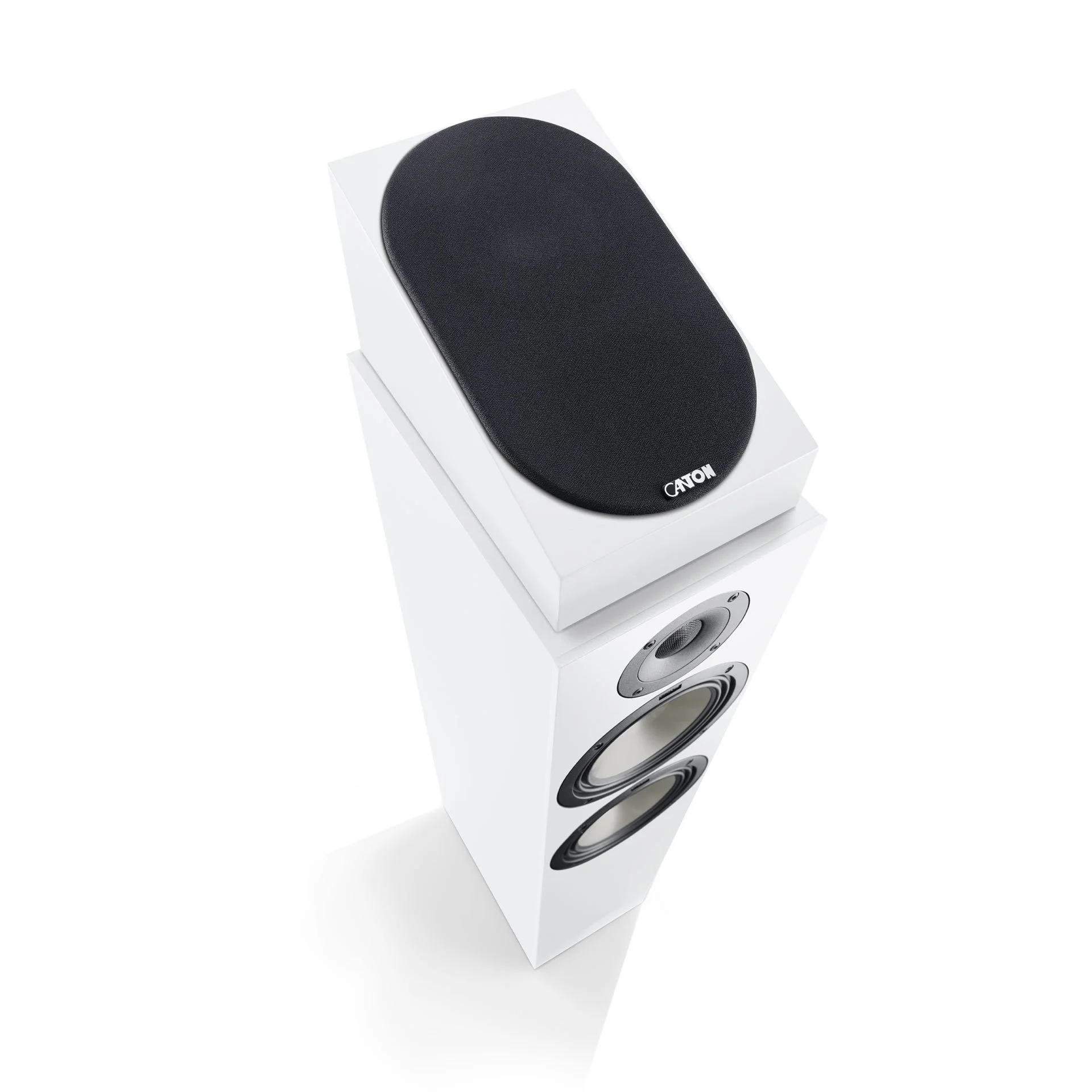

The compact AR 4 are designed to be restrainedly elegant, making them available as universal attachment loudspeakers for shelf and floor loudspeakers. Thanks to the cleverly matched housing dimensions, the attractive Dolby Atmos loudspeakers are ideal for a wide variety of loudspeaker series. The closed housings are stable and available in high-quality lacquer version in black and white. Removable fabric covers in the corresponding colors stick magnetically on the baffles and give the AR 4 an attractive face. In addition, they offer a secure protection without negatively affecting the sound of the Dolby Atmos loudspeaker.
Construction and technology

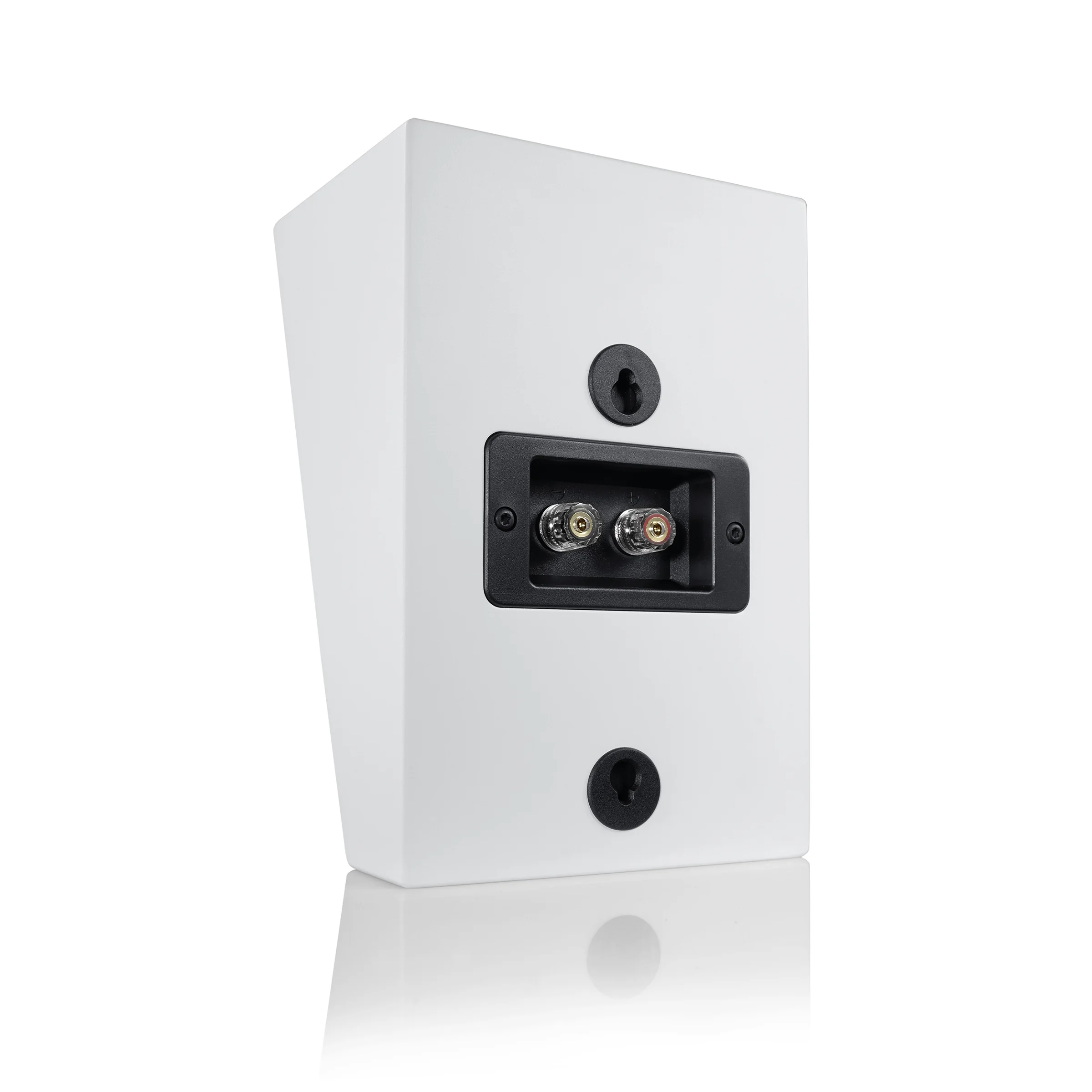

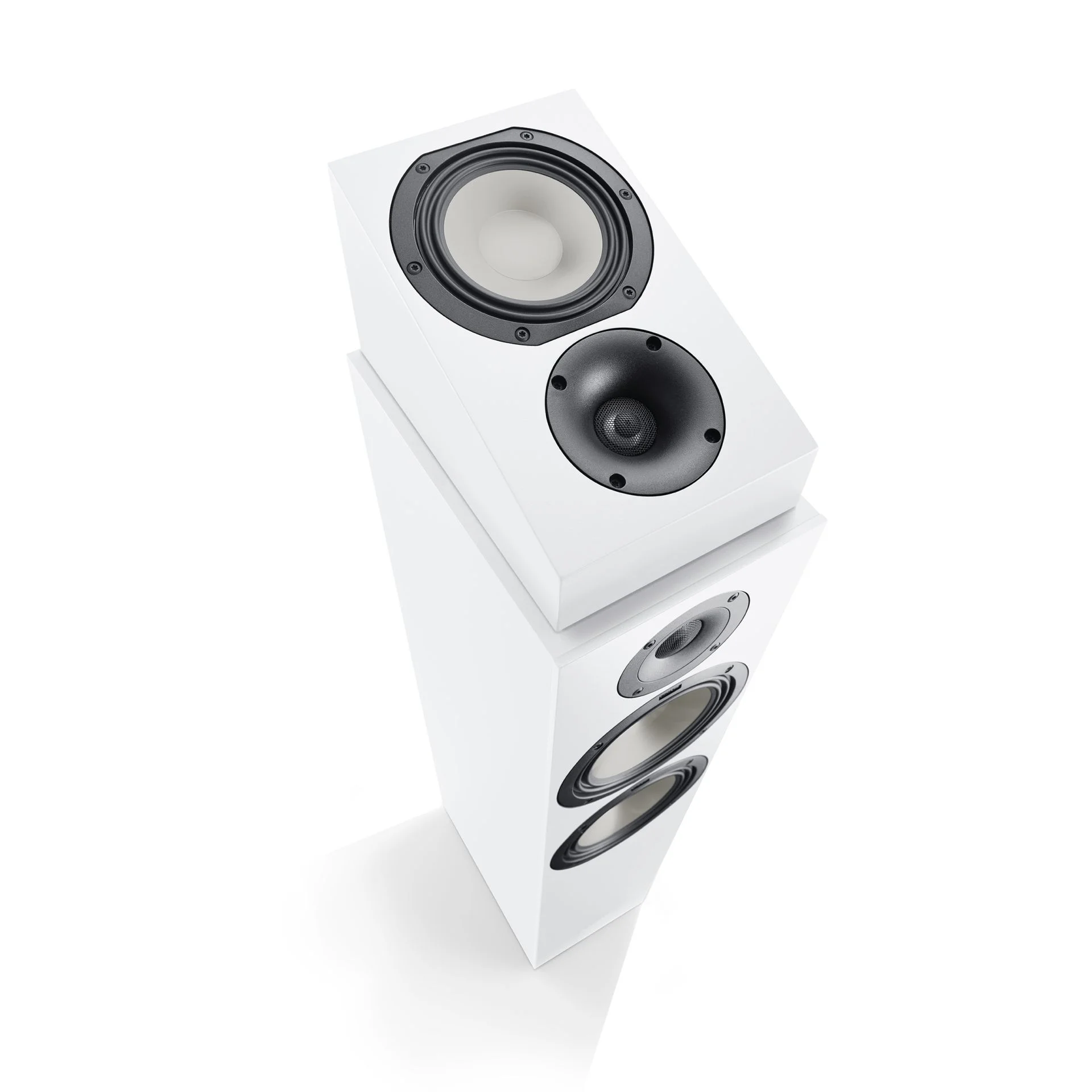

The AR 4 is a 2-way compact speaker that is placed on the existing speakers of your home cinema system as "Dolby Atmos Enabled Speaker". Thanks to its universal design with moderate dimensions, it finds its place on stand or compact loudspeakers. Alternatively, the AR 4 can also be used as stereo or effect speakers, either individually or in an existing home cinema system, hanging on the wall. The integrated wall bracket allows unproblematic attachment to the wall. For the incomparably good Canton sound, we use only the best technical components in the AR 4 and use titanium as a membrane material for our 154 mm dead medium-deep sneaker and fabric for the 25 mm tweeter with transmission front windscreen. This achieves an excellent radiation behaviour. Silver-plated screw clamps with one holder for cable cross-sections of up to 10 mm2 offer maximum conductivity and guarantee long-term stable contact with the amplifier.
The optically and technically attractive AR 4 2-way speaker can be combined with the speakers of our GLE series to your heart's content and thus build up a personally tailored home cinema system. For example, take our GLE 90 as your main speaker, combine the matching GLE 50 Center and the GLE 30 as a surround speaker. Placed on the front and surround speakers, four AR 4 provide impressive 3D sound effects in film like music. The ideally harmonized subwoofer Power Sub 12, which provides for rustic bass in the home cinema, is provided by the active bass part. Connect your speakers to our smart electronics Smart Amp 5.1 electronic module and get into the wireless world of music streaming. It effortlessly replaces a classic AV receiver and offers an unparalleled variety of combinations and connections – with the best sound and minimum dimensions.
Specificatii:
Type Dolby Atmos® Multifunction-speaker Engineering Principle Nom. /Music power handling Frequency response Crossover frequency Woofer Tweeter Nominal Impedance 4…8 ohms Special Features Dimensions (WxHxD) Weight Carton Content Packaging Weight including packaging
2-way closed
60 / 100 watts
50…30.000 Hz
3.200 Hz
1 x 154 mm (6,1"), titanium (Wavesurround)
1 x 25 mm (1"), aluminium-manganese
Dolby Atmos® technology
Reflection speaker for floorstanding- and compact speakers
Integrated wallmount for use as a Stereo Sound effect speaker
Removable fabric cover
17 x 26 x 14.5 cm
6.7" x 10.2" x 5.7"
3.6 kg
Canton AR 4 (Pair)
Equipment feet
Fabric grill
Manual
25 x 50,5 x 38,5 cm (9,8" x 19,9" x 15,2")
7,8 kg
