Garantie: 60 luni
Flat and discreet
Just ten centimeters deep is our largest wall speaker from the Atelier family. The flagship Atelier 1100 can be operated inconspicuously on or in the wall due to its flat housing and convinces from there with its balanced sound image. The InWall / OnWall speaker delivers pure dynamics through its two 174 mm woofer drivers with aluminum cones. Powerful magnet drives in combination with the suspension in the multiple folded wave surrounds guarantee a deep bass reproduction, which is effectively supported by the two 174 mm passive membranes. Our proven 25 mm tweeter with aluminum manganese dome complements the dynamic play with finely resolved highs. The wall brackets integrated in the housing makes mounting on the wall particularly easy. With the included installation kit, the Canton Atelier 1100 can alternatively be integrated into the wall. The speakers then stand out from the wall by just two centimeters - it hardly gets any flatter or more discreet than that.

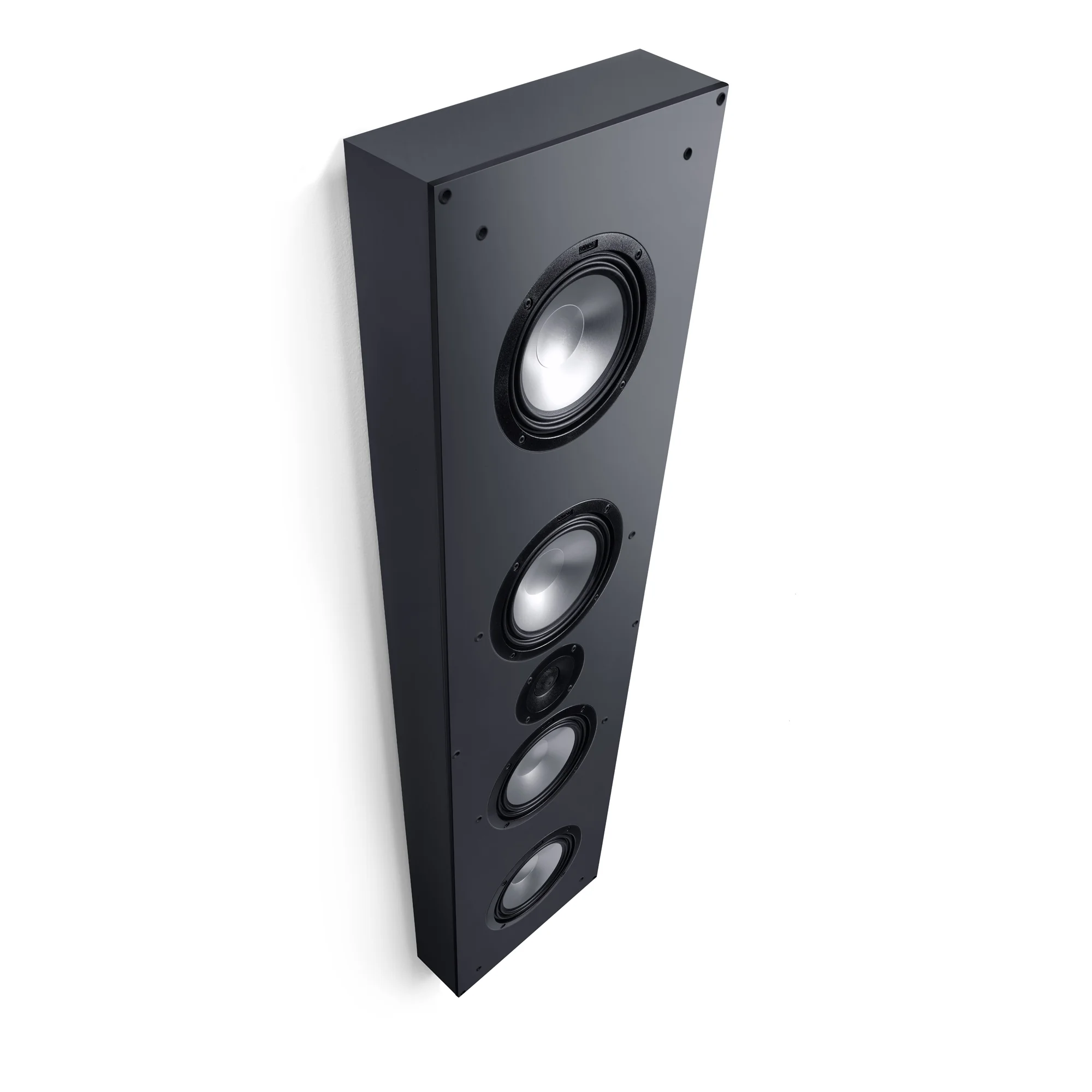

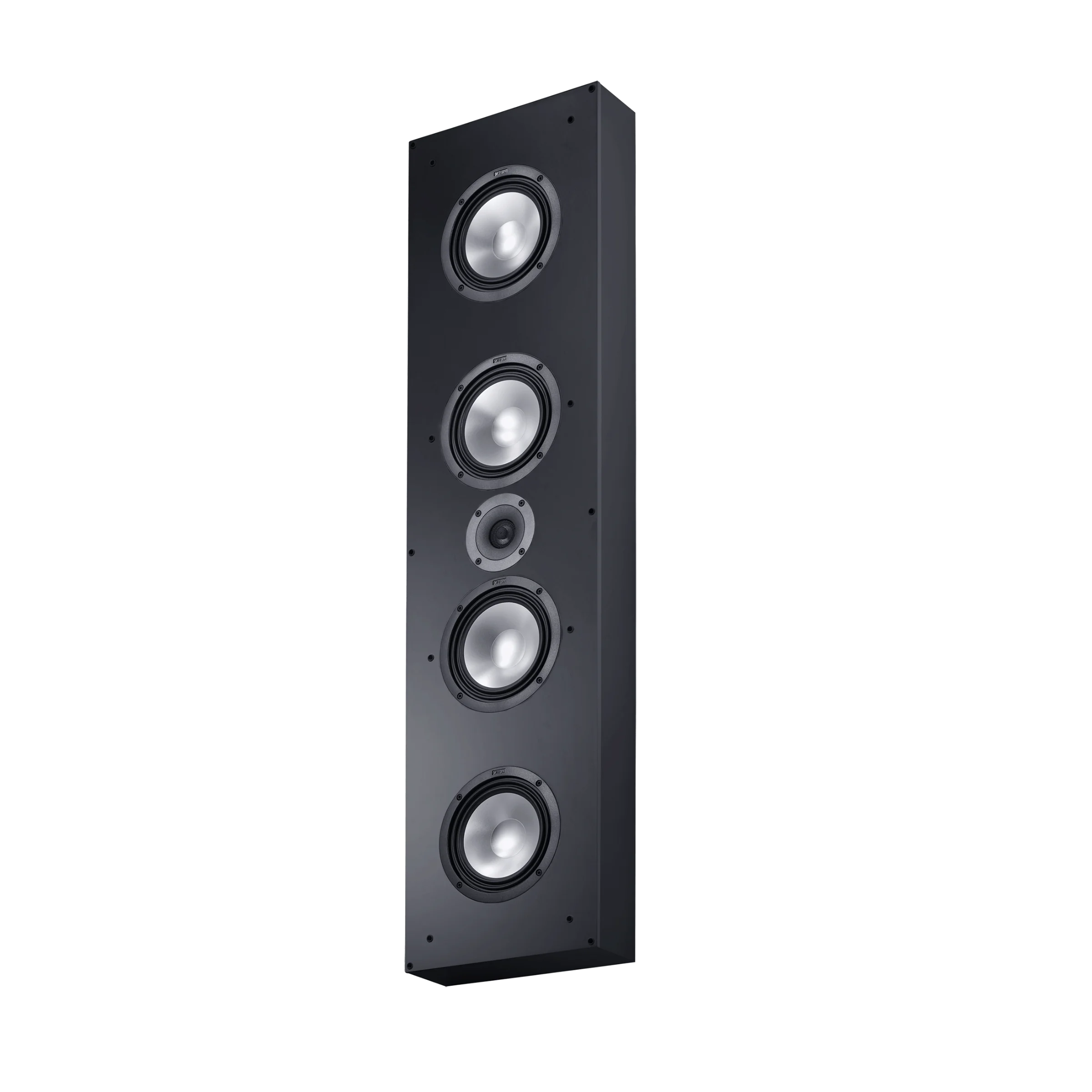

Atelier_1100_Beauty_schwarz_2017 Superbly equipped The Atelier 1100 is a 3-way system in D'Appolito design. In the center of the flat wall speaker, our well-proven 25 mm dome tweeter with aluminum-manganese diaphragm performs its duties from 3,000 hertz. The front panel with integrated wave guide ensures optimum sound dispersion. Very close to the tweeter, the two 174 mm bass-midrange drivers with aluminum cones move, creating a very orderly and spatial sound image with precise staggering at the listening position. Two equally sized passive aluminum cones enable the powerful and tremendously deep bass reproduction from 32 Hertz. A satin-finished frame encloses the sound-neutral fabric cover. It hides the technology and emphasizes the elegant appearance of the flat wall speaker Atelier 1100.

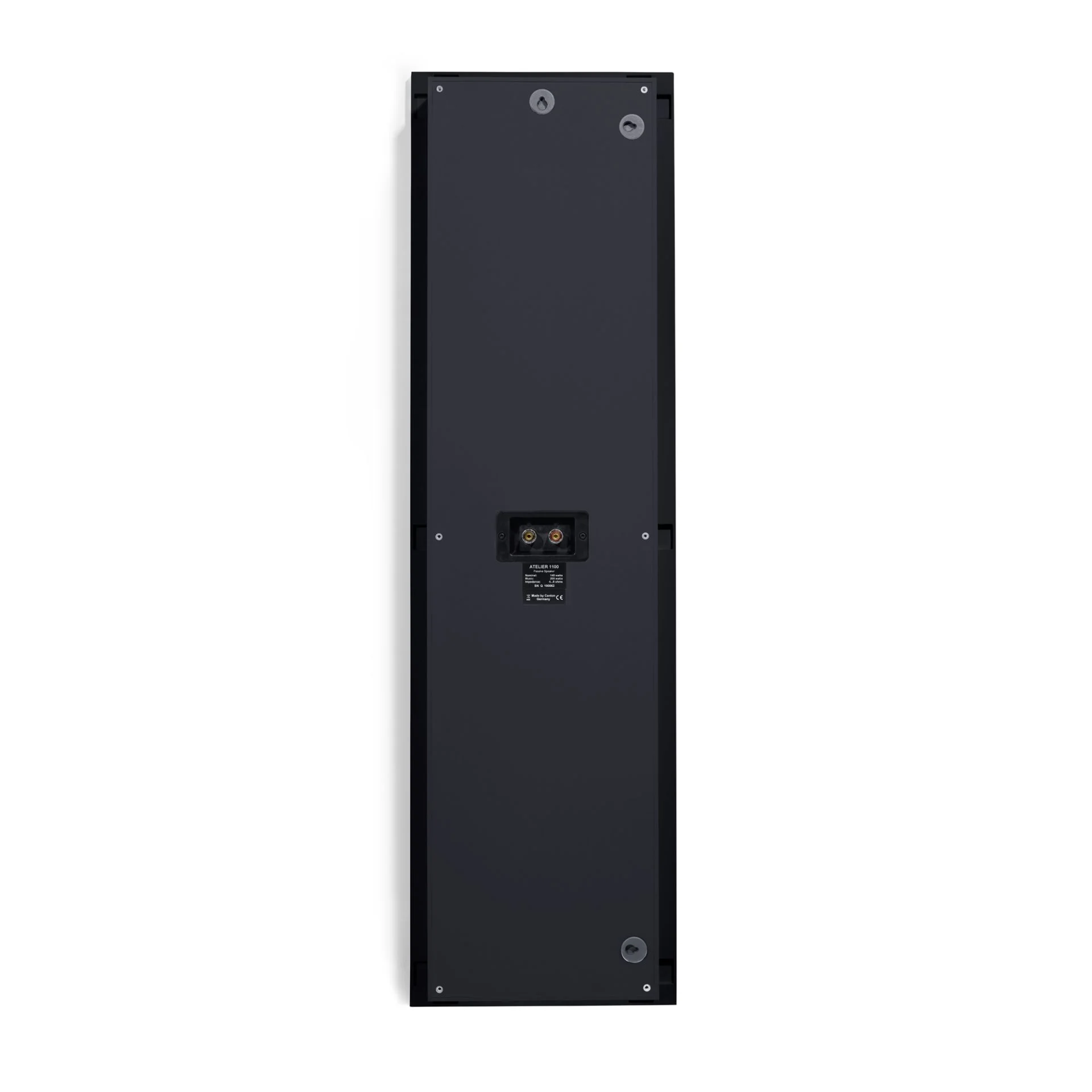

The Atelier 1100 can be mounted horizontally or vertically with the integrated wall brackets, making it equally suitable for use as a stereo or center speaker. A solid connection terminal on the back ensures a contact-safe connection of the speaker cable. Due to the integrated installation of the insulated terminal, mounting close to the wall is possible. A mounting kit for the InWall installation we supply immediately, so that you can start immediately after the purchase in your home. An ideal playing partner for the Atelier 1100 is our Canton Smart Amp 5.1, which drives the flat wall speakers to sonic excellence.
Specificatii:
Tip Difuzor central / de instalare Principiul ingineriei Nom. / Manipularea puterii muzicale Răspunsul în frecvență Frecvența de încrucișare Woofer Tweeter Impedanță nominală 4 ... 8 ohmi Caracteristici speciale Garanție Dimensiuni (WxHxD) Deschiderea instalării 27,5 x 110 cm (10,8 "x 43,3") Adâncimea de instalare 8,2 cm (3,2 ") Greutate Conținutul cutiei Ambalare Greutatea inclusiv ambalajul
Link producator :
https://www.canton.de/en/products/type/built-in-speakers/atelier-1100/03808
Sistem bass reflex cu 3 căi cu membrană pasivă
140/200 wați
32 ... 40.000 Hz
3.000 Hz
2 x 174 mm (6,8 "), aluminiu (Wave-surround)
2 x 174 mm (6,8"), aluminiu (pasiv)
1 x 25 mm (1 "), aluminiu-mangan
Sistem de tweeter din aluminiu-mangan
Sisteme de conuri cu membrane din aluminiu
Design subțire al dulapului
Suport integrat de perete pentru instalare OnWall
Set de montare pentru instalare InWall
Adâncime: <10 cm (<3.9 ")
Cadru decorativ
detașabil Capac de țesătură detașabil
5 ani
32,5 x 115 x 9,6 cm (12,8 "x 45,3" x 3,8 ")
13,1 kg
Set de montare Atelier 1100
18 x 122 x 40,5 cm (7,1 "x 48" x 16 ")
16 kg
