The specialist for the mids
The Atelier 750 center speaker is less than ten centimeters thin, making it absolutely inconspicuous when hanging on a wall in the living room. Alternatively, it is possible to integrate the Atelier 750 into a wall using the installation kit supplied: this means that it stands out from the wall by just two centimeters. from the wall. Despite its discreet appearance, the wall speaker offers a powerful sound image. The high-quality two-way system with 174 mm speaker chassis and 25 mm tweeter is supported by a 174 mm passive cone. In combination with our patented Wave surrounds, the Atelier 750 delivers plenty of dynamics and rich bass with impressive low end.

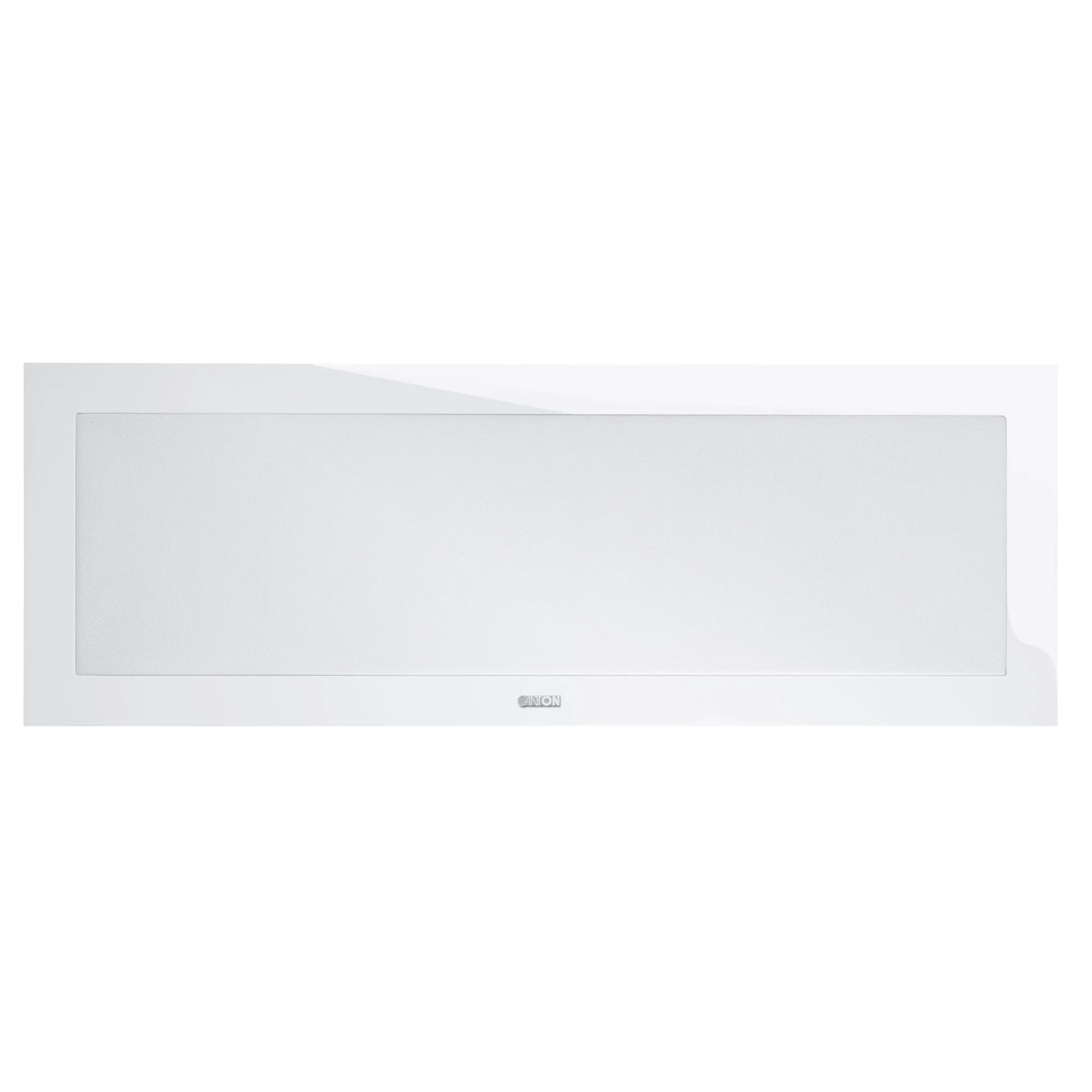

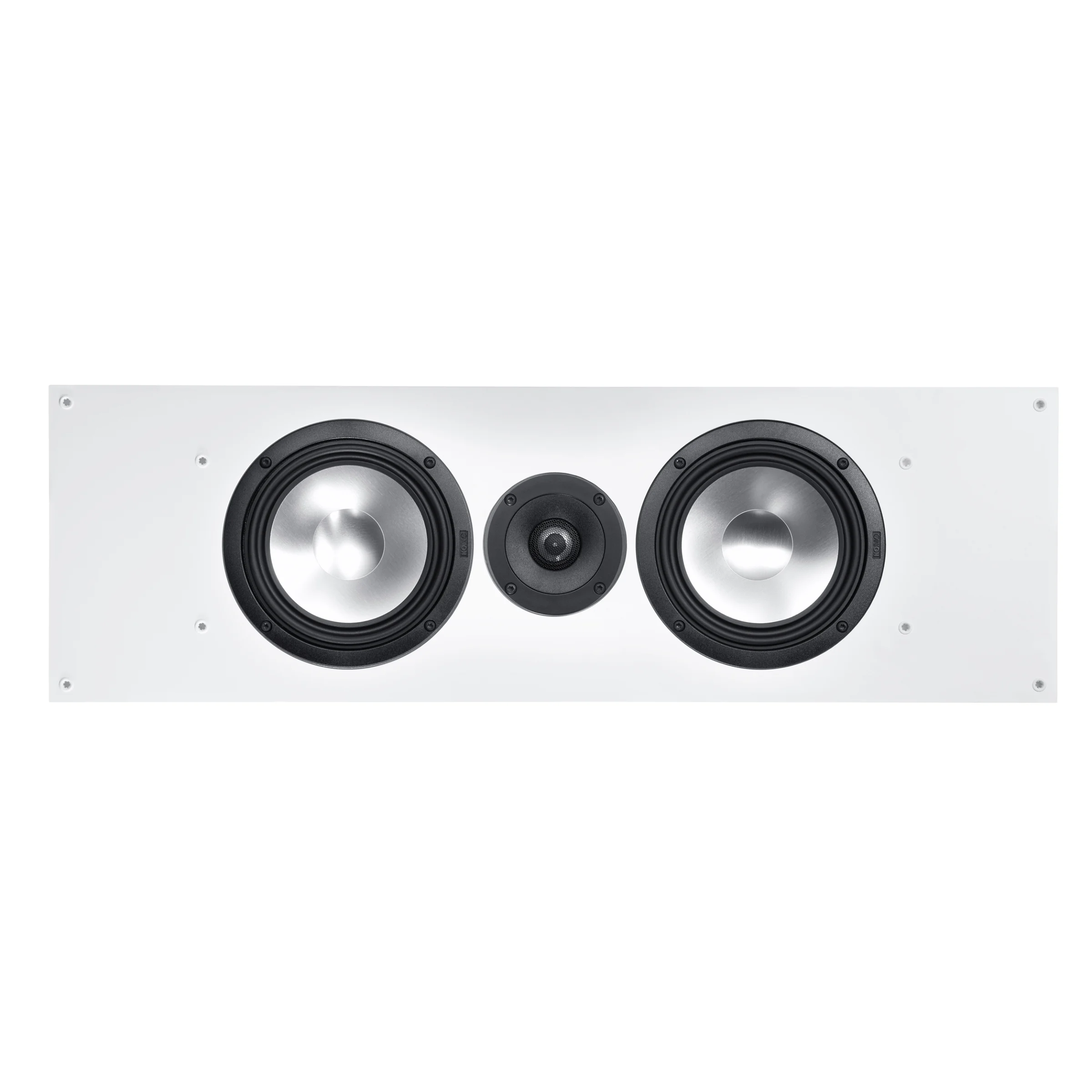

The center speaker Atelier 750 is an extremely flat two-way system with a potent woofer duo. In the center of the wall-mounted speaker, our sophisticated 25 mm tweeter system with aluminum-manganese diaphragm performs its duties from 3,000 hertz. The front panel with integrated wave guide ensures optimal sound dispersion. Very close to the tweeter system are the two 174 mm drivers with aluminum cones. Deep bass, down to 35 Hertz, is achieved by using the aluminum passive cone. A satin-finished frame encloses the sound-neutral fabric cover. It hides the technology and emphasizes the elegant appearance of the flat wall speaker Atelier 700.

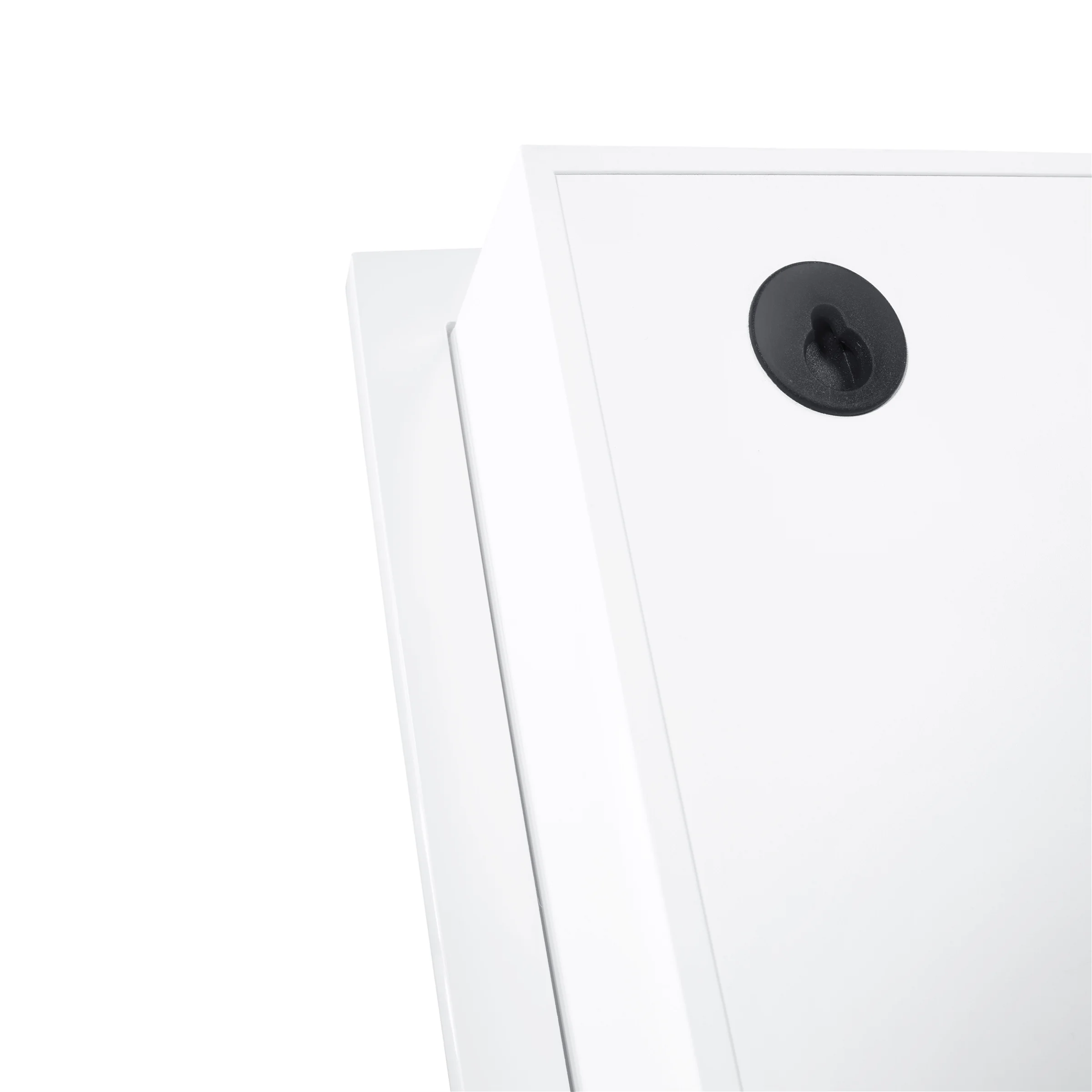

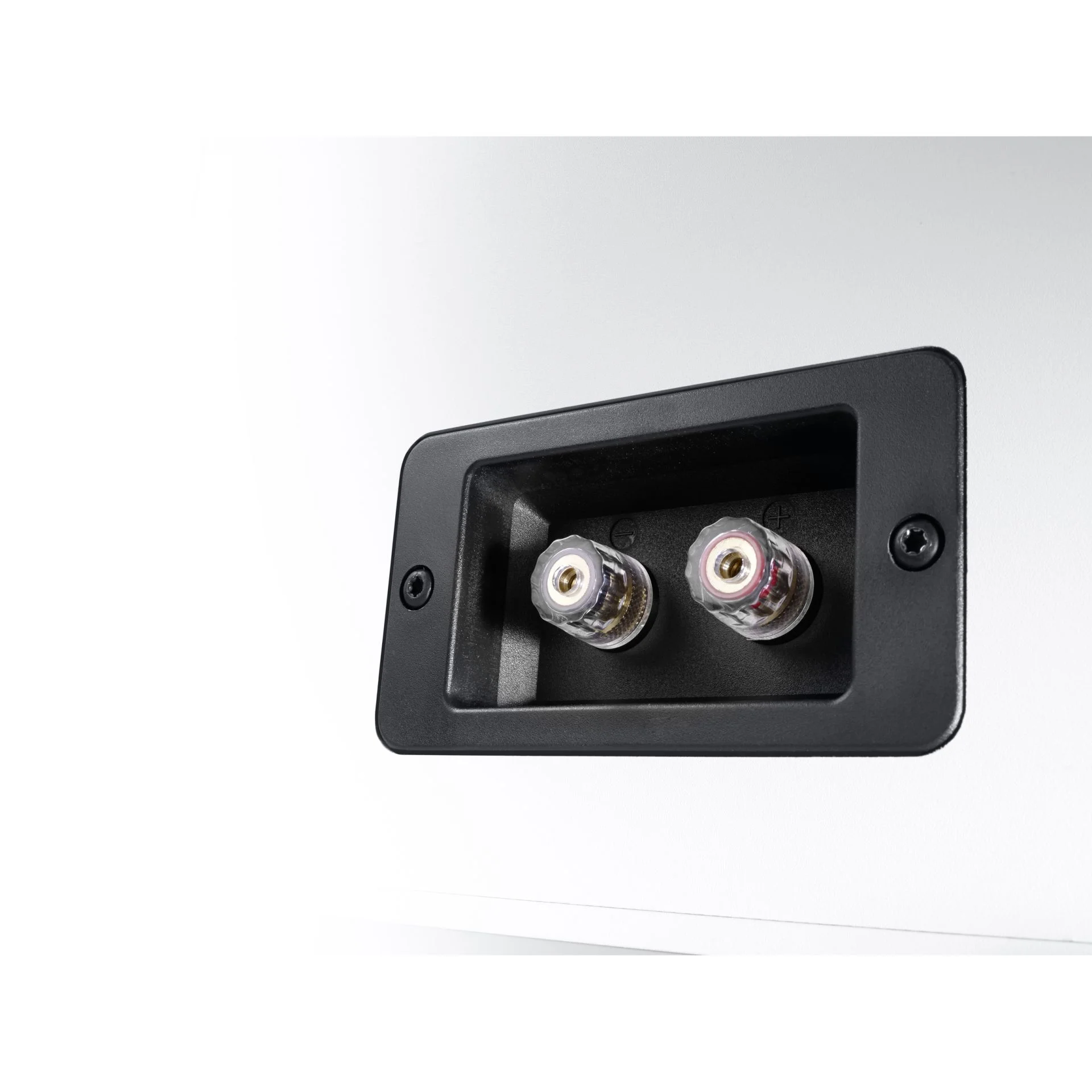

The Atelier 750 center speaker can be quickly and easily mounted horizontally with the integrated wall brackets. We also supply a mounting kit for the InWall installation, so that you can alternatively integrate the center in a wall and immediately get started with the installation in your home after the purchase. The solid connection terminal on the back ensures a contact-safe connection of the speaker cable. Due to the integrated installation of the insulated terminal, mounting close to the wall is possible. An ideal playing partner for the Atelier 750 is our Canton Smart Amp 5.1, which drives the flat InWall /OnWall center speaker to sonic excellence.
Specificatii:
Type Center /Installation speaker Engineering Principle Nom. /Music power handling Frequency response Crossover frequency Woofer Tweeter Nominal Impedance 4...8 ohms Special Features Dimensions (WxHxD) Installation opening 22.4 x 70.4 cm (8.8'' x 27.7'') Installation depth 8.2 cm (3.2'') Weight Packaging Weight including packaging
Link producator:
https://www.canton.de/en/products/type/built-in-speakers/atelier-750/03859
2-way Bass reflex system with passive membrane
100 / 160 watts
35...40.000 Hz
3.000 Hz
2 x 174 mm (6,8''), Aluminum (Wave surround)
1 x 25 mm (1''), aluminum-manganese
integrated wallmount
mounting angle inclusive Fabric cover
75 x 26 x 9.8 cm (29.5'' x 10.2'' x 3.9'')
6.9 kg
18 x 82 x 35 cm (7,1" x 32,3" x 13,8")
9,2 kg
