Garantie: 24 luni
Durata de livrare: intreaba un consultant
XDA-AMP5400RK – a fost conceput ca un companion a lui Yamaha XDA-QS5400RK fiind o cale da e aduce o acoperire audio mai buna si / sau putere suplimentara intr-un sistem multi camerra integrat. Este de asemenea o solutie pentru extinderea receiverelor Yamaha care ofera iesiri pre tip Zone.
Specificatii:
Audio Specifications
Channel
8 channel (2 channel x 4)
Minimum Speaker load Capability
4 ohm
BTL Connection
Yes

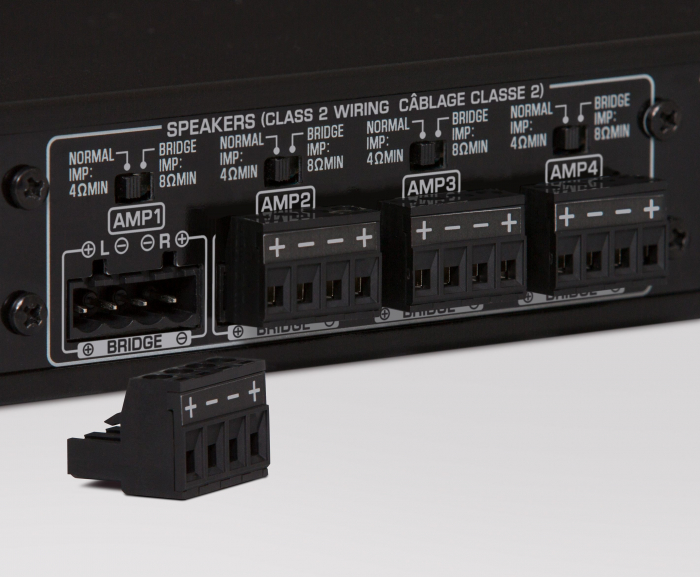

Speaker Output Terminal
4 (Euroblock)
Audio Input Terminal
RCA: 4
Audio Output Terminal
RCA (2-ch through out): 4
Trigger In / Out
4 / 4
Remote In / Out
1 / 1
Rated Output Power (1 kHz, 0.9% THD, 2ch driven)
Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
Rated Output Power (1 kHz, 0.9% THD, 1ch driven)
Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)
Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)
Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)
Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
Maximum Effective Output Power
[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm):130 / 65 W, Bridge (8 ohm): 260 W
Total Harmonic Distortion
[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%
Frequency Response
[1 kHz + 0 / -3 dB] SP OUT AUX IN: 5 Hz-40 kHz
Signal to Noise Ratio
[SP OUT AUX IN] 108 dB
Maximum Input Signal
[PRE OUT L / R, 0.9% THD] 1 V
Gain
[SP OUT 1 V Input] 25.8 dB
Input Sensitivity
[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V
General
Power Consumption
130 W, [All Zone On] No Signal Condition: 32 W, [All Zone Off] Audio Sense On: 14.8 W
Standby Power Consumption
Audio Sense Disable: 0.3 W, Audio Sense Enable / Mode Standby: 0.5W
Power Management (Auto Power Standby)
Yes (On / Off)
Dimension (W × H × D) mm
[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
Weight
6.0 kg; 13.2 lbs.
