Garantie: 24 luni
Specificatii:
Audio Specifications

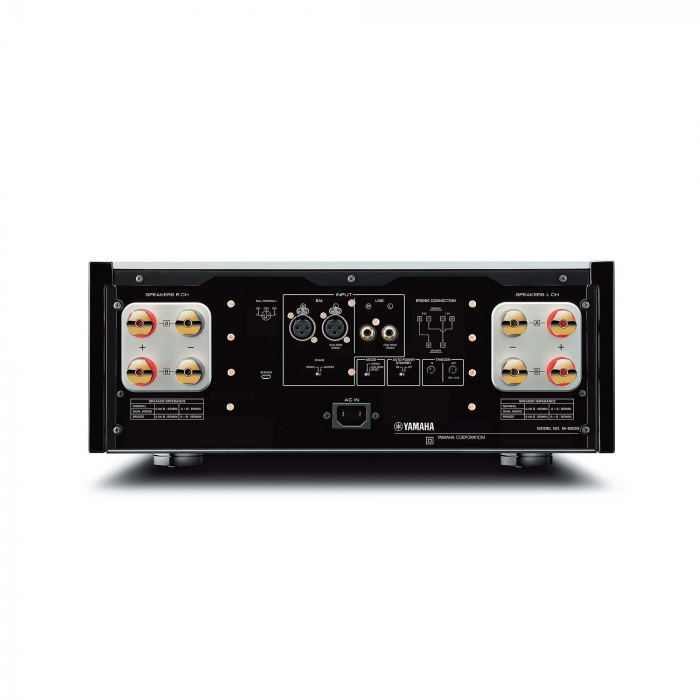

Input Terminal
RCA: 1, BAL: 1, TRIGGER IN: 1
Output Terminal
TRIGGER OUT: 1
Rated Output Power
100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven)
Dynamic Power Per Channel
[IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm)
Dynamic Headroom
0.97 dB (8 ohm)
Maximum Output Power
220 W + 220 W (4 ohm, 1 kHz, 0.7% THD)
IEC Output Power
125 W + 125 W (8 ohm, 1 kHz, 0.02% THD)
Maximum Effective Output Power
[JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm)
Power Bandwidth
10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W)
Damping Factor
300 or higher (8 ohm, 1 kHz)
Input Sensitivity / Input Impedance
(BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion]
Maximum Input Signal Voltage
(BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD]
Frequency Response
+0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz)
Total Harmonic Distortion Plus Noise
2ch driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms)
Channnel Separation
90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated)
Signal-to-Noise Ratio
[IHF-A network, Input 1 kohm shorted] 110 dB
Residual Noise
[IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms
Meter Class
The 2.5th class
General
Power Consumption
400 W
Standby Power Consumption
Off Mode: 0.1 W, Standby Mode: 0.2 W
Maximum Power Consumption
800 W
Power Management (Auto Power Standby)
Yes
Dimension (W×H×D)
435 x 180 x 464 mm; 17-1/8” x 7-1/8” x 18-1/4”
Weight
26.9 kg; 59.3 lbs.
