Switch Melco S10

The S10 is Melco’s flagship data switch and comprises a ‘head’ unit and a power unit, separating the sensitive data-carrying areas of the design from the power supply. The two-box approach echoes that of the N10/2 library, and offers the least compromise when it comes to ultimate sound quality.


The S10’s head unit is based on a heavily upgraded S100 network switch, and benefits from a greatly improved power management section, better aluminium casework and a rigid-steel screened chassis.

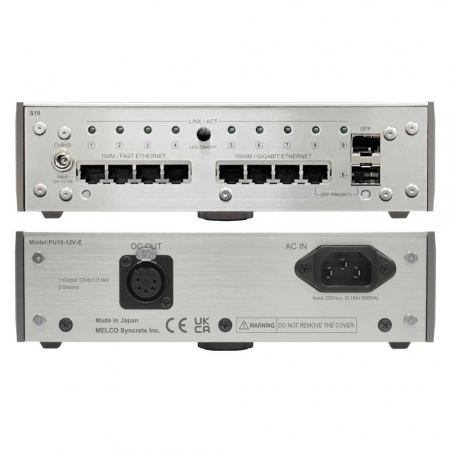

 The rear panel connections include different-speed RJ45 Ethernet ports: 4x 100 MB and 4x 1 GB, plus 2x 1 GB SFP.


Features:


• Two SFP ports allow for the connection of compatible optical fibre components, such as Lumin and Linn
•  A 1.5 MB of buffer capability to deal with erratic external connectivity, for a stable and resilient data stream
• Audiophile techniques in the power supply with a bank of audio-grade capacitors to ensure the lowest noise environment
• A rigid steel chassis with full aluminium casework

Connectivity


Ports
4 x 100Mb/E RJ45
4 x 1000Mb/E RJ45
2 x Fibre SFP/LC


Power
Dedicated 12 V toroidal separate power supply


Size 215 x 61 x 269 mm (W H L) x 2

Weight 13 kg


Model name
Silver : S10P-E    (Head unit:S10-X      Power unit:PU10-12V-E (AC230V) / PU10-12V-EA (AC120V)　DC cable:OP-S10)

Black : S10PB-E  (Head unit:S10-XB   Power unit:PU10-12VB-E (AC230V) / PU10-12VB-EA (AC120V)　DC cable:OP-S10)
